Description

Module features:
1. Weight:3g
2. Working voltage:3.3V-5V
3. Size:3.2cm x 1.4cm
4. Output form:Digital switching output (0 and 1)
5. It can detect flames or light sources with wavelengths ranging from 760 nanometers to 1100 nanometers. The lighter tests the flame at a distance of 80cm, and the larger the flame, the farther the test distance is
6. The detection angle is around 60 degrees, which is particularly sensitive to the flame spectrum
7. Comparator output, clean signal, good waveform, strong driving ability, over 15mA
8. Equipped with adjustable precision potentiometer to adjust sensitivity
8. Using a wide voltage LM393 comparator

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

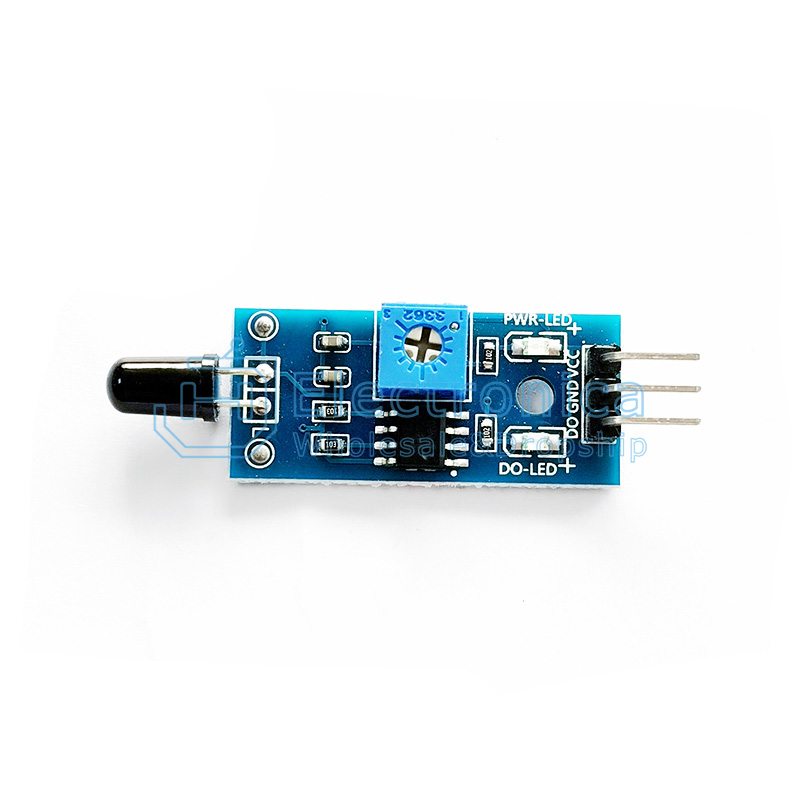

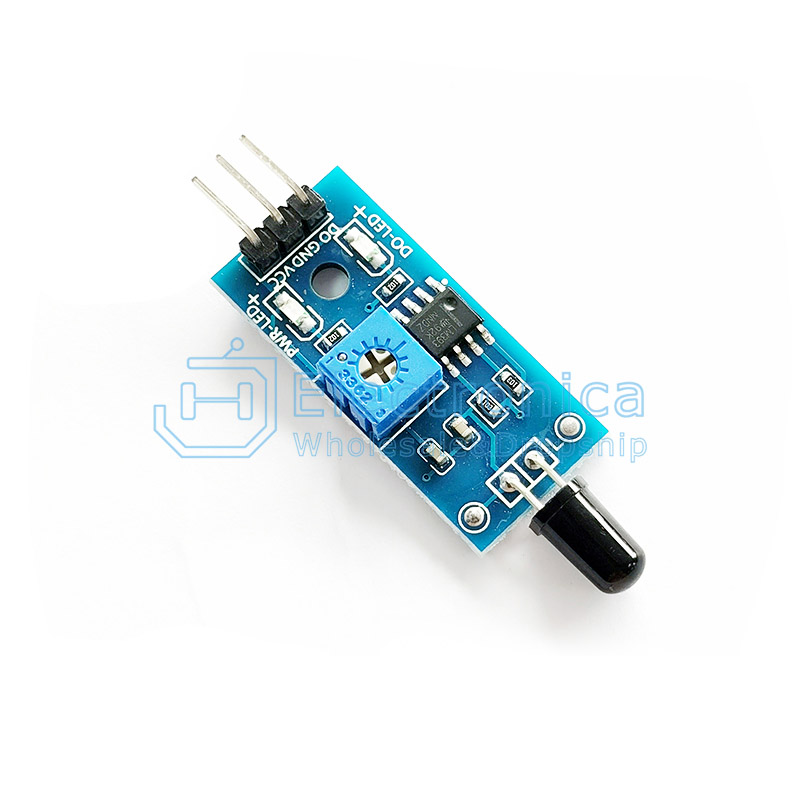

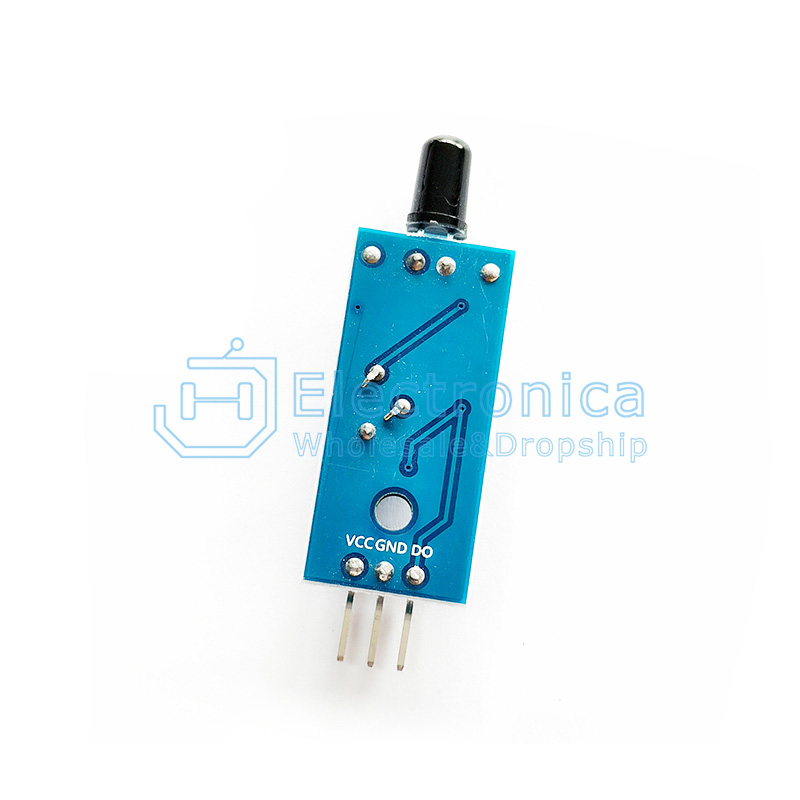

3P Flame Detection Sensor

SKU : YXC733 Brand : JH Stock

Price : $ 0.19

100 +: $0.19500 +: $0.191000 +: $0.19

Quantity :

- +

ADD TO CART
