Description

Operating Voltage:DC 3.3V-5V
Output Voltage:DC 0-1V
Test accuracy:±1UVINDEX
Response wavelength:200nm-370nm
Operating Temperature:-20~85℃
Response Time:0.5 seconds
UV index Range:0-10
Working current:typical value 0.06mA,maximum value 0.1mA
Current Consumption:5mA
Size:19.8×15mm

Wiring Method:
VCC - is the positive input port of the power supply, connected to a voltage of 3.3V-5V
GND-GND is the negative input port of the power supply
OUT-OUT is an analog signal output port that connects to the I/O port of the MCU

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

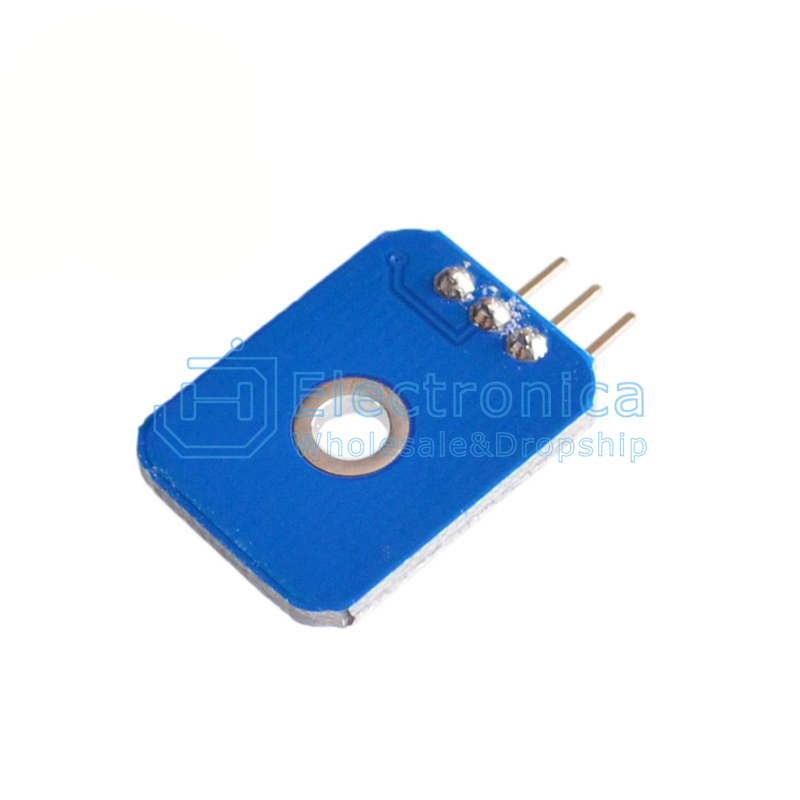

Ultra Violet Light Sensor

SKU : YXC1001 Brand :

Price : $ 1.97

100 +: $1.97500 +: $1.971000 +: $1.97

Quantity :

- +

ADD TO CART
