Description

Voltage
Measurement range:80-260V
Resolution:0.1V
Measurement accuracy:0.5%
Current
Measurement range:0-10A (model PZEM-004T-10A); 0-100A (model PZEM-004T-100A)
Starting current:0.01A (model PZEM-004T-10A); 0.02A (model PZEM-004T-100A)
Resolution:0.001A
Measurement accuracy:0.5%
Active Power
Measurement range:0-2.3kW (model PZEM-004T-10A); 0-23kW (model PZEM-004T-100A)
Starting power:0.4W
Resolution:0.1W
Power Factor
Measurement range:0.00~1.00
Resolution:0.01
Measurement accuracy:1%
Frequency
Measurement range:45Hz~65Hz
Resolution:0.1Hz
Measurement accuracy:0.5%
Active Electrical Energy
Measurement range:0-9999.99kWh
Resolution:1Wh
Measurement accuracy:0.5%

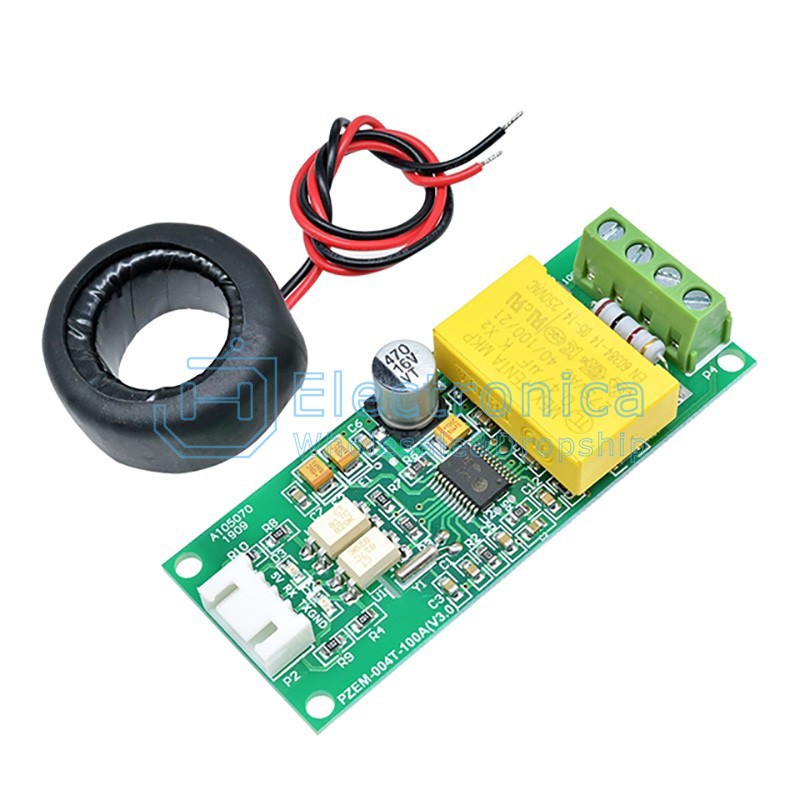

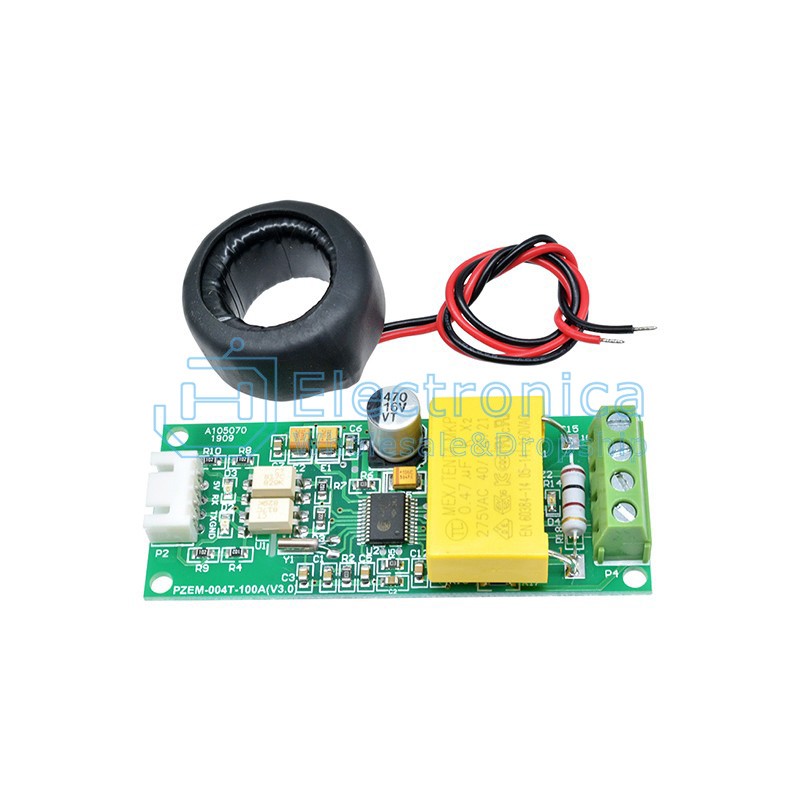

This module is mainly used for measuring AC voltage, current, active power, frequency, power factor, and active energy. The module does not have display function, and the data is read through the TTL interface. PZEMI-004T-100A: 100A range (external transformer)

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

AC Multifunctional Current Testing Module

SKU : YXC1078 Brand :

Price : $ 5.97~7.51

100 +: $5.97~7.51500 +: $5.97~7.511000 +: $5.97~7.51

style：

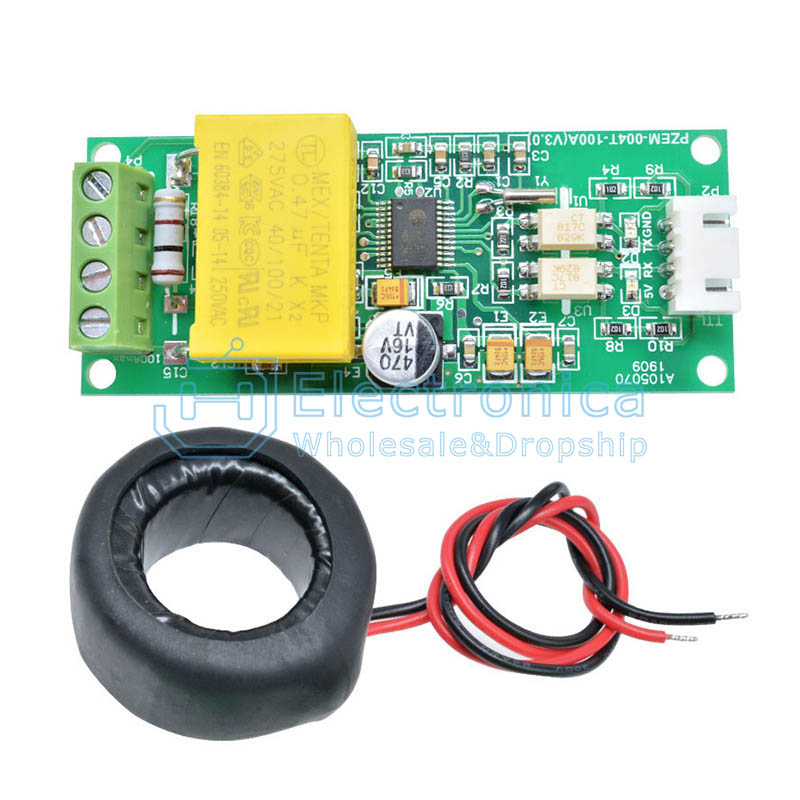

Closed CT 100A

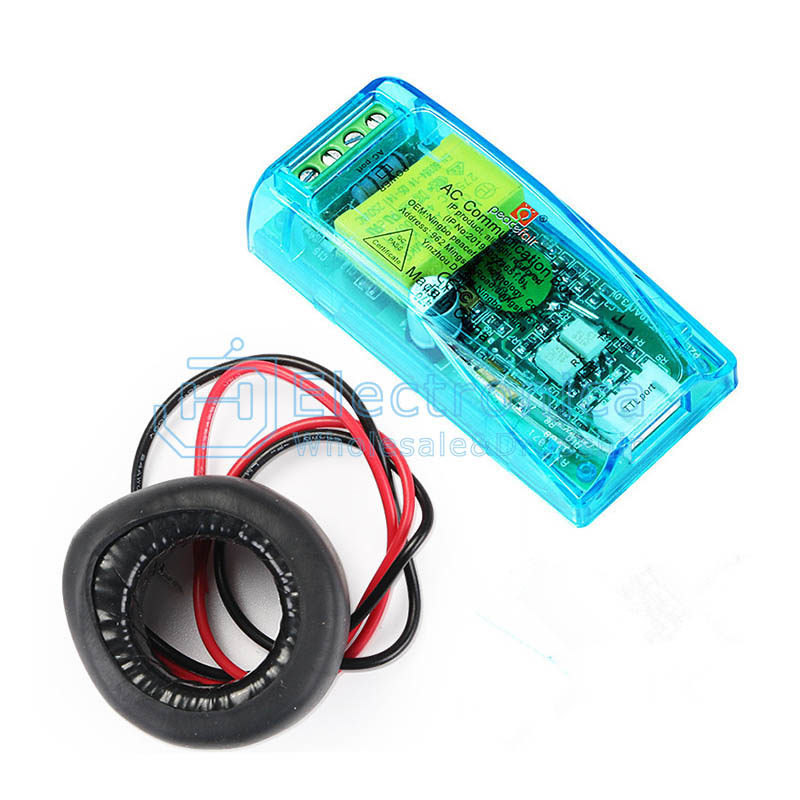

Closed CT 100A with Case

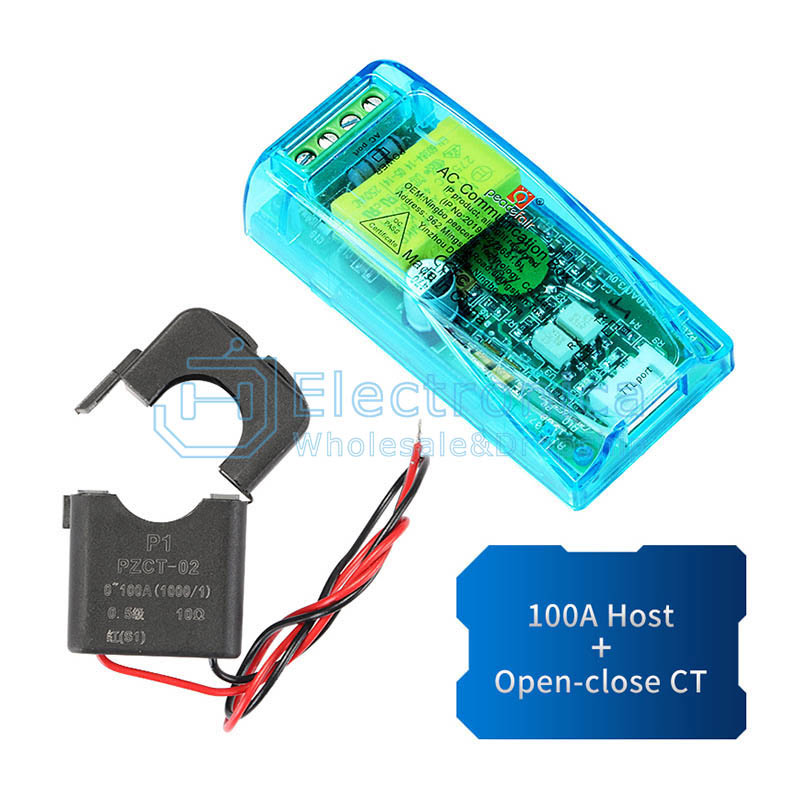

Open and Close Type CT 100A with Case

Quantity :

- +

ADD TO CART
