Description
Speed: 250 rpm/min
Protection level: IP54
Insulation resistance: 500MΩ @500VDC
CE certification: Yes
Working life: ≤5million rpm
Bearings: High precision ball bearings
Mechanical vibration: MIL-SID-810E
Environmental certification: RoHS certification
Electrical noise: 10mΩ @ 6VDC,50mA,5Rpm
Number of channel: 1-36
Rated current: 2A
Rated voltage: 220V
Contact materials: Noble metal
Shell material: Engineering plastic
Torque: 0.01NM
Working temperature: -40~+80℃
Relative humidity: 60%
Wire length: 250mm
Product Feature:
Adopting gold gold contact points, ensuring stability and service life, mainly used in civil and commercial fields
Smooth operation, compact structure, low torque, compatible with data bus protocol
Colored wires are used for stator and rotor wires to simplify circuit connections
The conductive ring adopts a 90 degree V-groove design, which has smooth rotation, low torque, and low electrical noise
The overall structure of the product, advanced fiber brush technology, supports mixed power and signal transmission
Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.
We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

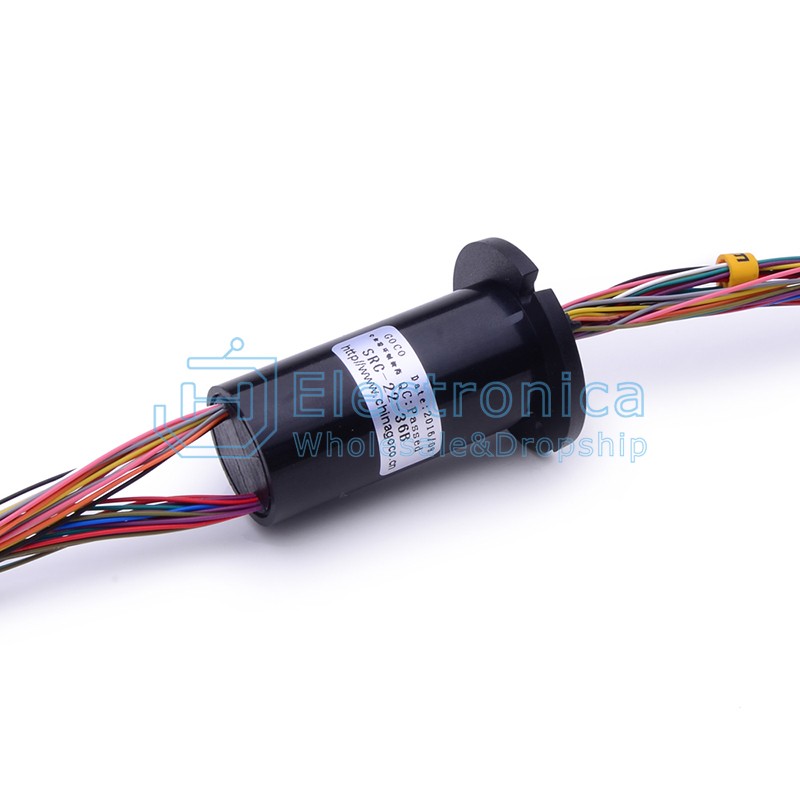

6/12/18/24/36 Core 2A/220V Hat-type Conductive Slip Ring
SKU : YXS1709 Brand :
Style：

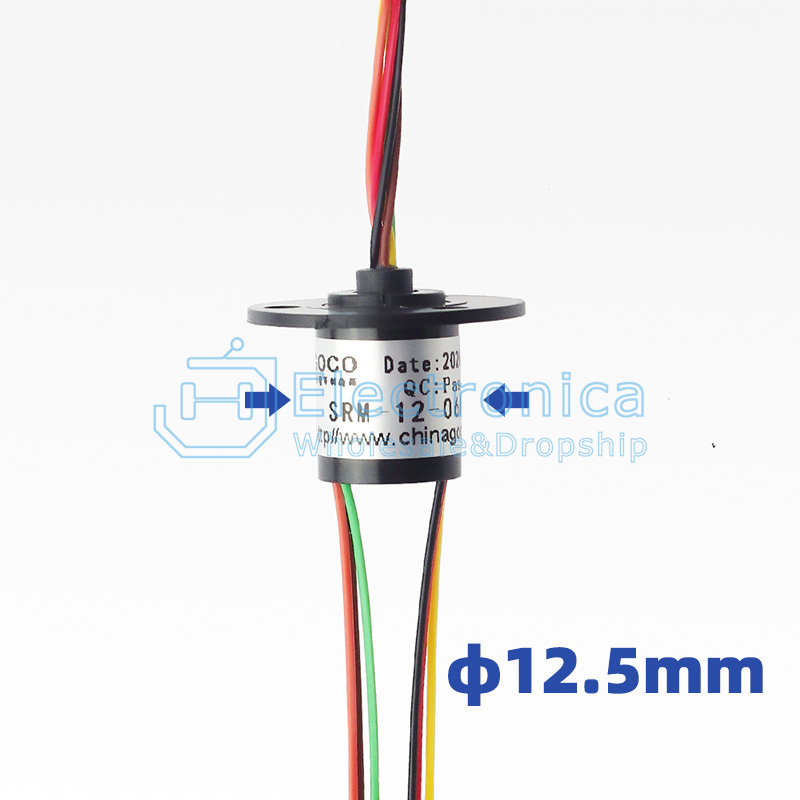

6-core outer diameter 12.5mm

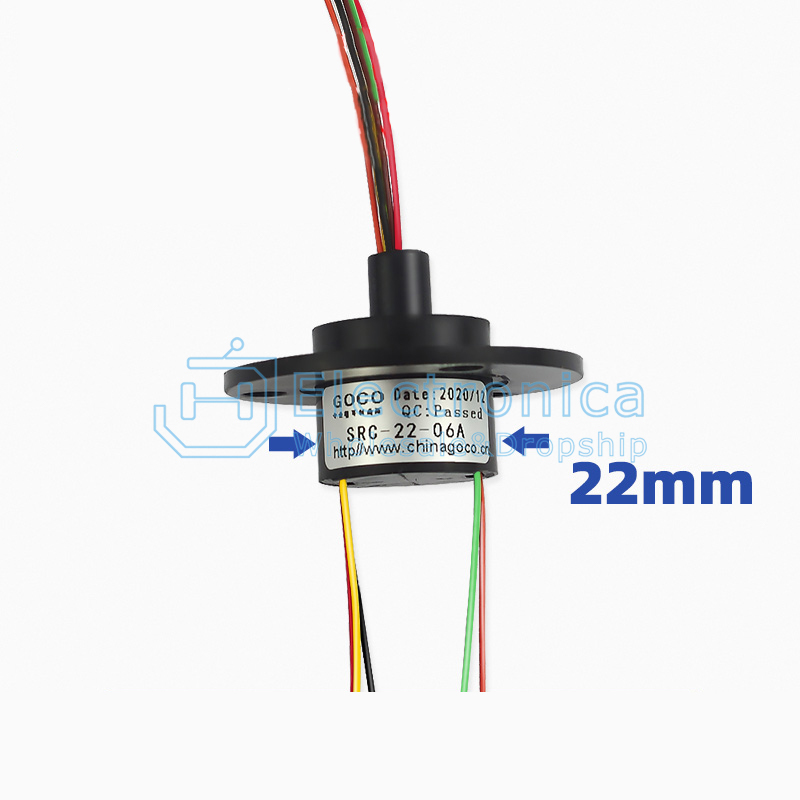

6-core outer diameter 22mm

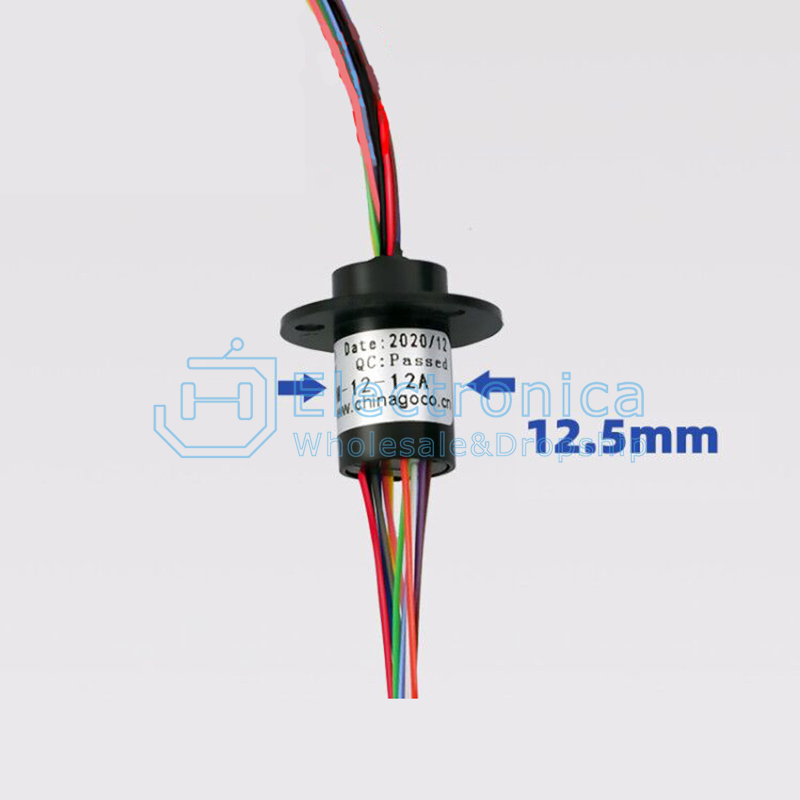

12 core outer diameter 12.5mm

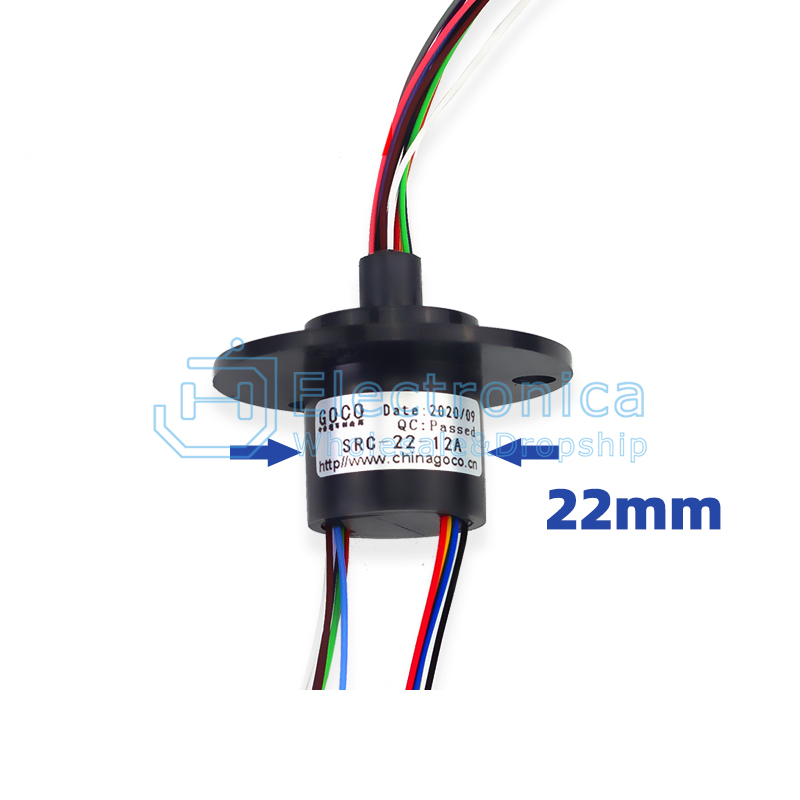

12 core outer diameter 22mm

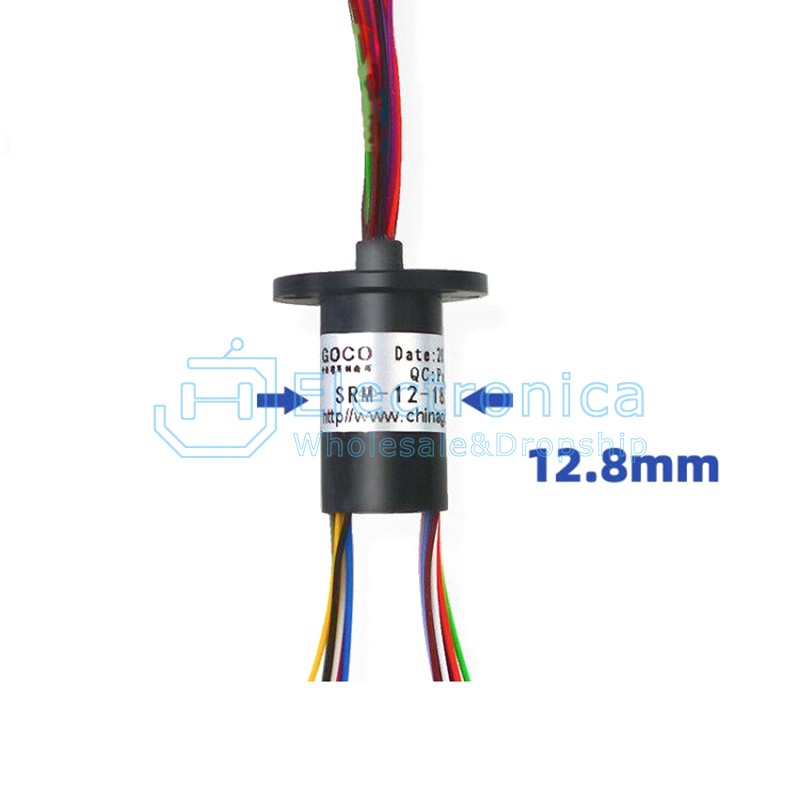

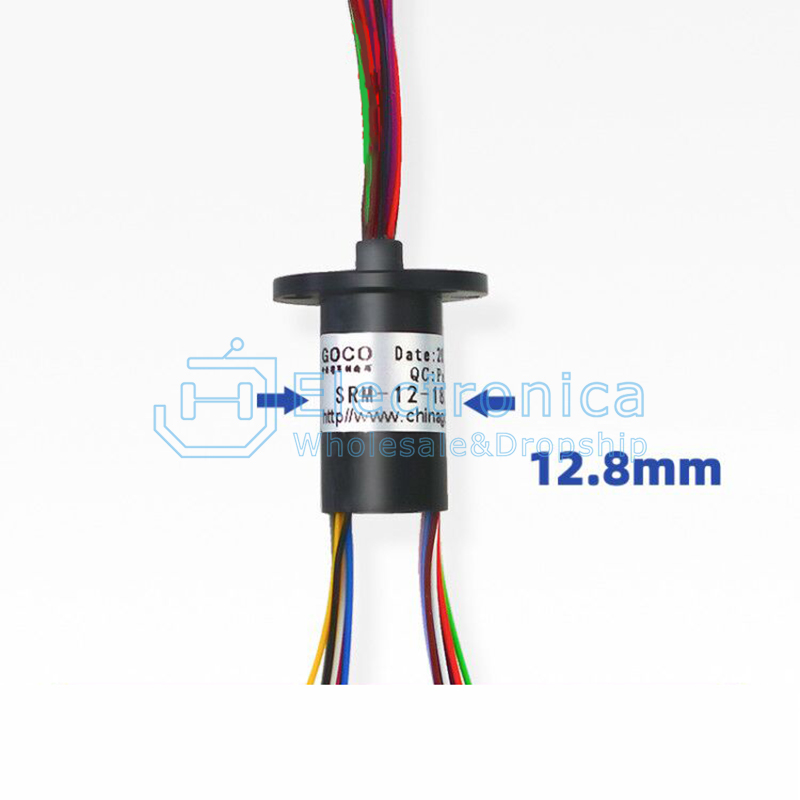

18 core outer diameter 12.8mm

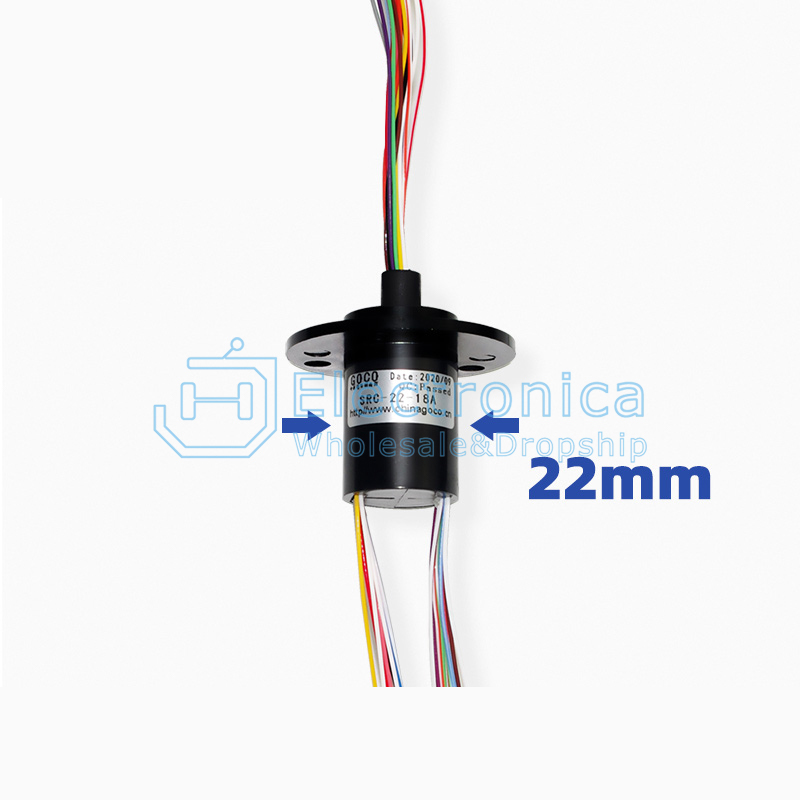

18 core outer diameter 22mm- 24 core outer diameter 15.5mm
24 core outer diameter 22mm- 36 core outer diameter 22mm
