Description

Working voltage:DC 1.5V-12V
Reference speed:

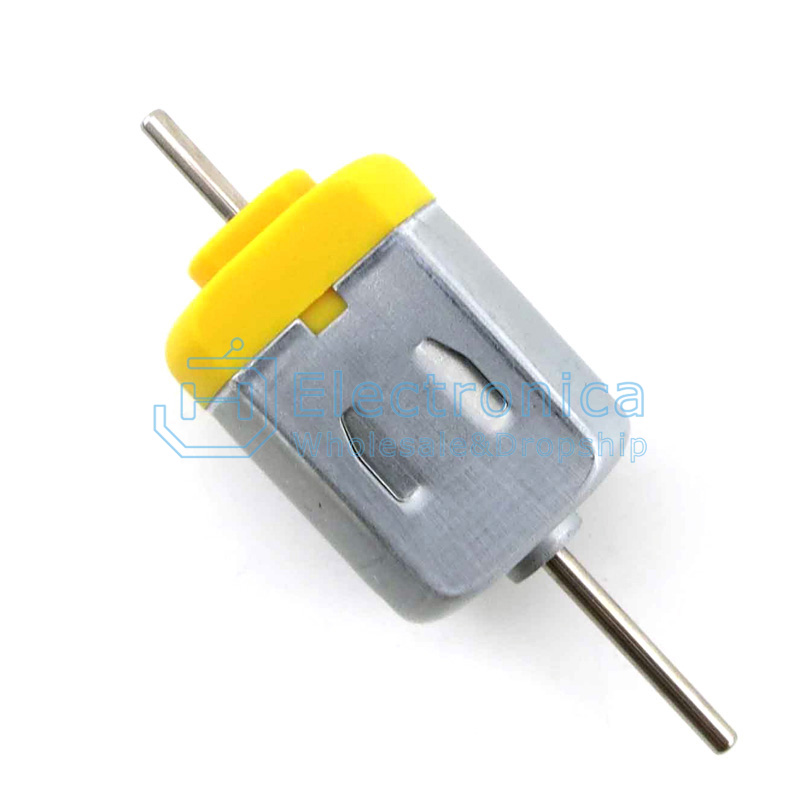

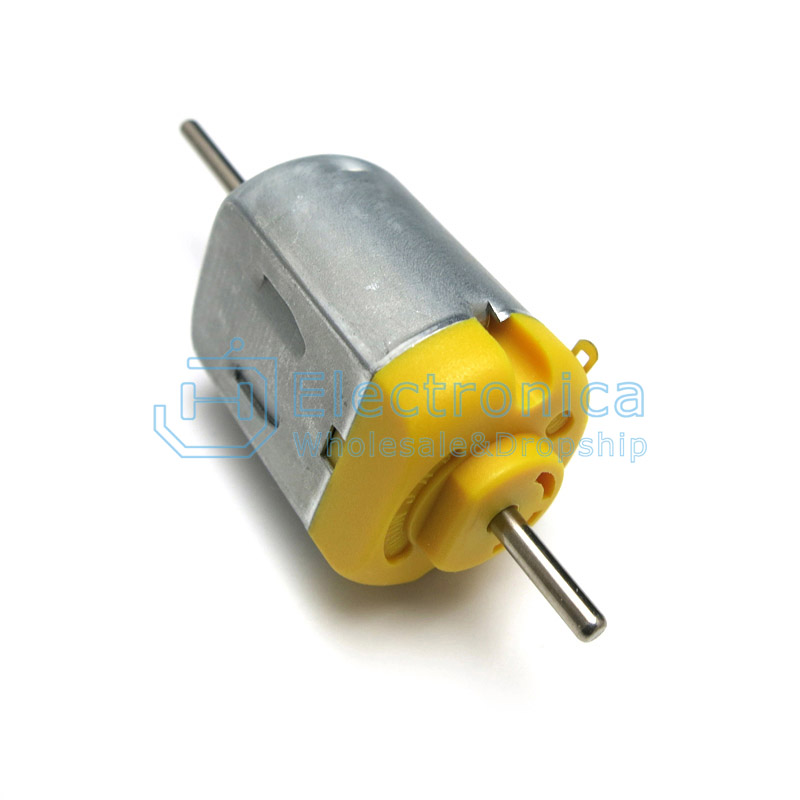

Yellow back cover:about 3000 rpm at 6V and 5400 rpm at 12V

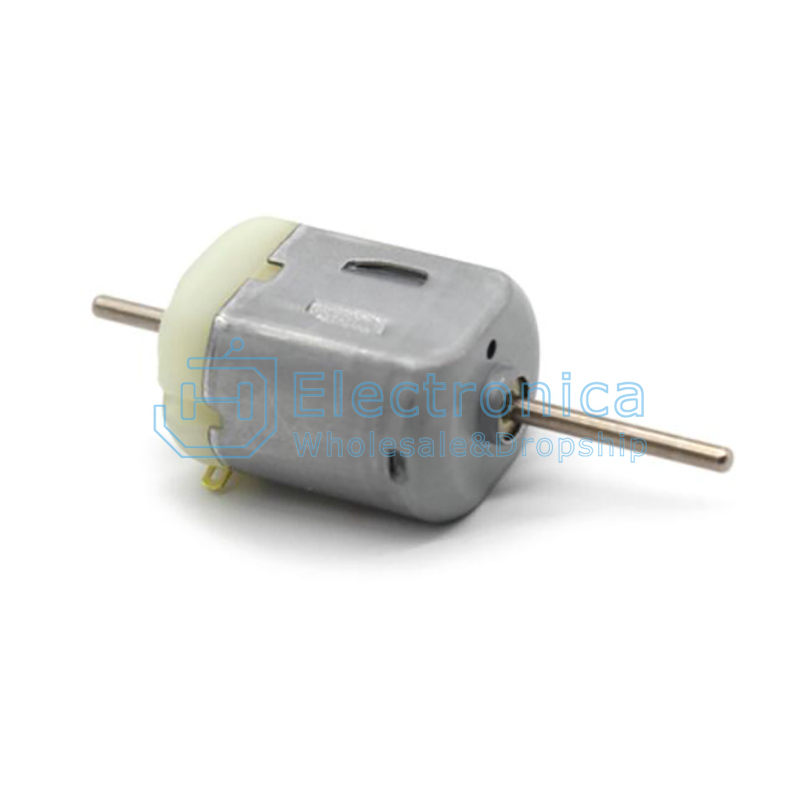

Silver back cover:about 3700 rpm at 6V and 7000 rpm at 12V
Reference current:when the voltage is 3V, the no-load current is 30mA and the locked rotor current is 90mA
Motor size:length 25*20*15mm
Motor shaft diameter:2mm
Shaft length:front end 18mm,rear end 8mm
Motor weight:about 18.45g
Characteristic:
This 130 motor can be used as a hand generator and wind turbine. It can light up 3V LED lamp with one turn of the hand, and has high power generation efficiency. And the motor can also be connected with an external solar panel to supply power through solar energy; Moreover, the electric brush of the motor is a carbon brush, which can be electrified for a long time and has the advantages of wear resistance and long service life

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment .

We can accept customized package to meet different requirements :
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag .
2.Some fragile products such as the display screen can be packed in bubble bag .
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

130 Long Axis Carbon Brush Motor

SKU : YXJ157 Brand : JH Sourcing

Price : $ 0.27

100 +: $0.27500 +: $0.271000 +: $0.27

Style：

Silver

Quantity :

- +

ADD TO CART
