Description

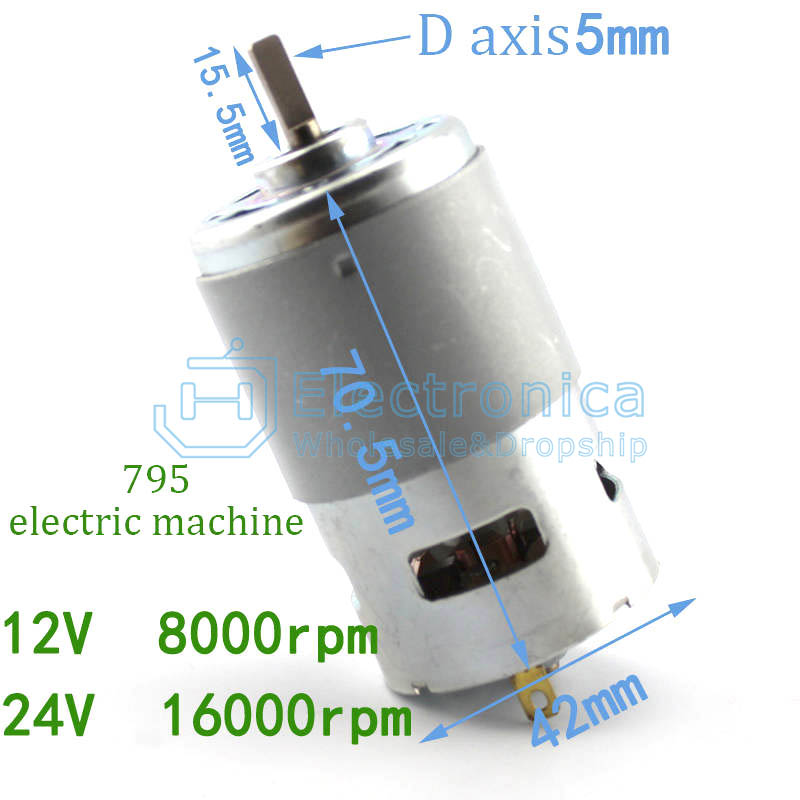

Motor size parameters:
Motor diameter: 44.5mm (with shell)
Motor diameter: 42mm (without shell)
Motor length: 70.5mm (excluding steps and shafts at both ends)
Distance between mounting holes: about 29mm
Diameter of mounting hole: M4 screw

Motor shaft parameters:
Shaft length: 15.5mm (shaft length above step level)
Motor shaft diameter: 5mm shaft (edge cutting 1.5mm, edge cutting length 13mm)

Motor step parameters:
Motor front step height: 4.5mm
Motor front step diameter: 17.5mm
Step height of motor tail: About 7mm
Motor tail shaft length: About 4mm

Motor parameters:
Rated voltage: 12V
Voltage range:12-24V
12V,no-load current 0.9A, locked rotor current 3.34A, speed 8000/min
24 V,no-load current 1.2 V, locked rotor current 3.75A, speed 16 000/min

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment .

We can accept customized package to meet different requirements :
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag .
2.Some fragile products such as the display screen can be packed in bubble bag .
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

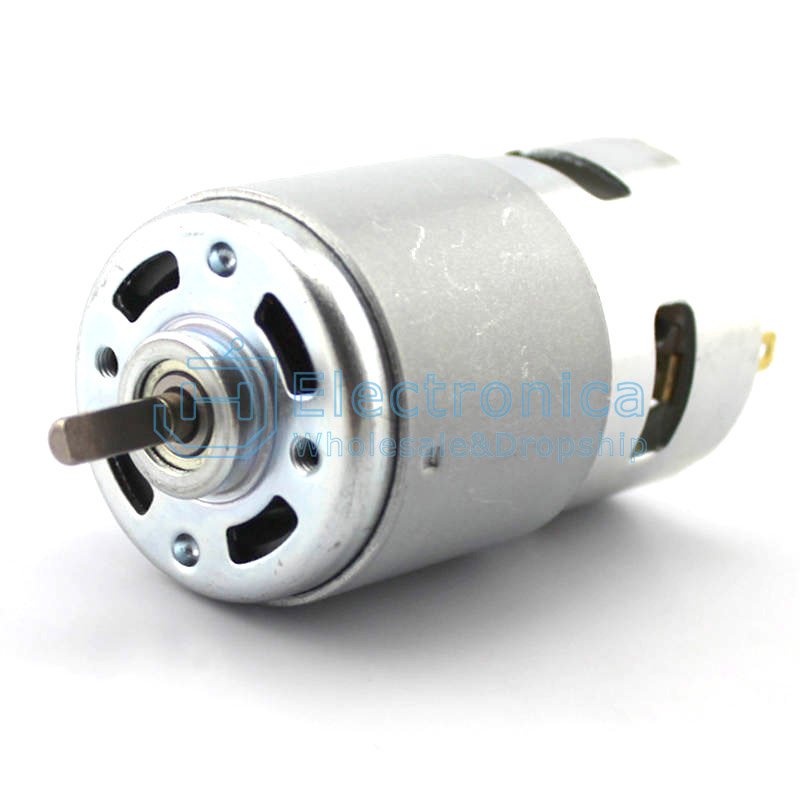

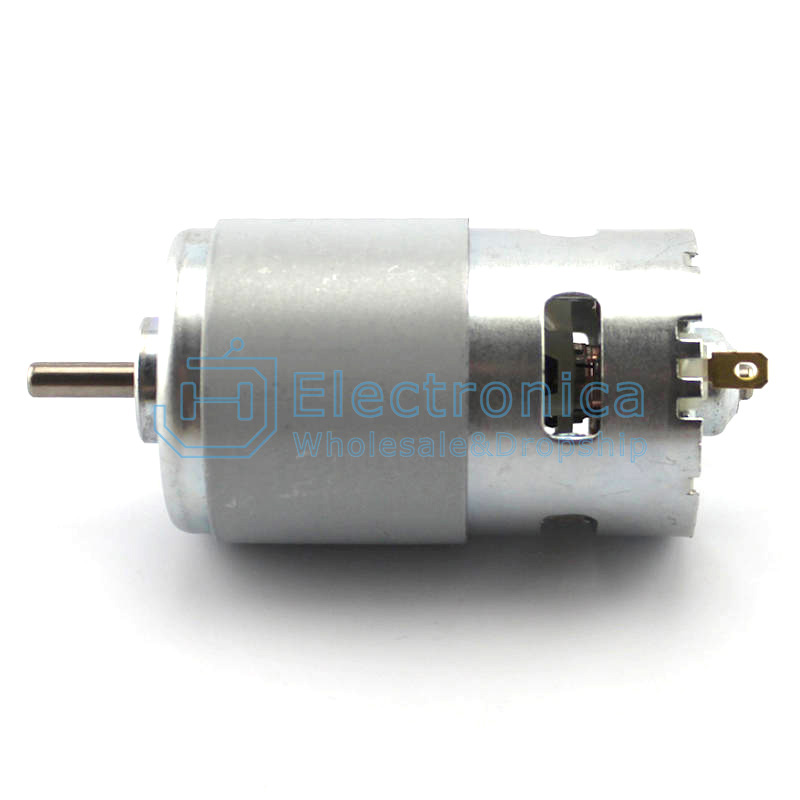

12-24V 795(D-axis) Large Torque High Power DC Motor

SKU : YXJ199 Brand : JH Sourcing

Price : $ 3.89

100 +: $3.89500 +: $3.891000 +: $3.89
