Description

Motor measured parameters (for reference):
Rated voltage: 12V
Voltage range: 12-24V
Stall current: 3.25A
No-load current: 0.27A
No-load speed: 4500 rpm
Motor step diameter: 17.5mm
Motor step height: 4.5mm
Output shaft length: 16mm (axis length above the step level)
Shaft diameter: 5mm shaft (1.5mm chamfered edge, trimmed length 13mm)

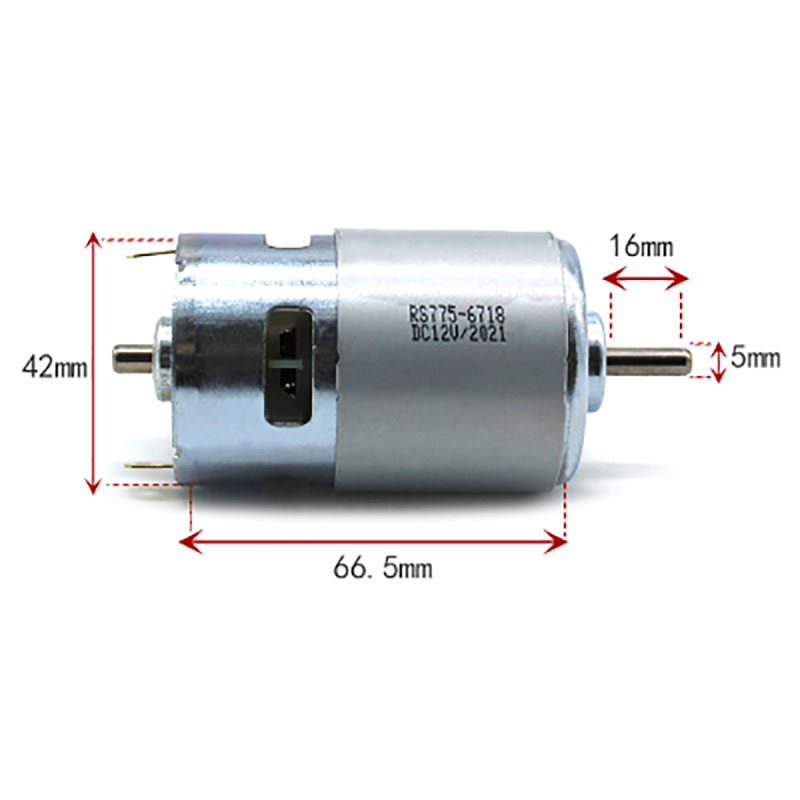

Motor diameter: 42mm
Motor length: 66.5mm
Motor tail step height: about 7mm
Motor tail shaft length: about 4.5mm
Pitch of mounting hole: approx. 29mm
Mounting hole diameter: M4 screw
Motor weight: 350g

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment .

We can accept customized package to meet different requirements :
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag .
2.Some fragile products such as the display screen can be packed in bubble bag .
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

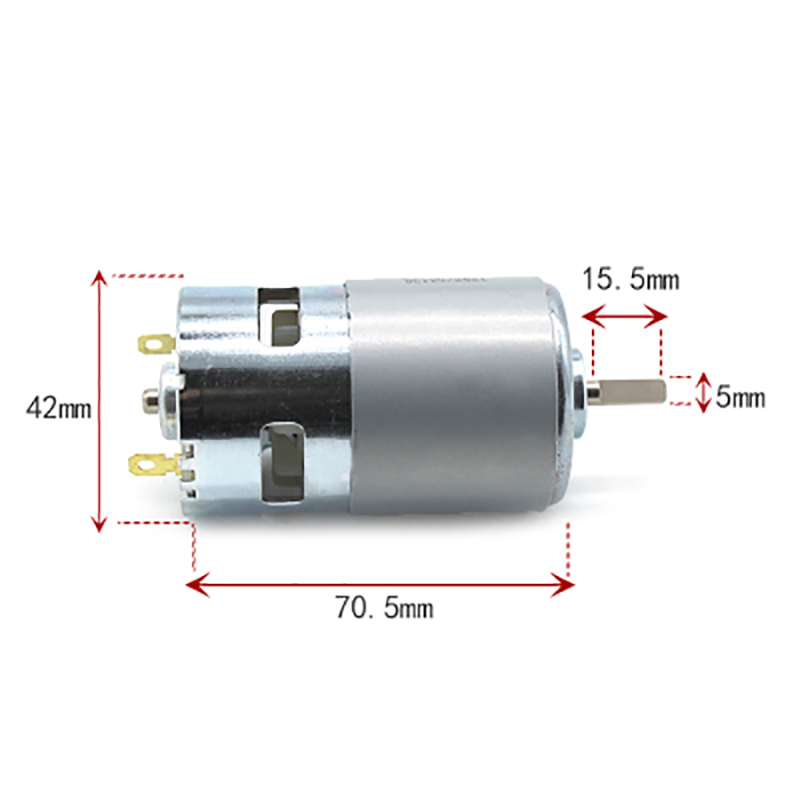

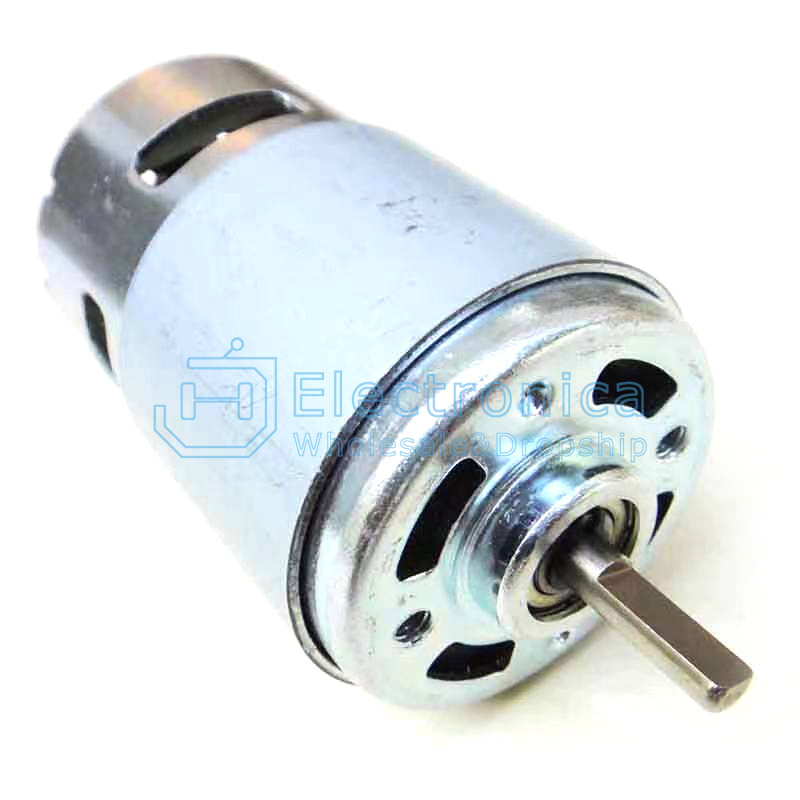

12V 24V D-axis High-speed High-torque 775 Bearing Motor

SKU : YXJ174 Brand : JH Sourcing

Price : $ 3.91~7.35

100 +: $3.91~7.35500 +: $3.91~7.351000 +: $3.91~7.35

Style：

775 (Round Shaft)
775 (D-type Shaft)
775 (Round Shaft Double Ball)

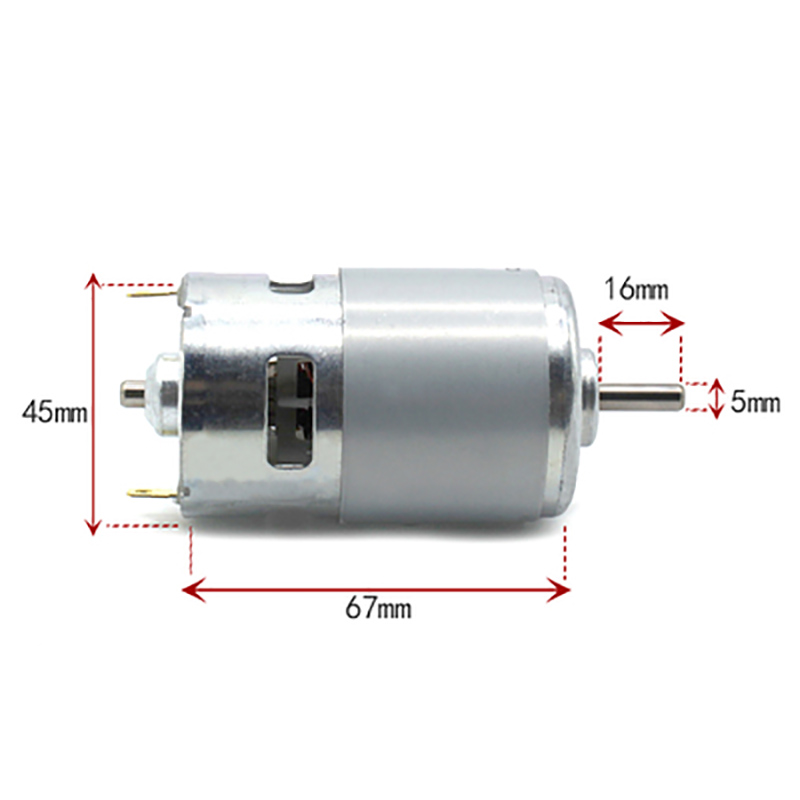

895 (Round Shaft)

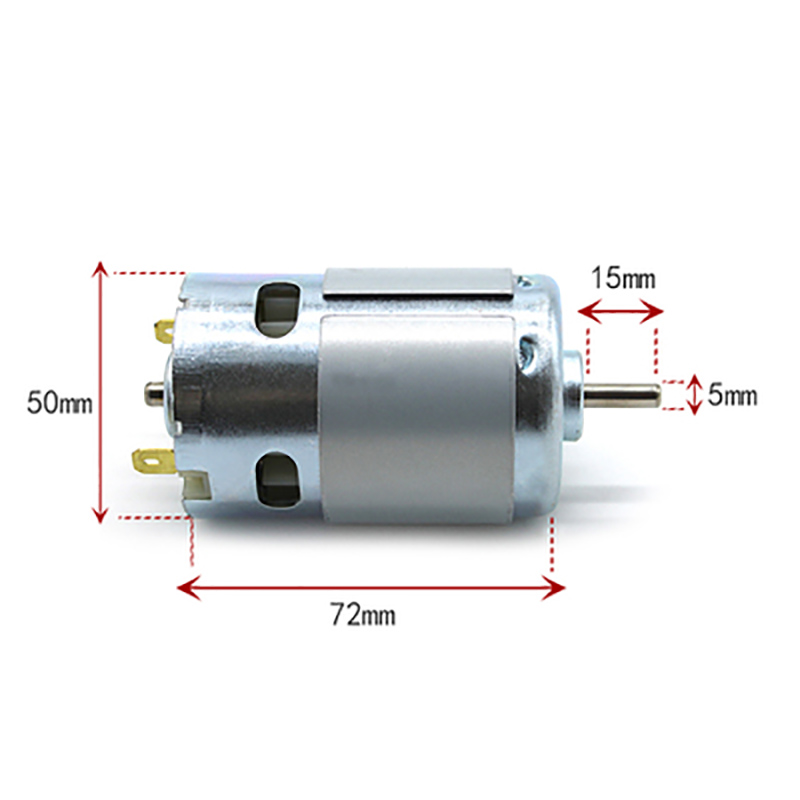

795 (D-type Shaft)
