Description

Input voltage:4-35V
Output voltage:1.25-25V continuously adjustable(default shipping voltage 4.2V current 1A,need it voltage can be adjusted by itself)
Adjustment method:first connect the input power supply correctly(between 4-35V) and then use a multimeter to monitor the output voltage and adjust the potentiometer(generally turn to boost and buck counterclock)
Output current:12V to 5V max 2A(output other voltage,calculate current according to 15W,formula 15/output voltage=output current)
Output power:15W max(if the temperature is high,please strengthen the heat dissipation)
Conversion efficiency:80% the higher the output voltage,the higher the efficiency)
Operating temperature:industrial grade(-40℃ to +85℃ ambient temperature over 40℃,please reduce power usage,or enhanced heat dissipation)
Full load temperature rise:45℃
Indicator:constant current indicator is red,the indicator is red during charging,and the indicator light is blue after charging
Output short circuit protection:yes
Wiring:it can be soldered directly to the PCB

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

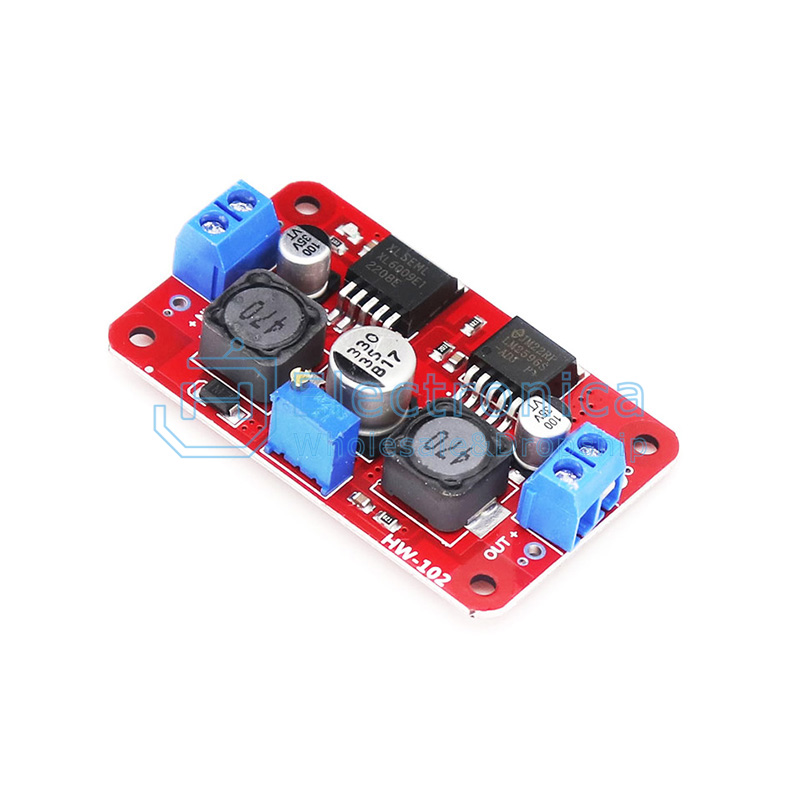

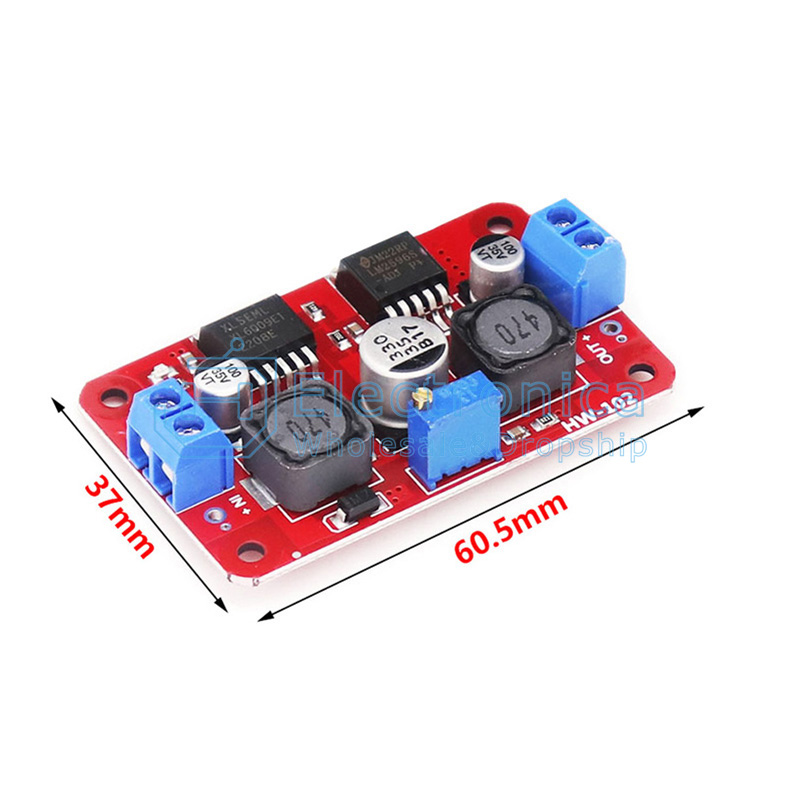

XL6009 Step Up and Down Boost Converter

SKU : YXS1402 Brand :

Price : $ 1.62

100 +: $1.62500 +: $1.621000 +: $1.62

Quantity :

- +

ADD TO CART
