Description

Input voltage: DC5-32V;
Output voltage: DC1V-30V continuously adjustable; the default 12V shipment
Output current: 10A (MAX) ,long term within 8A
Output power: 80W, peak 130W, more than 80W please strengthen heat dissipation
Output ripple: 50mV (12V turn to 12V, 5A measured)
Short circuit protection:YES
Input reverse connection protection: No
Output prevent reverse connection protection: No
Operating temperature range: -45 ~ +85 °

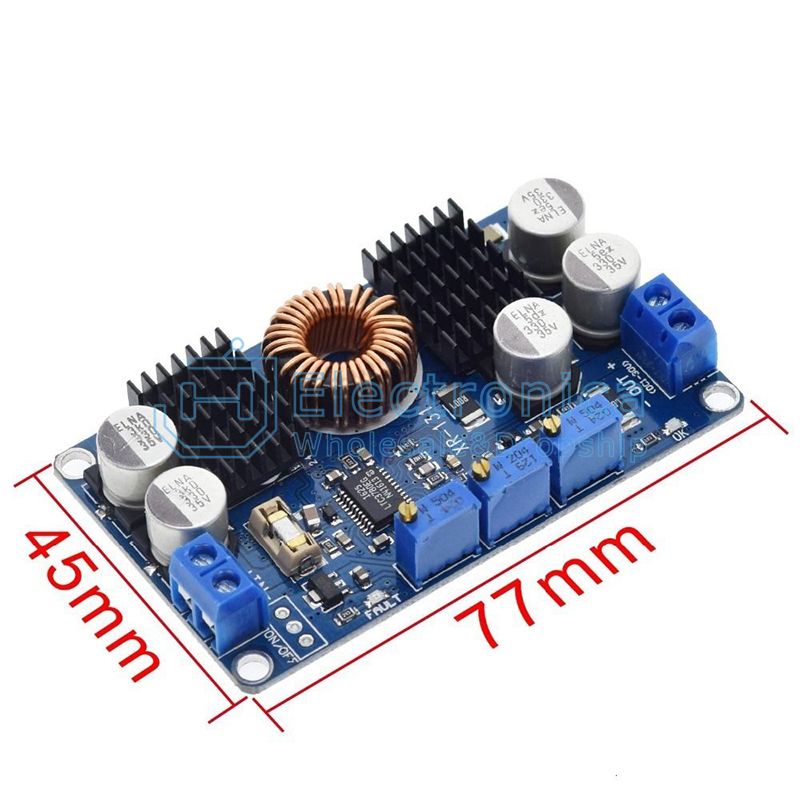

Size: 77.6*46.5*15mm

This power supply is a high-efficiency regulated power module that can maintain stable output voltage when the input voltage is below, above, or equal to the output voltage. For example, if the output is set to 12V, the output voltage will remain stable at 12V when the input voltage changes between 5 and 32V. This module has comprehensive protection functions and can be applied to solar charging

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment .

We can accept customized package to meet different requirements :
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag .
2.Some fragile products such as the display screen can be packed in bubble bag .
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

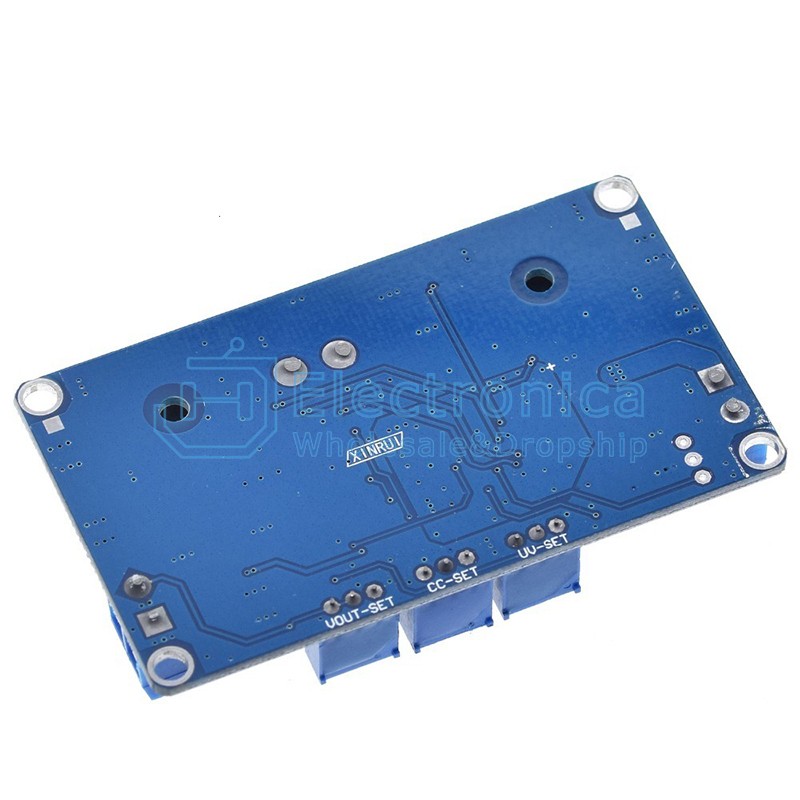

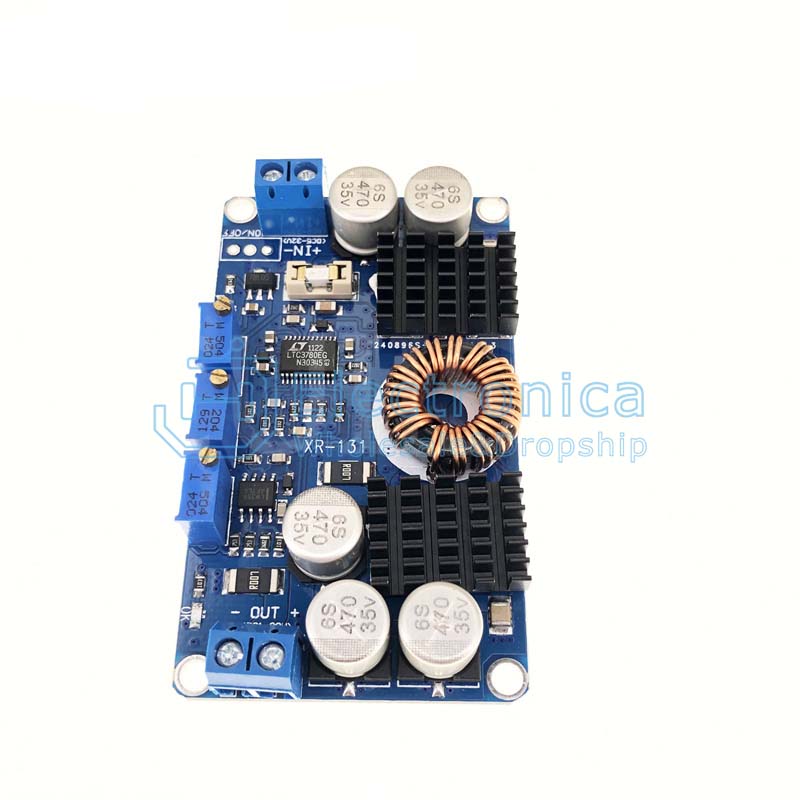

LTC3780 Automatic Step Up Step Down Power Supply Module

SKU : YXB725 Brand : JH Sourcing

Price : $ 5.96

100 +: $5.96500 +: $5.961000 +: $5.96
