Description

Product Parameters:
Product model:TJ-56-551
Input voltage:DC 12V
Input current:<70mA
LED (red):Power indicator light
LED (green):Ultrasonic levitation indicator light
Suspension time: Can be suspended for a long time, tested for 24 hours for stable suspension, and the motherboard is slightly hot
Size:42×42×62mm, probe spacing 22mm (manual measurement may have errors)

Product Introduction:

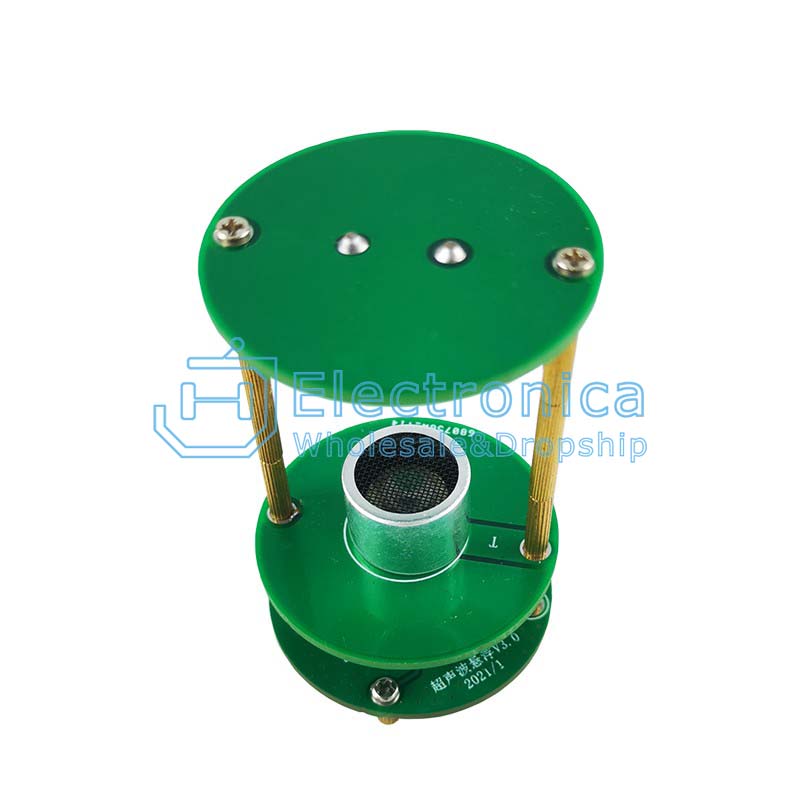

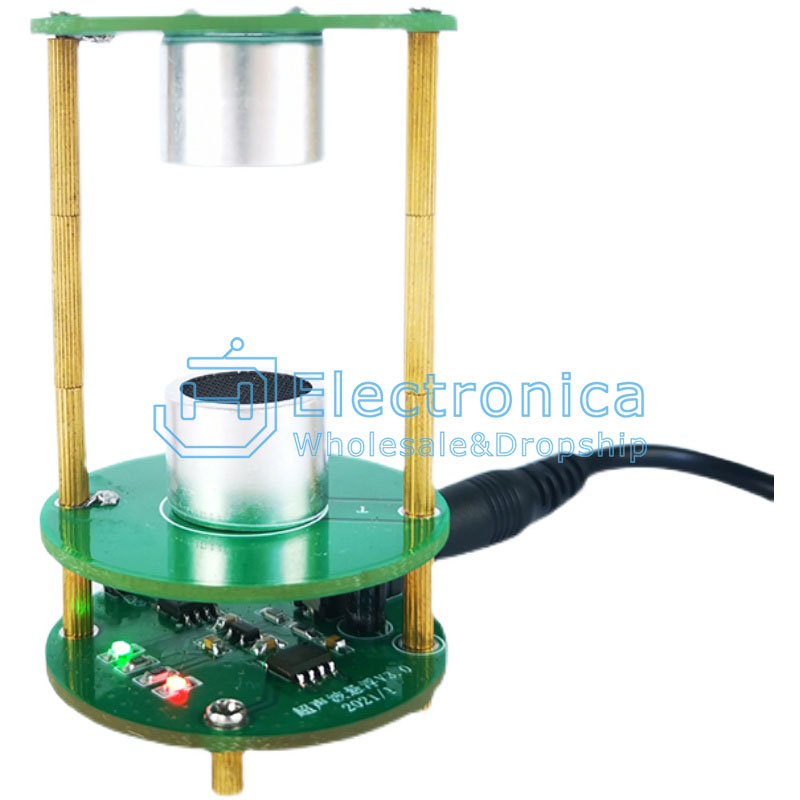

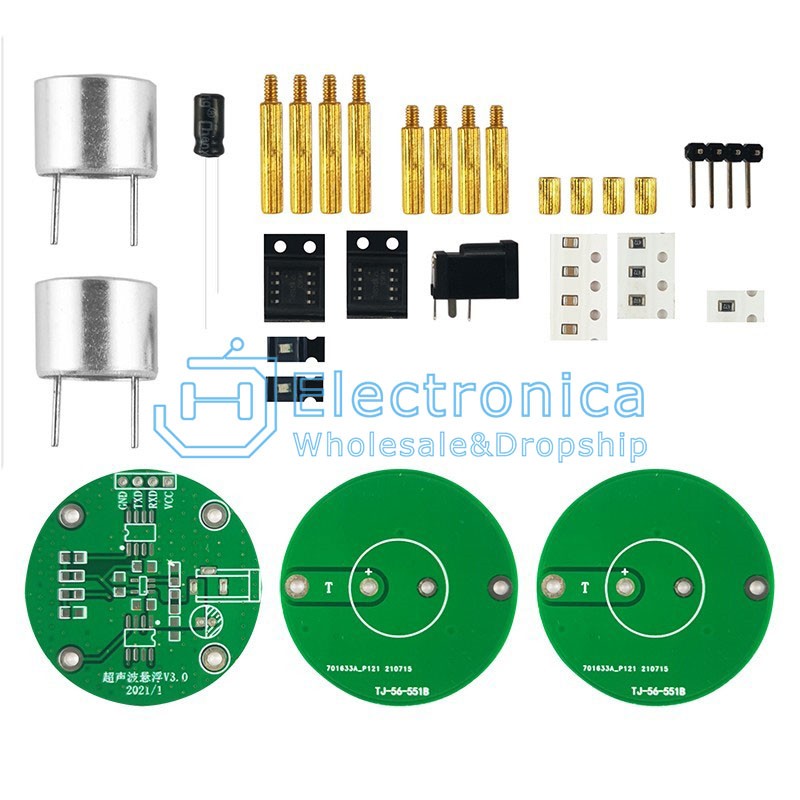

This is a mini ultrasonic levitation device. The levitable foam ball device consists of 1 single chip microcomputer, 1 drive chip and 2 ultrasonic probes. Mainly used for students or DIY electronics enthusiasts to learn about ultrasonic standing wave levitation. Currently, controlling the movement of suspended objects up and down is not supported

Working Principle:
Ultrasonic standing wave levitation is achieved by the presence of a certain distance (known as the resonant cavity distance) between the ultrasonic emission end and the reflection end (or another emission end), and the continuous superposition of the emission wave and the reflection wave (or another sound wave) to form a standing wave. The acoustic wave force on the object at the standing wave node overcomes gravity and ultimately achieves the effect of levitation

Working Principle:
Ultrasonic standing wave levitation is achieved by the presence of a certain distance (known as the resonant cavity distance) between the ultrasonic emission end and the reflection end (or another emission end), and the continuous superposition of the emission wave and the reflection wave (or another sound wave) to form a standing wave. The acoustic wave force on the object at the standing wave node overcomes gravity and ultimately achieves the effect of levitation

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

Ultrasonic Suspension Electronic Learning Kit

SKU : YXS1238 Brand :

Price : $ 2.51~3.56

100 +: $2.51~3.56500 +: $2.51~3.561000 +: $2.51~3.56

Style：

Kit
Kit+12V power adapter

Quantity :

- +

ADD TO CART
