Product Parameters:
Power input:DC 12V(0.5-1A)
Appearance size:44*40*66mm

Product Introduction:
This suspending device operates at a frequency of 40KHZ in the air, and can capture light objects with a density of 2-3MM in diameter, such as foam balls, ants and other small objects that are stably suspended in the air for a long time, and the main board is slightly hot. The circuit mainly consists of one microcontroller, one driver chip, and two ultrasonic emission heads. Mainly used for learning and understanding ultrasonic standing wave suspension

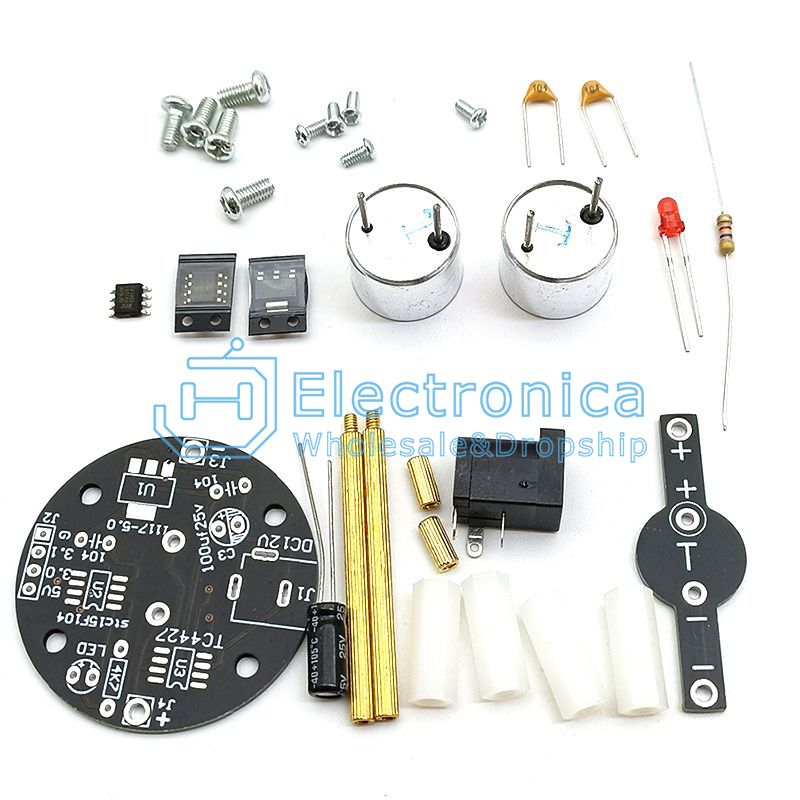

Component List:
Upper PCB board 1
Lower PCB board 1
Ultrasonic emission head T 2
M2*4 screw 5
M2*7 double pass copper column 2
M2*39+3 copper column 2
M3*6 screw 5
M3*15 double pass nylon column 4
25V 33UF-100UF 1
DC005 Base 1
104 single stone capacitor 2
4.7K resistor 1
3MM LED red with red 1
1117-5.0 voltage regulator chip 1
STC15F104W(Burn the written program) 1
TC4427 1

Working Principle:
Ultrasonic standing wave levitation is achieved by the presence of a certain distance (known as the resonant cavity distance) between the ultrasonic transmitting end and the transmitting end (or another transmitting end), where the emitted wave and the reflected wave (or another sound wave) are continuously superimposed to form a standing wave. At the standing wave node, the object is subjected to acoustic wave force that overcomes gravity, ultimately achieving the effect of levitation
