Description

Dominant Frequency: 240MHZ

Flash: 32M-Bits
Processor: Tensilica LX6 Dual Core
Master chip: ESP32
LoRa chip: SX1276
Support frequency band: 868-915MHZ
Open communication distance: 2.8KM
Computing capacity: up to 600DMIPS
Dual-mode Bluetooth: traditional Bluetooth and BLE low-power Bluetooth
Development environment: perfect support for Arduino
Operating voltage: 3.3-7V
Operating temperature range: -40-90 ℃
Receiver sensitivity: -139dBm (SF12, 125KHZ)
UDP continuous throughput: 135Mbps
USB adapter chip: CP2102
Support mode: Sniffer, Station, softAP and Wi-Fi Direct
Transmit power: 19.5dBm@11b, 16.5dBm@11g, 15.5dBm@11n
Data rate: 150Mbps @ 11n HT40, 72Mbps @ 11n HT20,
54Mbps @ 11g, 11Mbps @ 11b

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment .

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag .
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

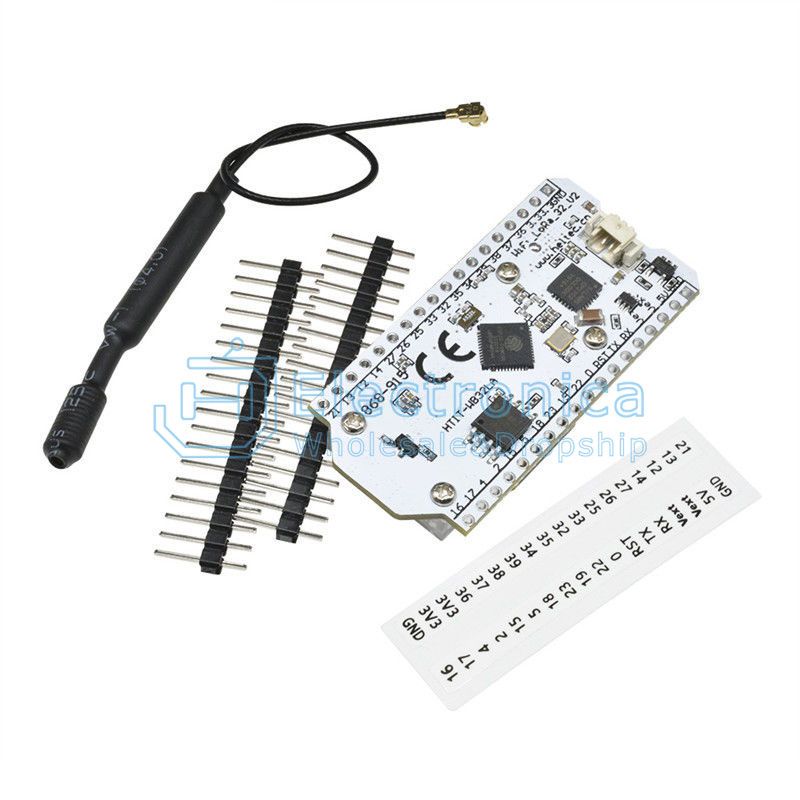

SX1276/ESP32/OLED WIFI Bluetooth Development Board

SKU : YXB509 Brand : JH Sourcing

Price : $ 16.13

100 +: $16.13500 +: $16.131000 +: $16.13

Quantity :

- +

ADD TO CART
