Description

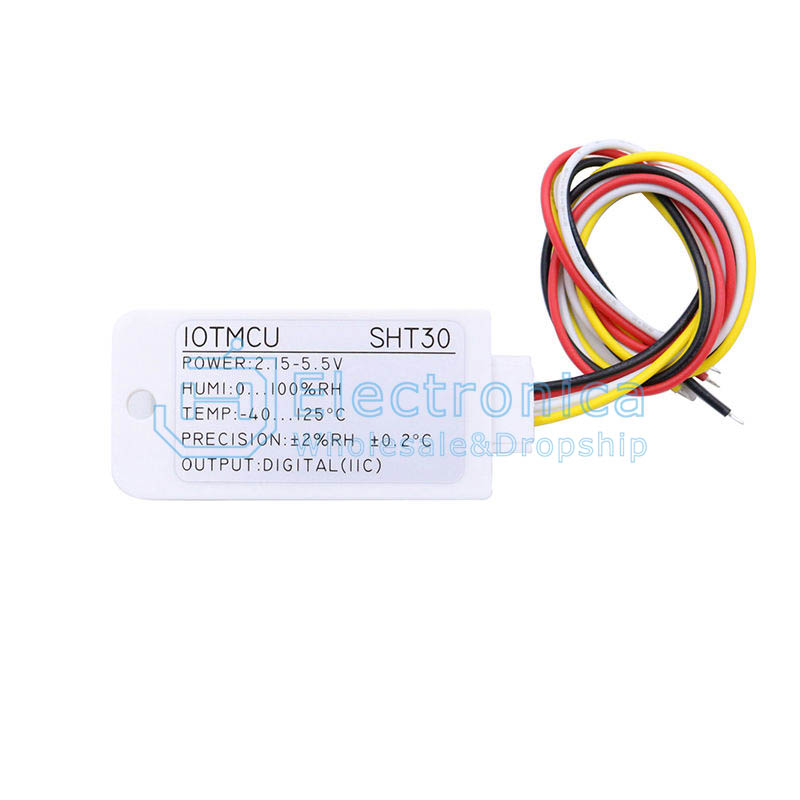

Working voltage:2.15-5.5V

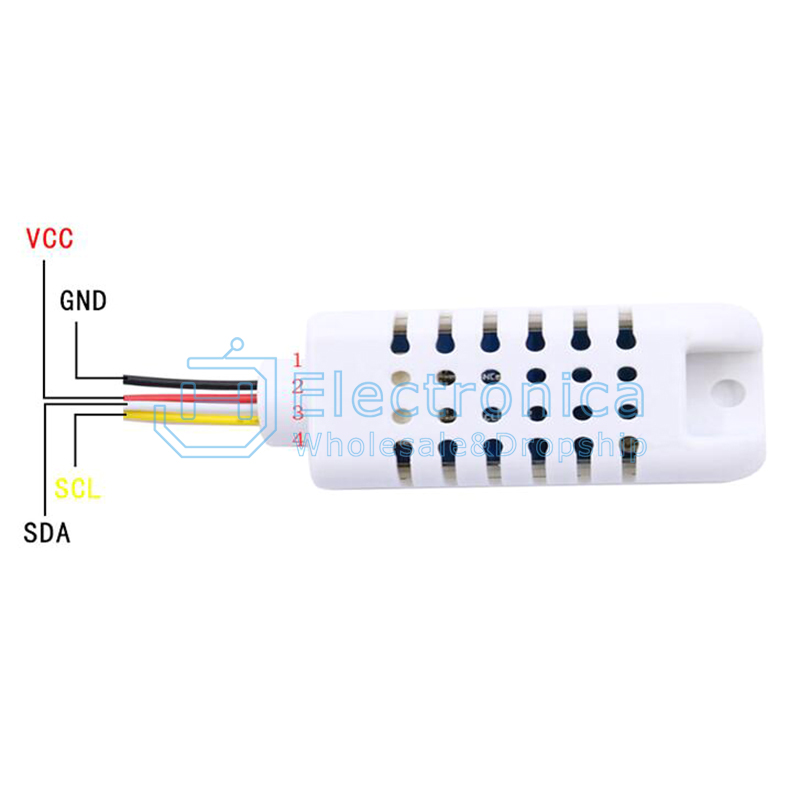

Output signal:IIC digital signal
Humidity measurement range:0~100%RH
Temperature measurement range:-40~125℃
Accuracy: ±2%RH ±0.2℃
IOT-TH02 SHT30 digital temperature and humidity sensor uses SHT30 chip.
The new SHT3x digital humidity sensor series takes sensor technology to a new level.
As the successor to the SHT2x series, it has been determined to set the next industry standard for humidity sensing.
The SHT3x humidity sensor series includes low-cost version SHT30 humidity sensor, standard version SHT31 humidity sensor and high-end version SHT35 humidity sensor.
Features:
SHT3x can improve reliability and accuracy indicators. SHT3x provides a series of new features, such as enhanced signal processing, two unique and user-selectable I2C addresses, an alarm mode with programmable humidity and temperature limits, and a communication speed of up to 1MHz.
Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment .
We can accept customized package to meet different requirements :
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag .
2.Some fragile products such as the display screen can be packed in bubble bag .
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.
SHT30 Digital Temperature and Humidity Sensor with IIC I2C Interface
SKU : YXC300 Brand : JH Stock
