Description

Wiring Instructions:
Connect the blue screw terminal to the main power supply (the power supply voltage is equivalent to the fan voltage used and within the range of 8-60V), please pay attention to the positive and negative polarity and do not connect it incorrectly; Two 4P sockets, "Channel 1" and "Channel 2", are connected to the fan. The wire sequence is power negative, power positive, speed feedback, and PWM control (please refer to the wiring diagram below for details); Connect "Thermistor 1" and "Thermistor 2" to NTC thermistors (parameter 10K B=3950), and control temperature measurement using two channel fans for temperature control; The 'Beep' socket is connected to the AC buzzer. When the stall alarm is turned on, the fan stall buzzer will beep for a long time

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

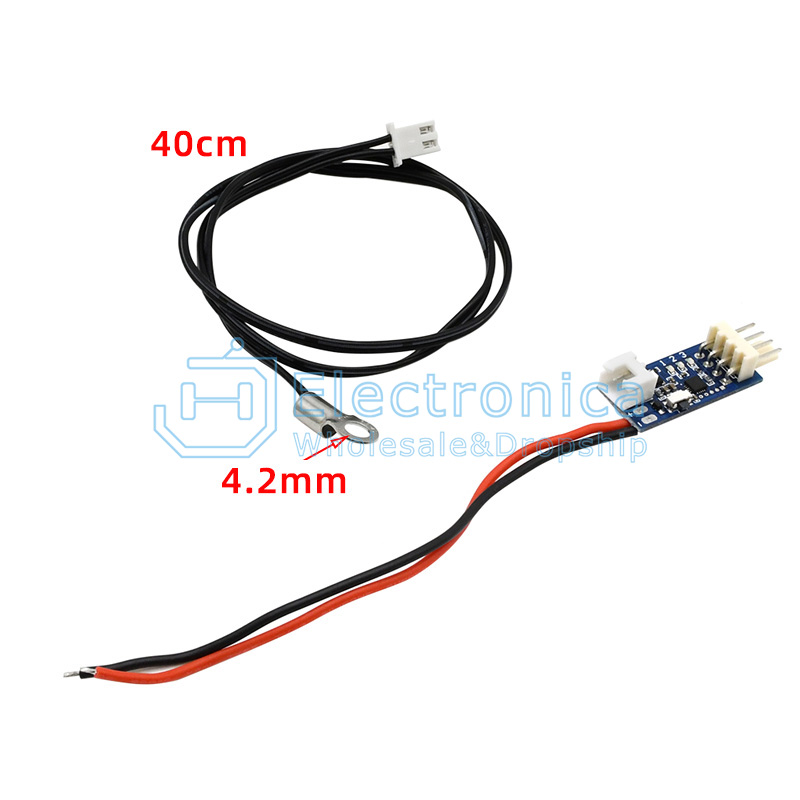

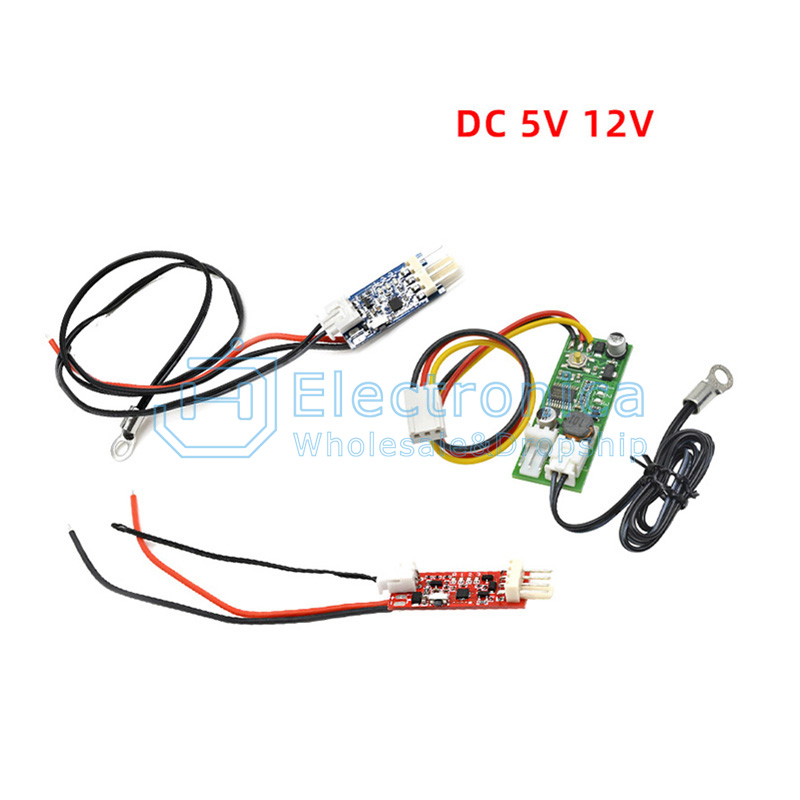

Intelligent Temperature Control Module

SKU : YXS1654 Brand :

Price : $ 17.07

100 +: $17.07500 +: $17.071000 +: $17.07
