Description

Resistive Element: Thick Film
Substrate: AlN Ceramic
Mounting Flange: Nickel Plated Copper
Operating Temperature: -50 to +150°C (see de rating chart)
Tolerance is: ±0.010”, unless otherwise specified. Designed to meet of exceed applicable portions of MIL-E-5400. All dimensions in inches
Electrical Specifications:
Resistance Value: 50 Ohms, ±2%
Power: 150 Watts
Frequency Range: DC - 3.0 GHz
Return Loss:25dB DC - 2.0 GHz 20dB DC - 3.0 GHz
Specification based on unit properly installed using suggested mounting instructions and a 50ohm nominal impedance. Specifications subject to change.

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment .

We can accept customized package to meet different requirements :
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag .
2.Some fragile products such as the display screen can be packed in bubble bag .
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

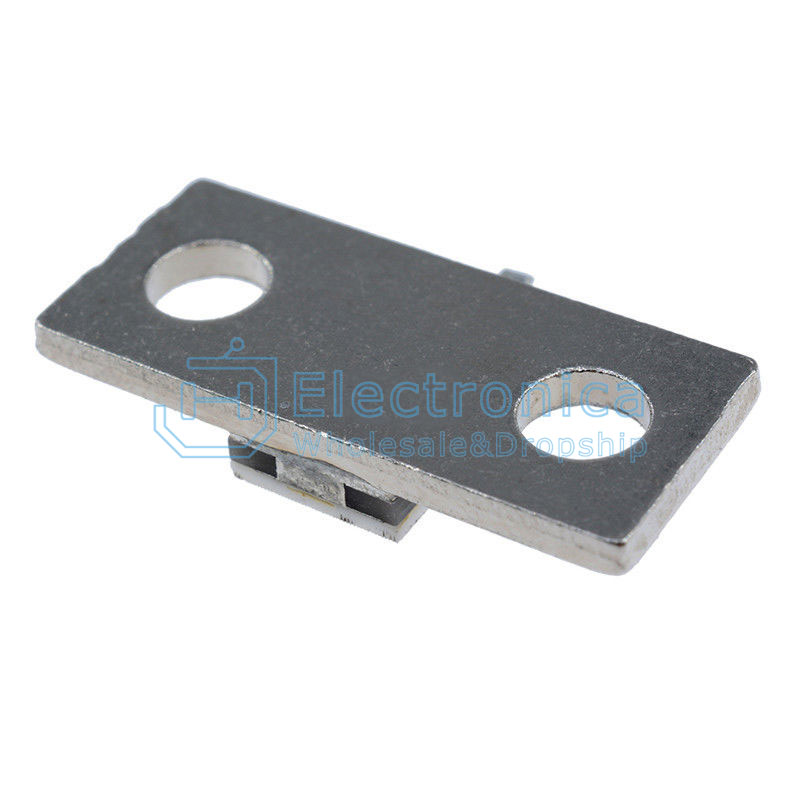

RFP G150N 50W4B 150W DC-3GHz 50ohm Termination Microwave Resistor

SKU : YXB649 Brand : JH Sourcing

Price : $ 1.61

100 +: $1.61500 +: $1.611000 +: $1.61
