Description

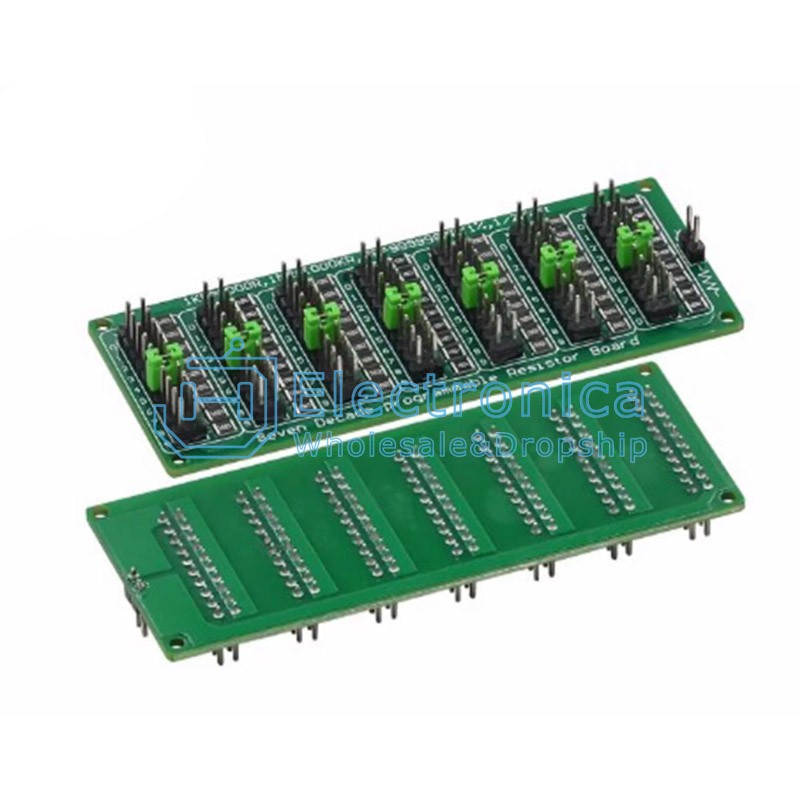

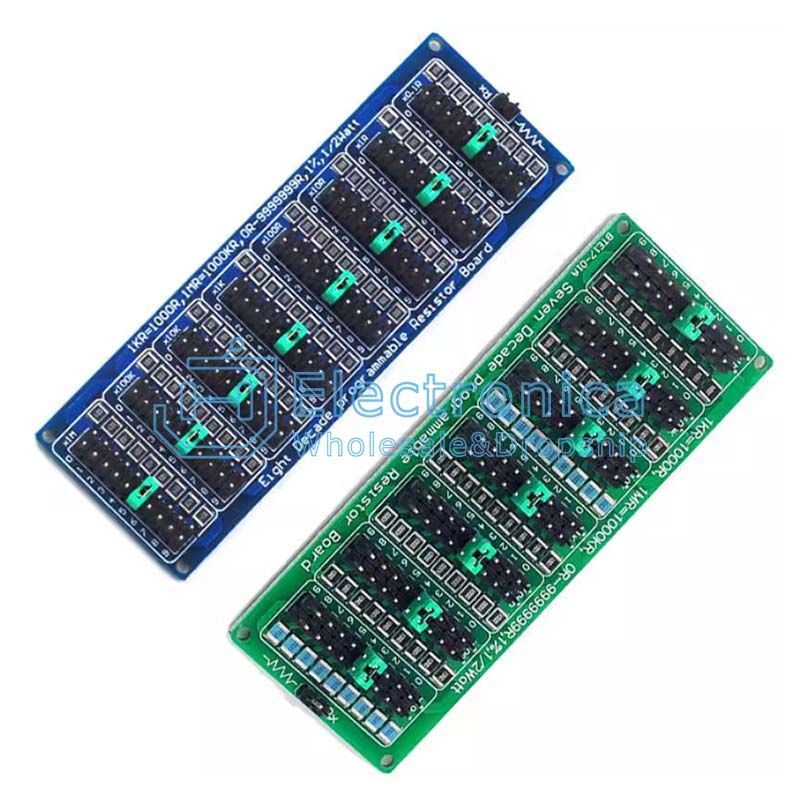

Programmable resistor board with 0.1R accuracy
Weight:24g
Size:103.2mm*35.8mm

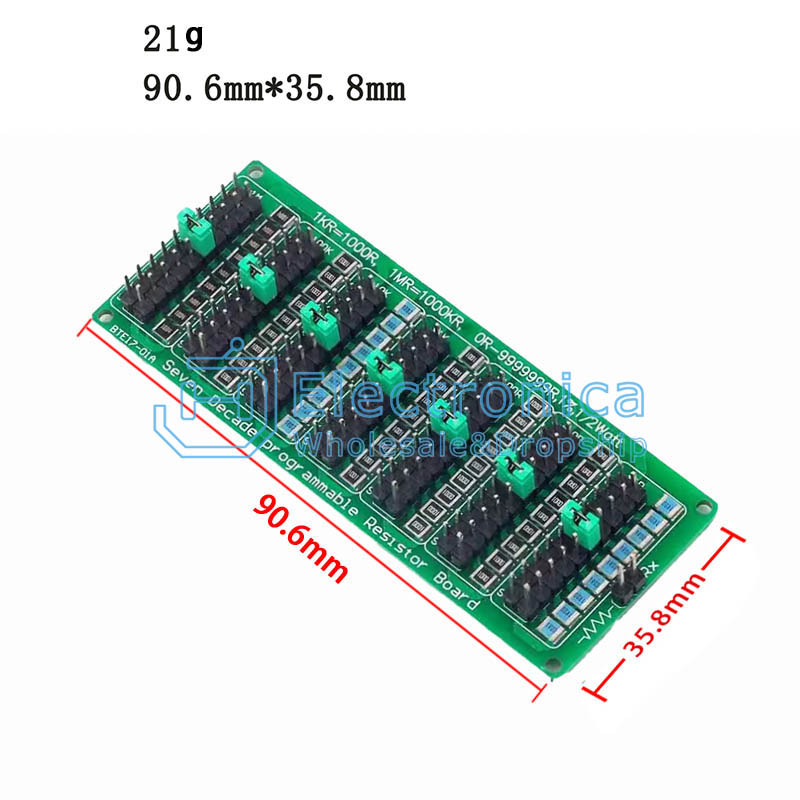

Programmable resistor board 1R accuracy
Weight:21g
Size:90.6mm*35.8mm

Features:
Design based on "resistors series" theorem
1/2 watt tolerance +/-1% SMD resistors
High quality FR4 glass fiber PCB
With spare parts 7 pieces jumper caps Programmable Resistance:0 to 9,999,999 ohm, 1 ohm per step
Resistance Tolerance:+/-1%
Rated Power:1/2 Watt
Max. Working Voltage 200V

This is an alternative resistance box, a low-cost alternative solution, with high precision and wide resistance selection range, and a step accuracy of 0.1R. For educational experiments, electronic engineering design or test trimming is a great application choice, which can be flexible, convenient, fast, and convenient to set the resistance range from 0. R to 9999999.9R or 0.1-9.99999999M Ω (0-10M Ω)

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

0.1R/1R-9999999R Programmable Resistance Board

SKU : YXS1279 Brand :

Price : $ 1.45~2.39

100 +: $1.45~2.39500 +: $1.45~2.391000 +: $1.45~2.39

Style：

Programmable resistor board with 0.1R accuracy
Programmable resistor board 1R accuracy

Quantity :

- +

ADD TO CART
