Link budgets can be up to 168dB
+20 dBm - 100 mW stabilized RF transmit power and operating voltage
+14 dBm high efficiency PA
Programmable rate up to 300kbps
High sensitivity:-148 dBm minimum
Bulletproof front end:IIP3=-12.5dBm
Strong anti-interference
Low receive current:10.3 mA,register storage state:200nA
Highly integrated synthesizer with 61Hz resolution
FSK,GFSK,MSK,GMSK,LoRaTM and OOK modulation modes
Built-in bit synchronization device can realize clock recovery
Pilot testing
127dB dynamic range RSSI
Automatic RF detection and CAD,ultra-fast AFC
Packet BUFFER up to 256BYTE,comes with CRC
Built-in temperature sensing and low battery detection indication

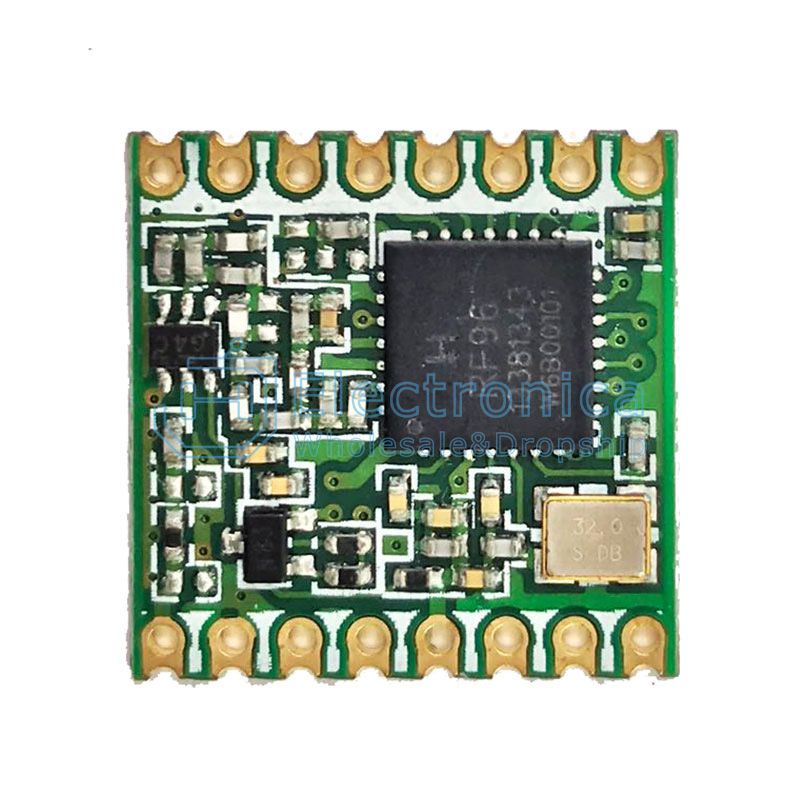

Module size:16*16mm
Main applications:
Remote wireless meter reading
Home and building automation
Wireless alarm and security system
Industrial monitoring
Remote irrigation system

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.
