Extended LoRa spectrum modulation technology
Ultra-Long Communication Distance 15KM
RF power constant with + 20dBm-100mW voltage change
High sensitivity: as low as 148dBm
Half-duplex SPI communication
Programmable bit Rate up to 300kbps
Support FSK, GFSK, MSK ... the GMSK LoRaTM system and OOK modulation
127dB RSSI dynamic range
Automatic CAD signal detection and ultra-high speed AFC mode
Package with CRC engine up to 256 bytes

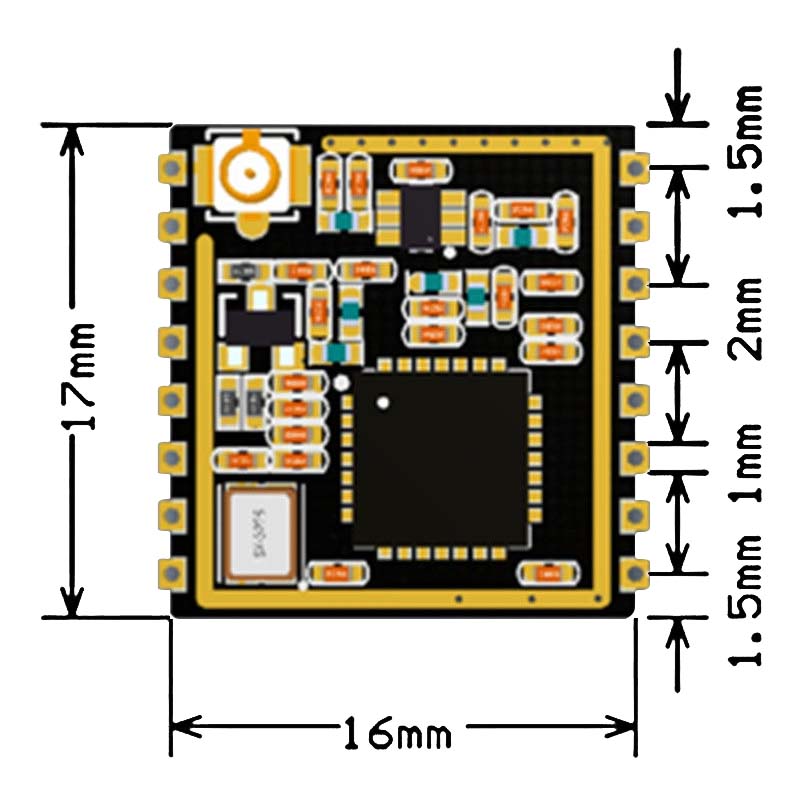

Small size double column seal hole patch pack
With shield

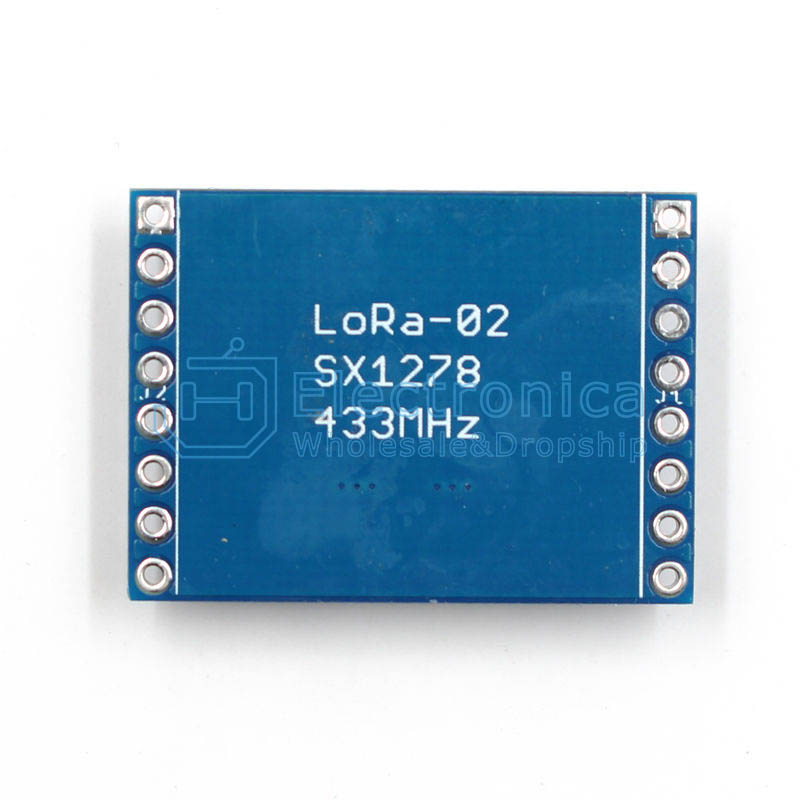

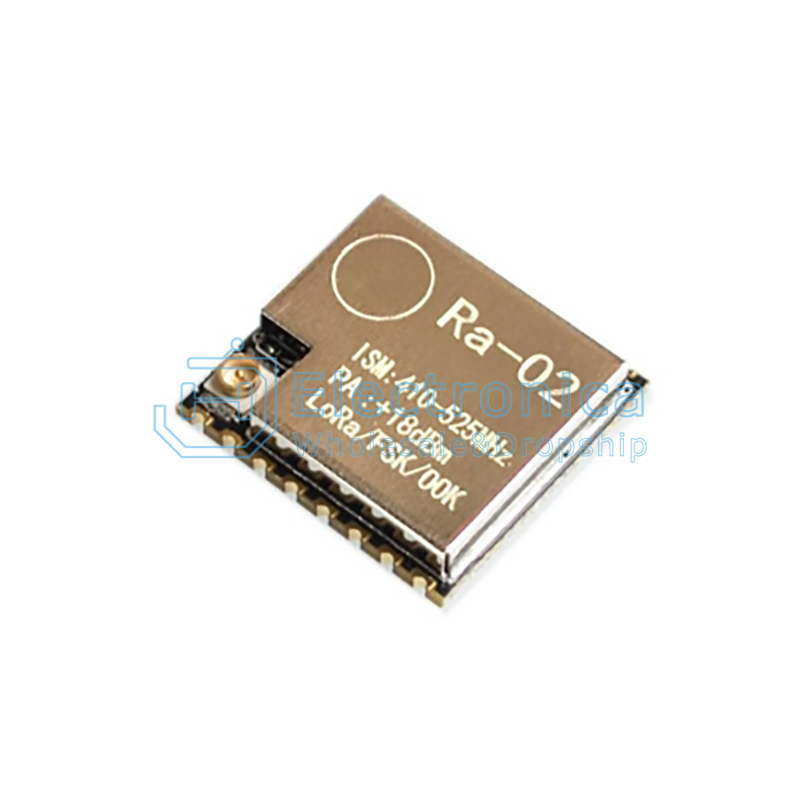

Spring antenna (Ra-01) or IPEX external antenna (Ra-02)

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.
