Description

Standard camera lens:OV5640(5 million pixels)
RAM:1MB+32MB SDRAM
FLASH:2M+32MB QSPI Flash
Voltage:3.6-6V input(when powered by USB,the voltage is 5V,it is recommended to use USB port for power supply)
Output:3.3V
Current:Max 500mA
VBAT:lithium battery input(onboard FET protection circuit and charging circuit)
LED:LED1-red light,LED2-green light,LED3-blue light,LED4-infrared
Key:RST-reset,KEY-pin "P9"
SD card:maximum support 32GB(SDHC)
BOOTO:If connected to 3V3,enter DFU mode after reset

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

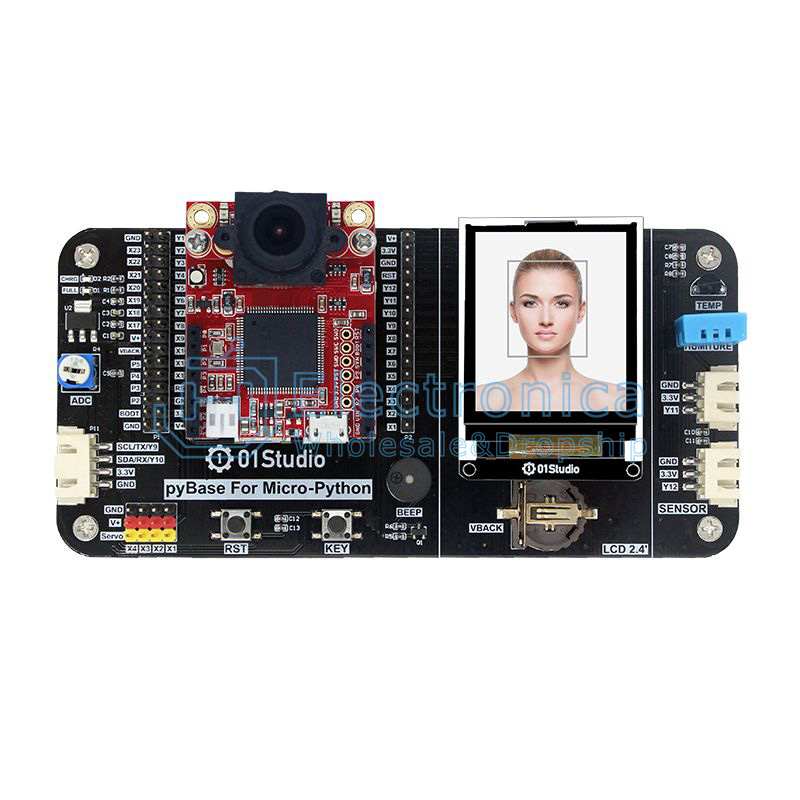

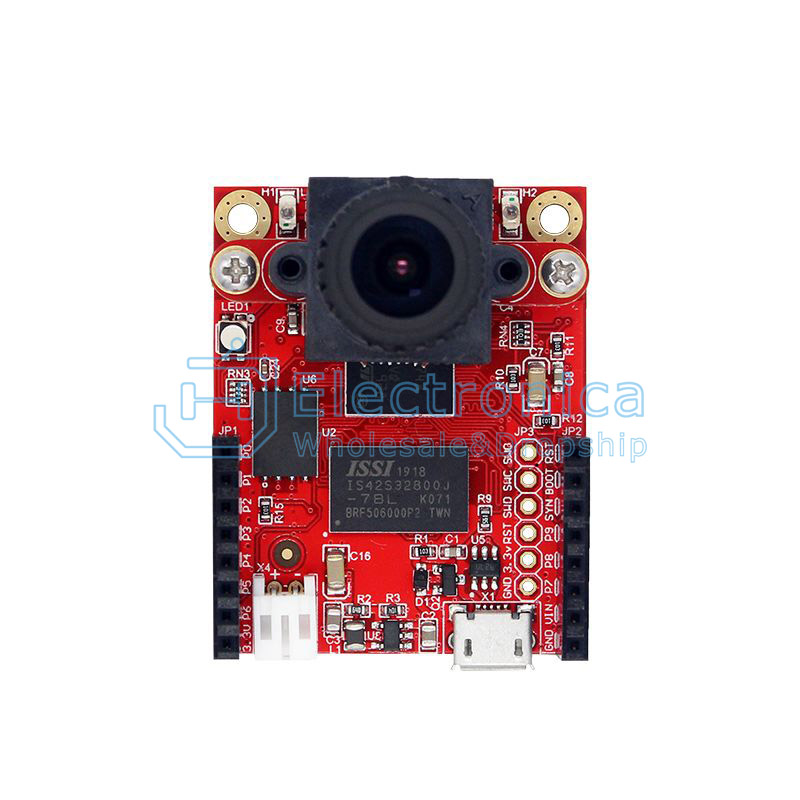

PYAI-MV4 Plus 5MP Camera Module Kit

SKU : 01S013 Brand : 01Studio

Price : $ 94.52

100 +: $94.52500 +: $94.521000 +: $94.52

Style：

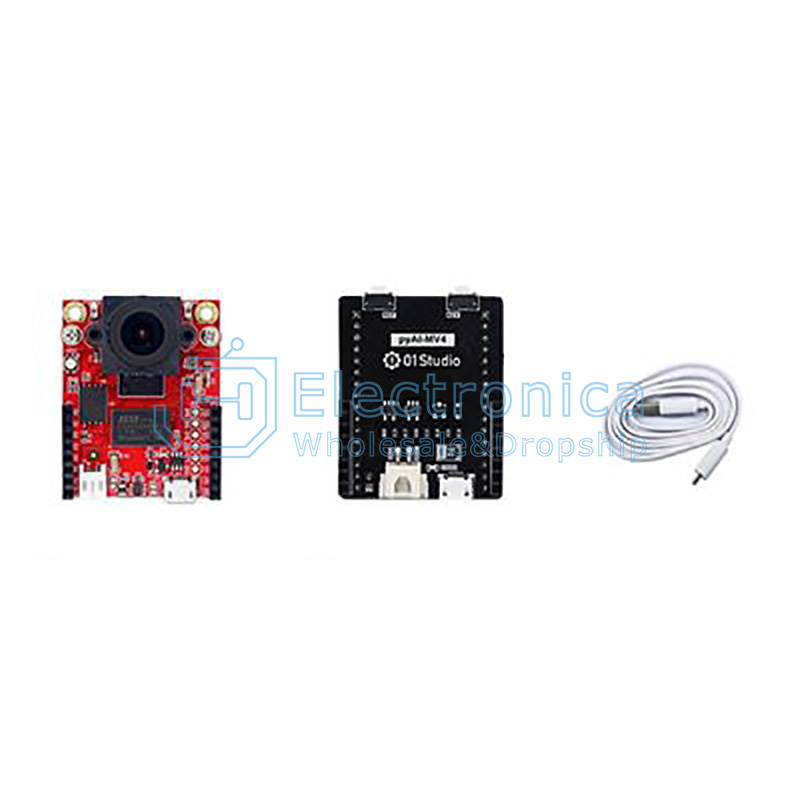

Core kit

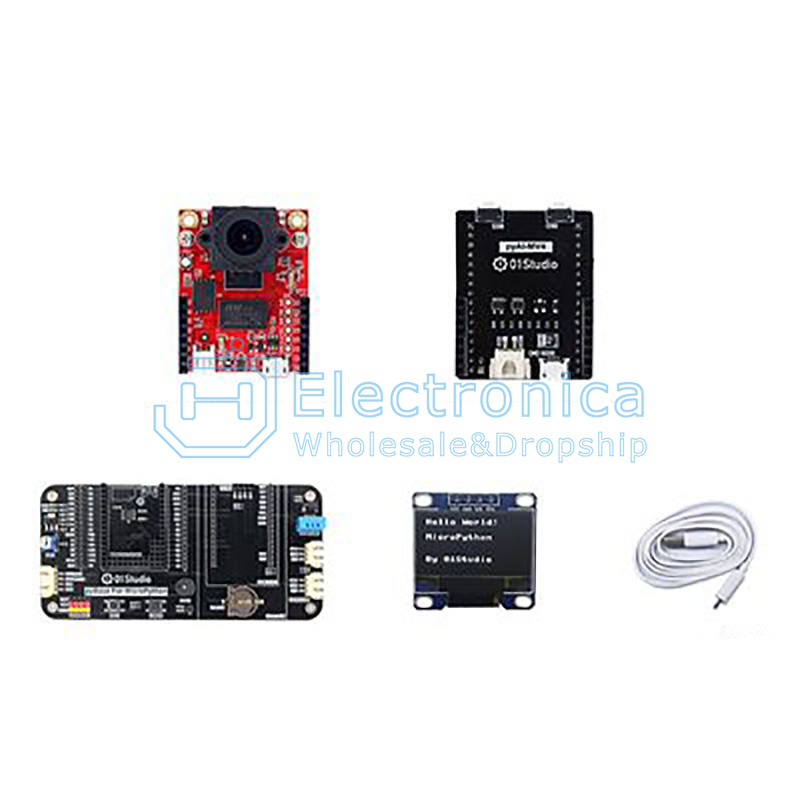

Basic kit

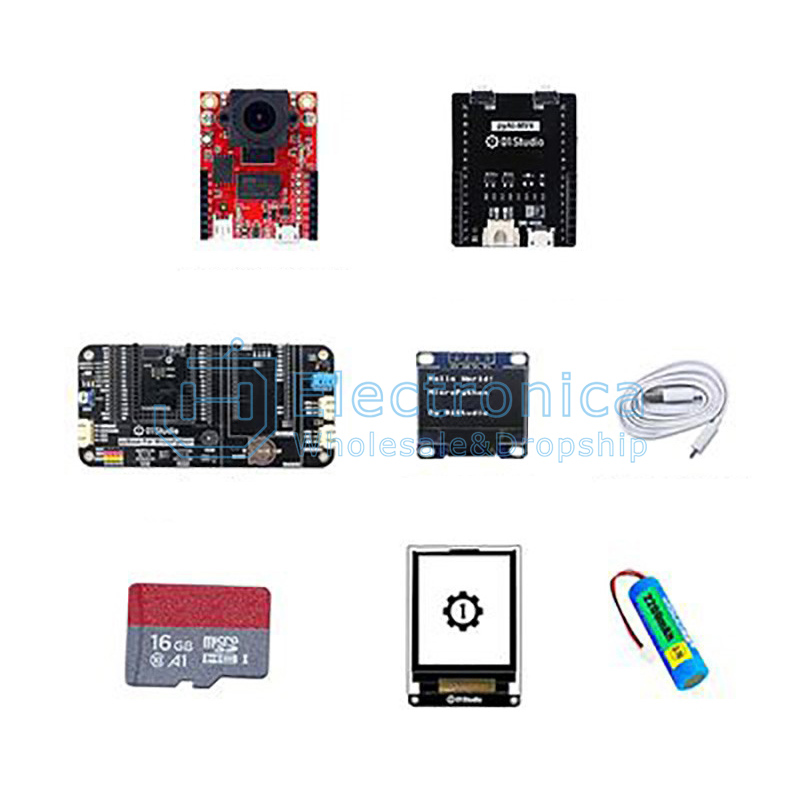

Official Recommended kit

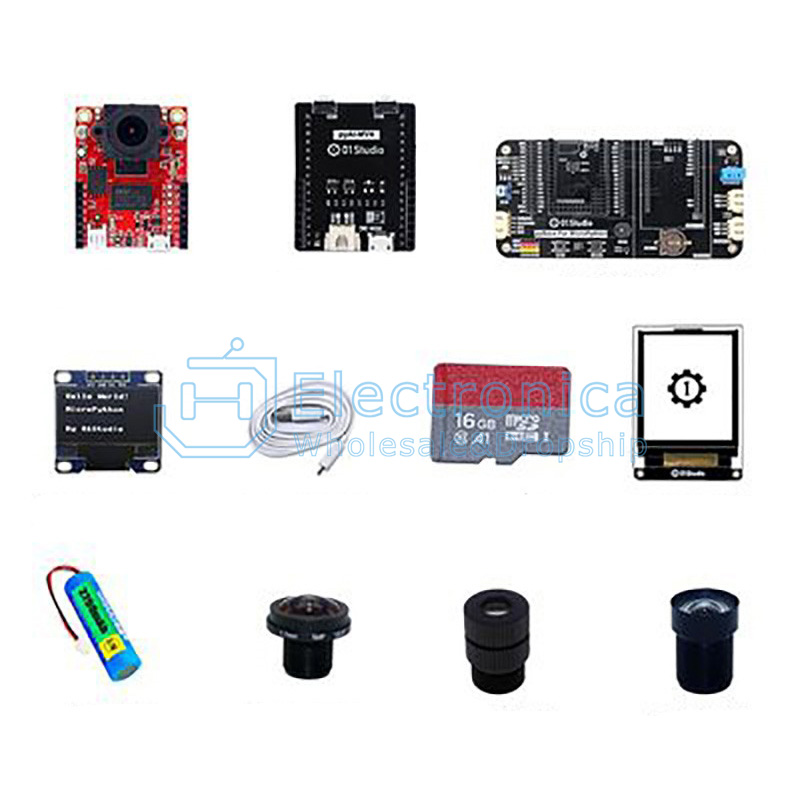

Multi-cam kit

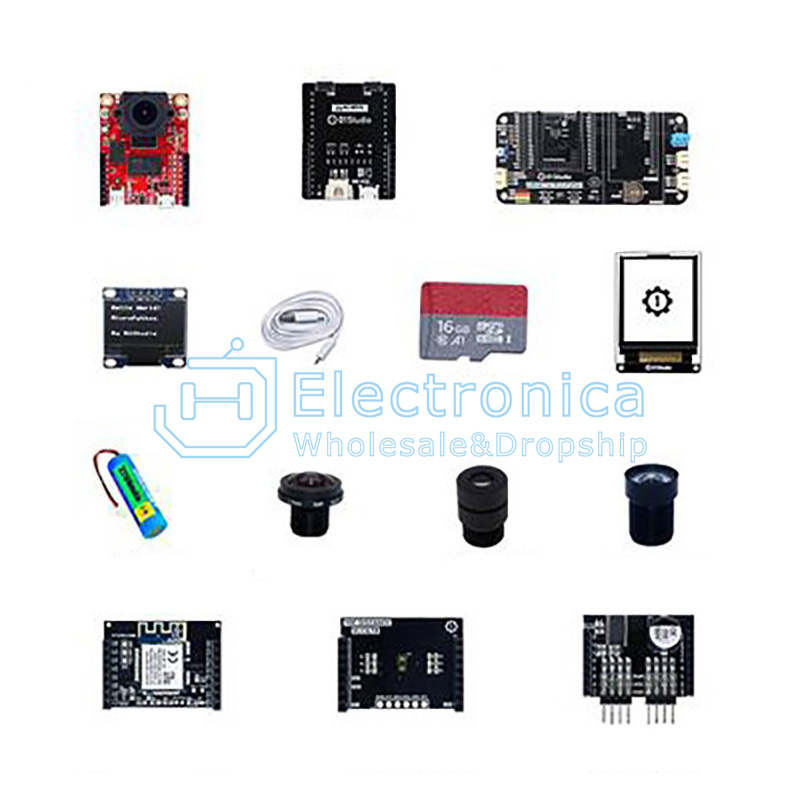

All-in-One Learning kit
