Description

1.Input Voltage: DC5V-15V
2.Input current: >=100MA
3.Output amplitude: 4.2V V-PP to 11.4V V-PP
4.Maximum output current: ≥15MA (5V power supply, V-PP greater than 50%), ≥5MA (12V power supply, V-PP greater than 50%)
5.The output requency range is selectable:
LF file: 1Hz ~ 50Hz IF file: 50Hz ~ 1kHz
High-frequency file: 1KHz ~ 10kHz
HF file: 10kHz ~ 200kHz
6.Adjustable pulse for the use of MCU
7.Size: 31.0 mm * 31.0 mm * 15.0 mm

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment .

We can accept customized package to meet different requirements :
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag .
2.Some fragile products such as the display screen can be packed in bubble bag .
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

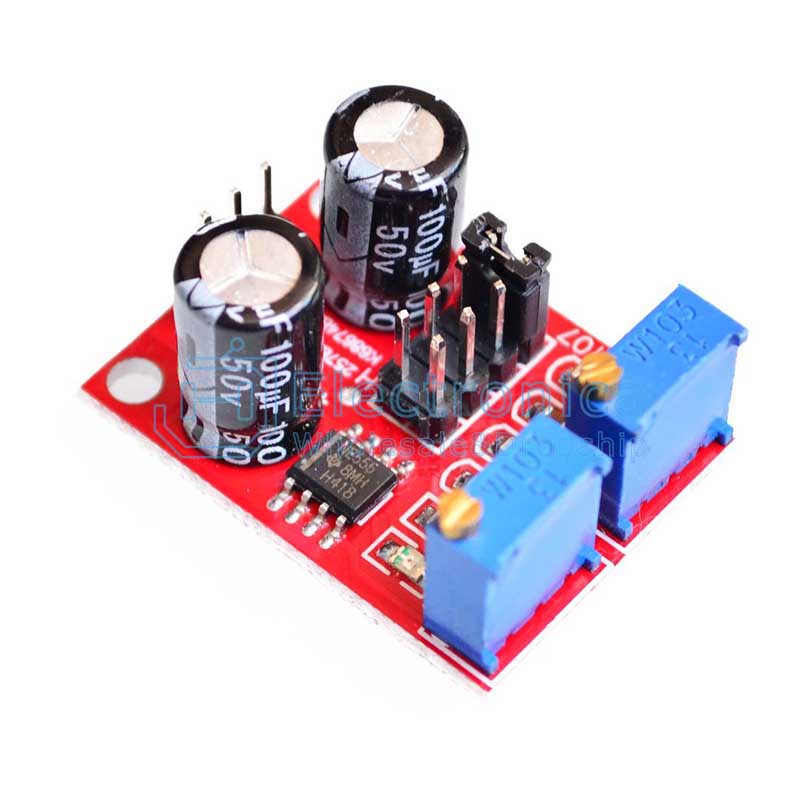

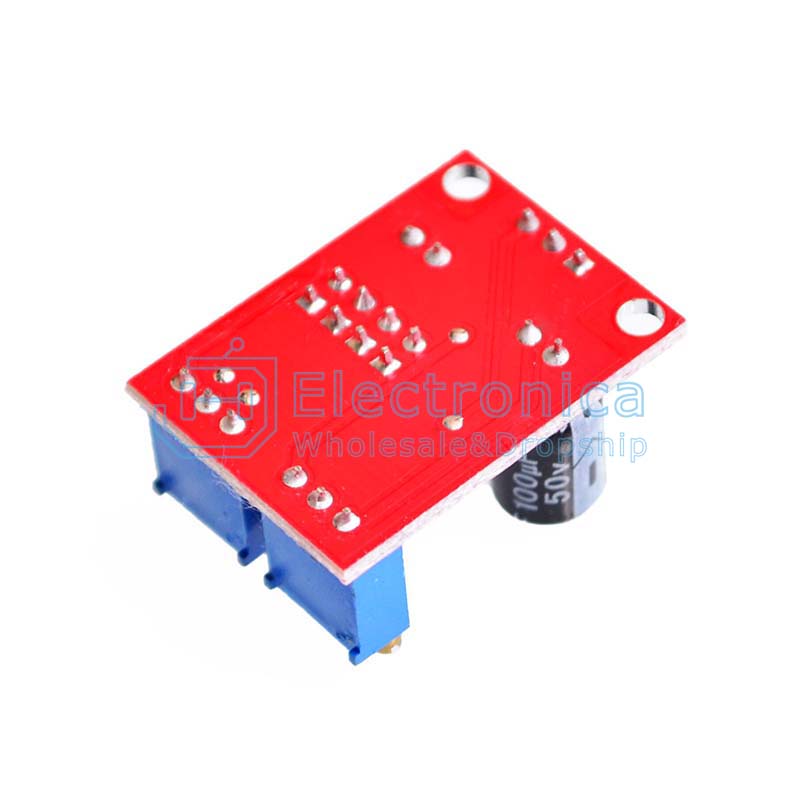

NE555 Pulse Frequency Duty Cycle Adjustable Module

SKU : YXA116 Brand : JH Stock

Price : $ 0.30

100 +: $0.30500 +: $0.301000 +: $0.30

Quantity :

- +

ADD TO CART
