Description

Product Parameters:
Color:green
Power supply:2.7-5.5Vdc
Typical working current at 3.3V:33mA
Maximum output data volume:500Ksps/16Bit

Product Description:

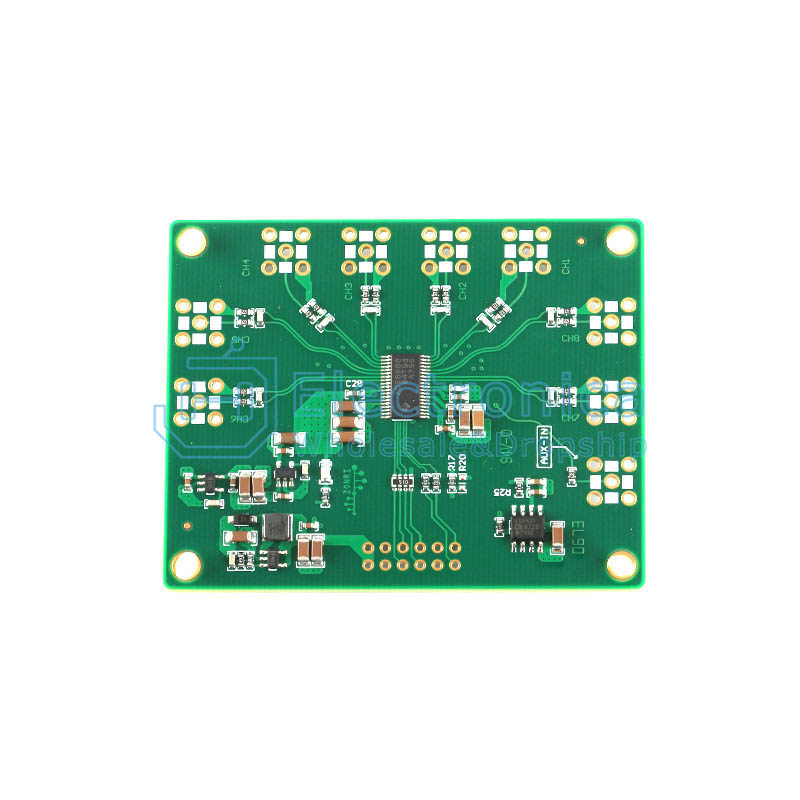

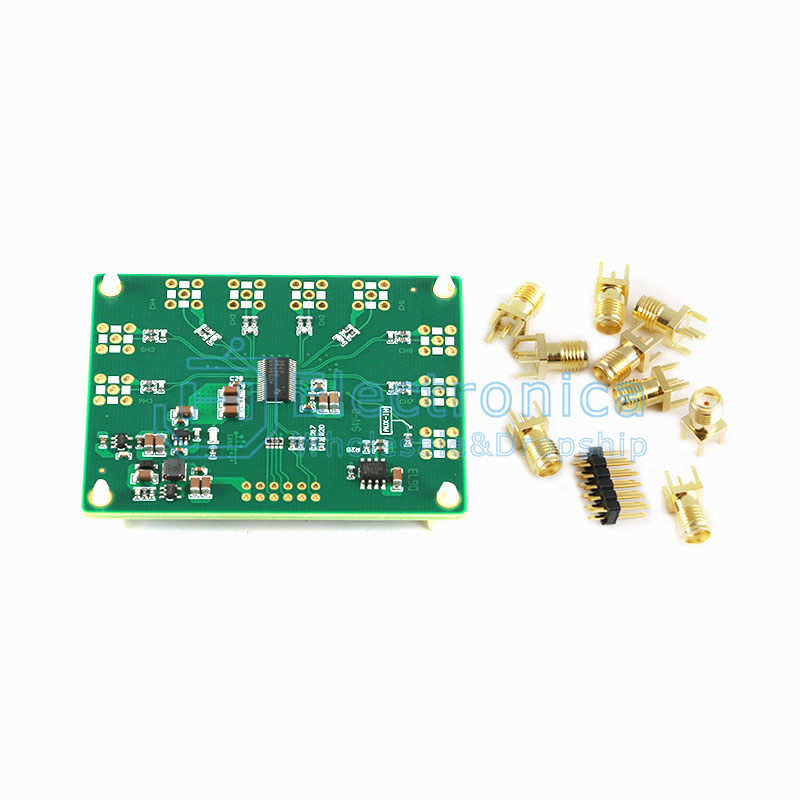

Complete ADS8688 application solution module
The module only requires a single power supply (2.7-5.5Vdc), with excellent power consumption performance and a typical working current of 33mA at 3.3V
The maximum output data volume is 500Ksps/16Bit
With 8-channel input and 1-channel AUX (direct ADC input), each channel can be individually configured with input range and polarity, supporting ± 2.56V, 5.12V, and ± 10.24V input ranges
Internal or external reference sources can be configured through resistor jumpers

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

ADS8688 16Bit/500Ksps Data Acquisition Module

SKU : YXS1099 Brand :

Price : $ 35.51

100 +: $35.51500 +: $35.511000 +: $35.51

Quantity :

- +

ADD TO CART
