Description
Size:30*13mm(DIP Type)
Detected Gas:Carbon Dioxide
Supply Voltage:DC(5.0±0.1)V
Average Current:<40mA
Peak Current:125mA
Interface Level:3.3V(Compatible with 5V)
Measuring Range:400~10000ppm
Operating Temperature:-10℃~50℃
Working Humidity:0~95%RH(Non-condensing)
Storage Temperature:-20℃~60℃
Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.
We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

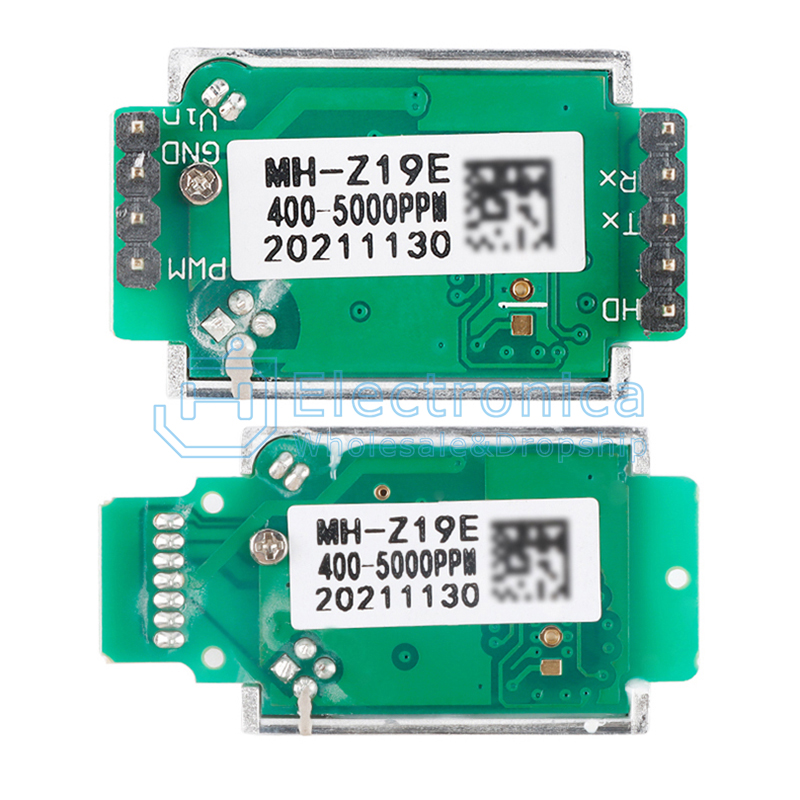

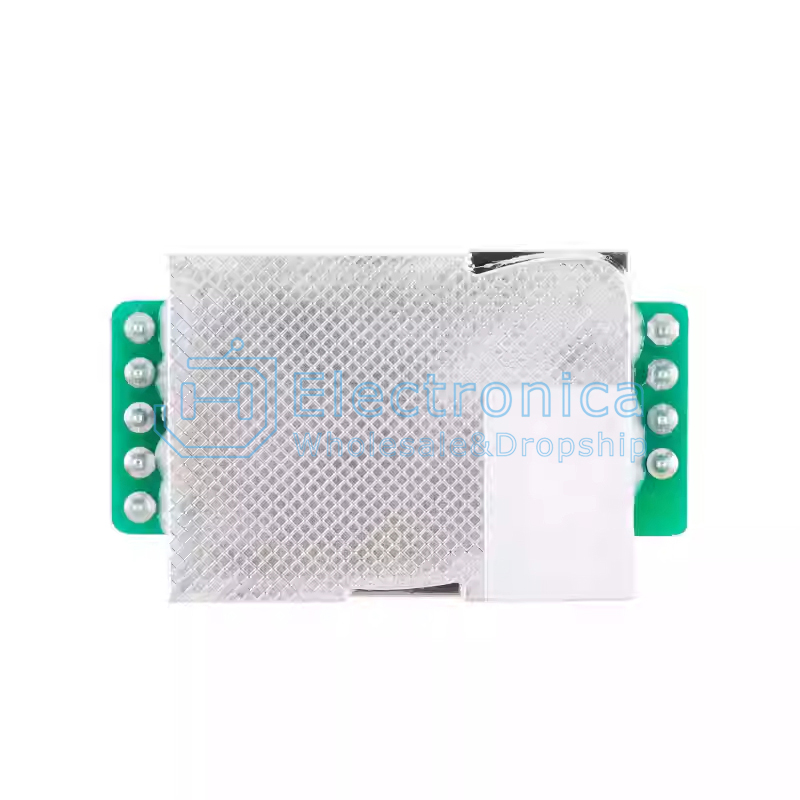

MH-Z19E Carbon Dioxide Gas Sensor
SKU : YXS1962 Brand :
Style：

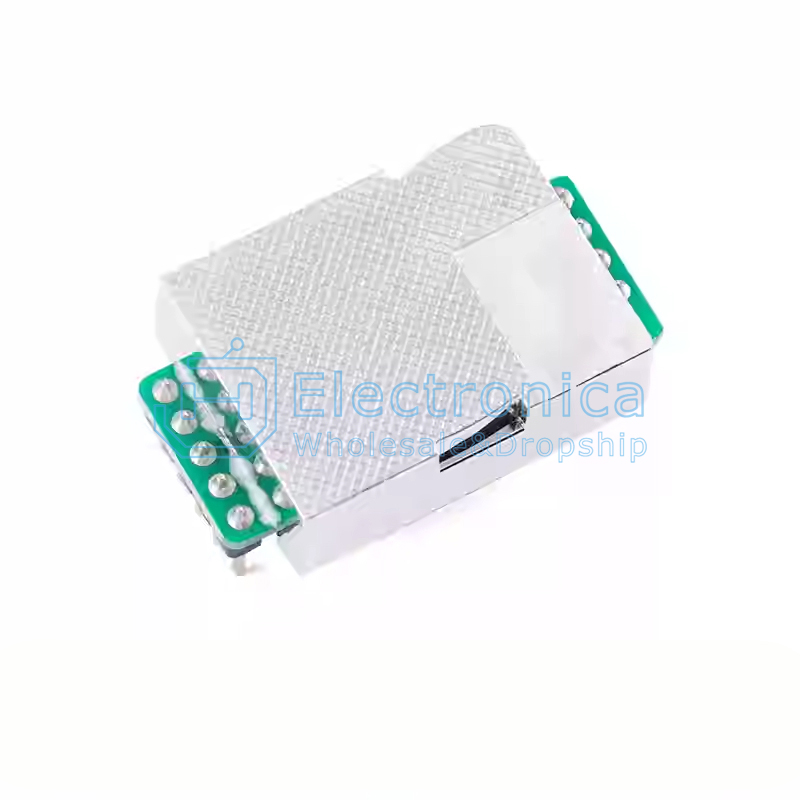

DIP Type

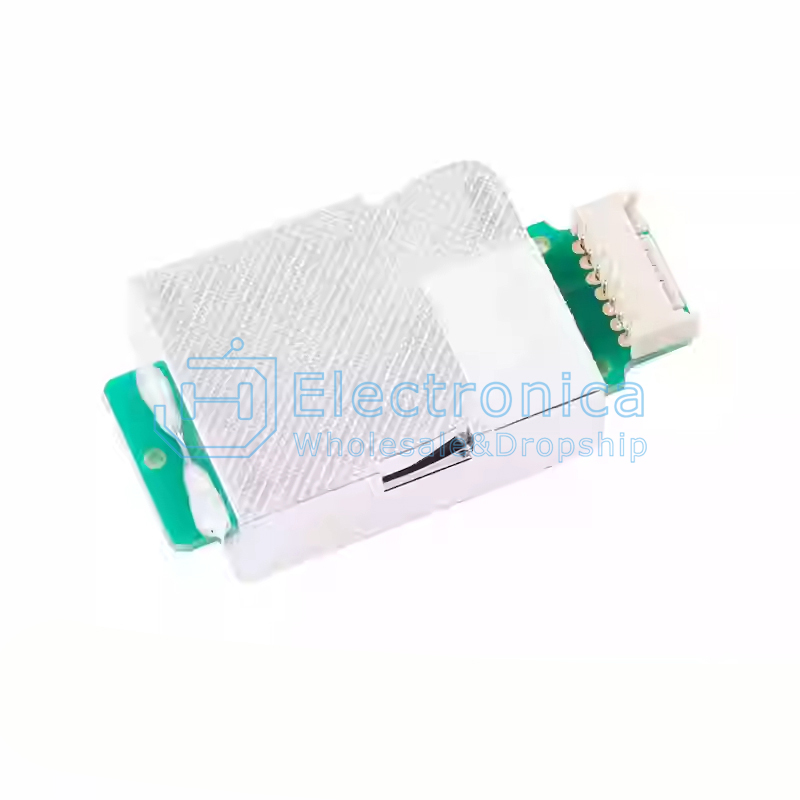

Terminal Type
