Description

Supply Voltage:5V DC
Operating Temperature:-20~80℃
Dimensions:18.5×16.4×3.45mm,0.73×0.65×0.14mm
Radial Misalignment (ER):±0.38mm/±0.015"
Tangeniatial Misalignment (ET):±0.38mm/±0.015"
Angular Misalignment (EA):±1.5°
Codewheel/Codestrip Tilt (CT):1°
Features:
Reflective technology
Surface mount small outline leadless package
Single channel incremental output
Two channel quadrature outputs for direction sensing
TTL compatible output
Single 5V supply
-20oC to 85oC absolute operating temperature
Encoding resolution options:36, 75, 150, 180 (lines/inch) or 1.42, 2.95, 5.91, 7.09 (lines/mm)

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

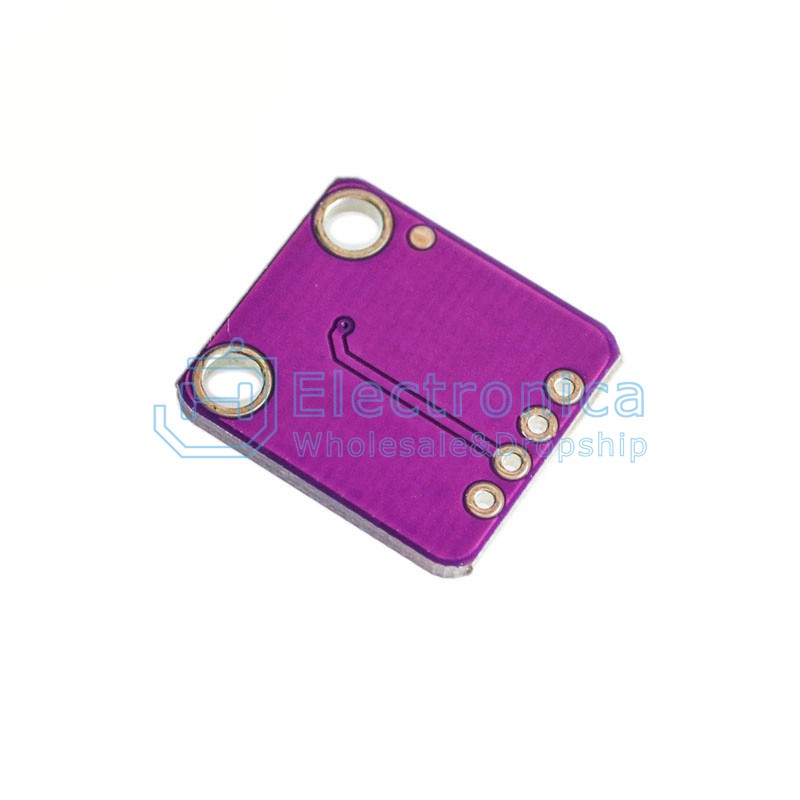

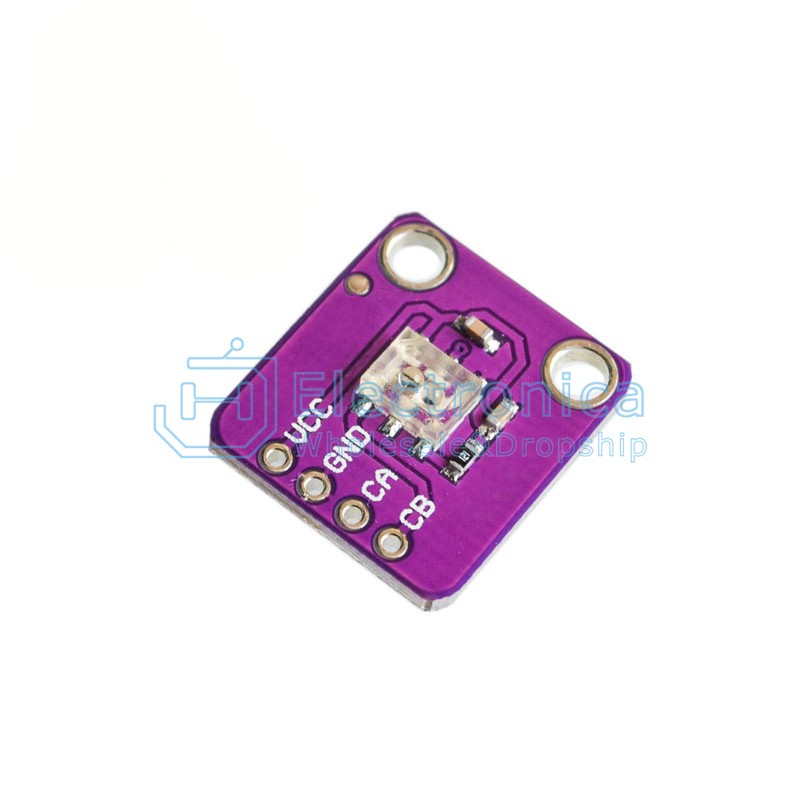

MCU-83 AEDR- 8300 2 Channel Optical Encoder

SKU : YXC1000 Brand :

Price : $ 1.79

100 +: $1.79500 +: $1.791000 +: $1.79
