Description

Light color:red,green,yellow,blue
Working voltage:red/green/yellow-2-15V,blue/white-4-15V
Board material:1.5mm glass fiber board
This circuit is a cyclic driving circuit composed of three transistors. Whenever the power is turned on, the three transistors will strive to conduct first, but due to differences in components, only one transistor will conduct first. Assuming that V1 is the first to conduct, the voltage of the V1 collector decreases, causing the left end of capacitor C2 to decrease, approaching 0V. Due to the fact that the voltage at both ends of the capacitor cannot suddenly change, the base of V2 is also pulled to approximately 0V, V2 is cut off, and the collector of V2 is at a high voltage. Therefore, the LED L5-L8 connected to it is illuminated

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

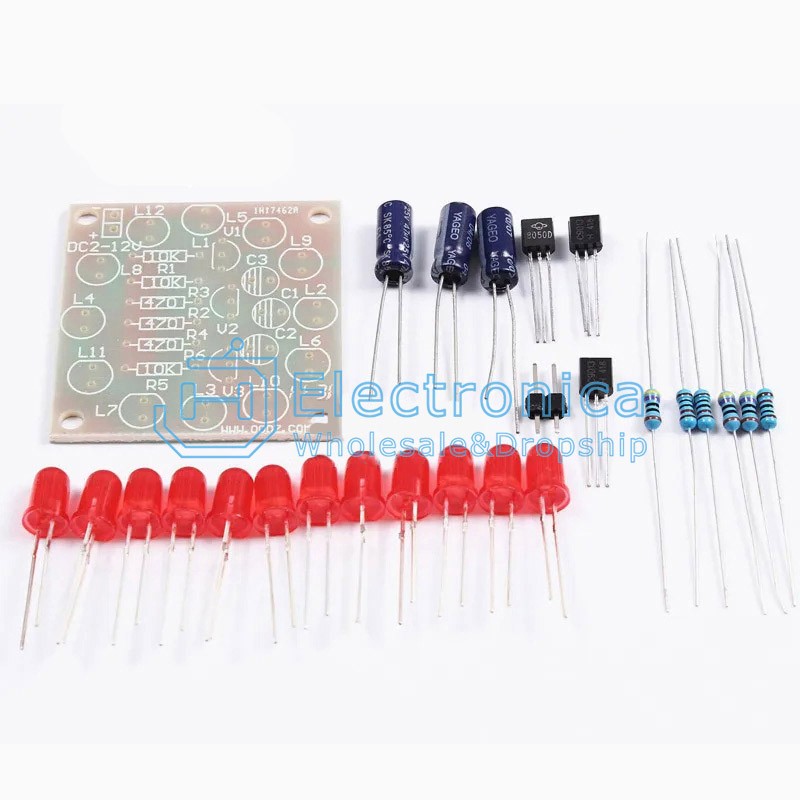

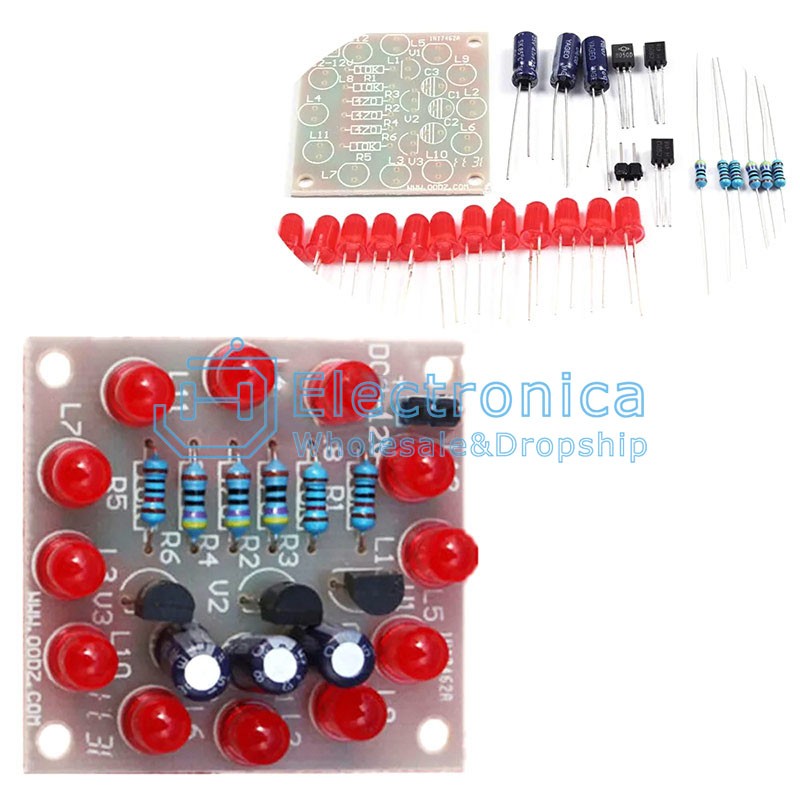

LED Circuit Lamp Kit

SKU : YXS728 Brand :

Price : $ 0.32~0.43

100 +: $0.32~0.43500 +: $0.32~0.431000 +: $0.32~0.43

style：

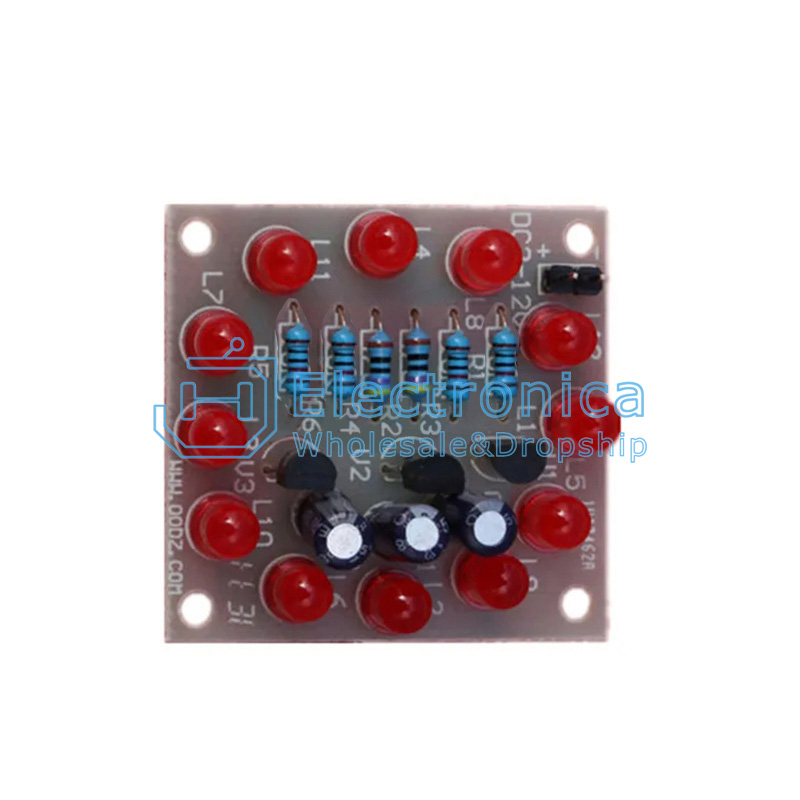

Red with red light

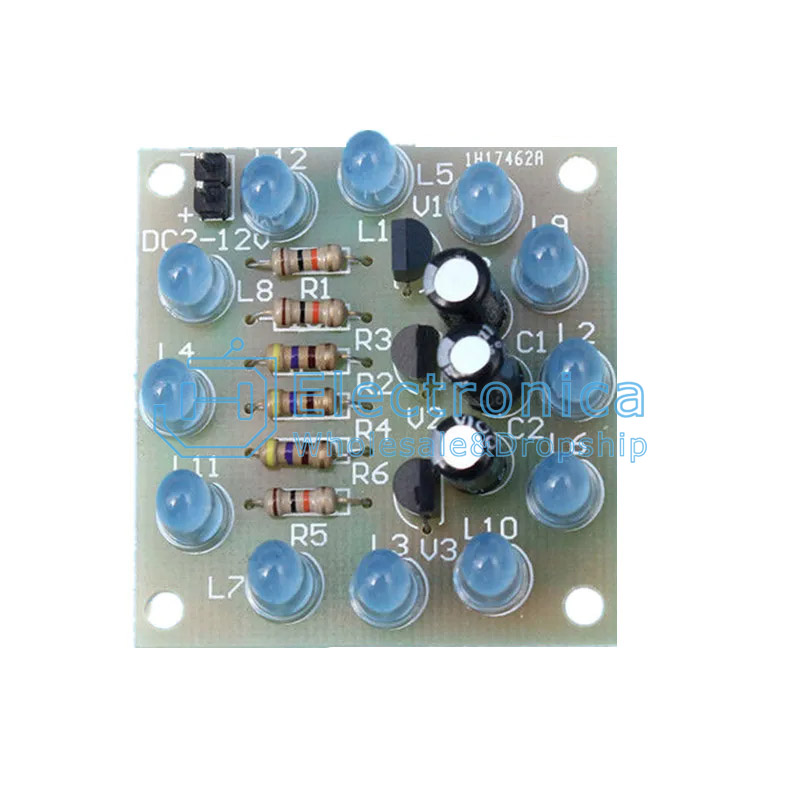

Blue with blue light

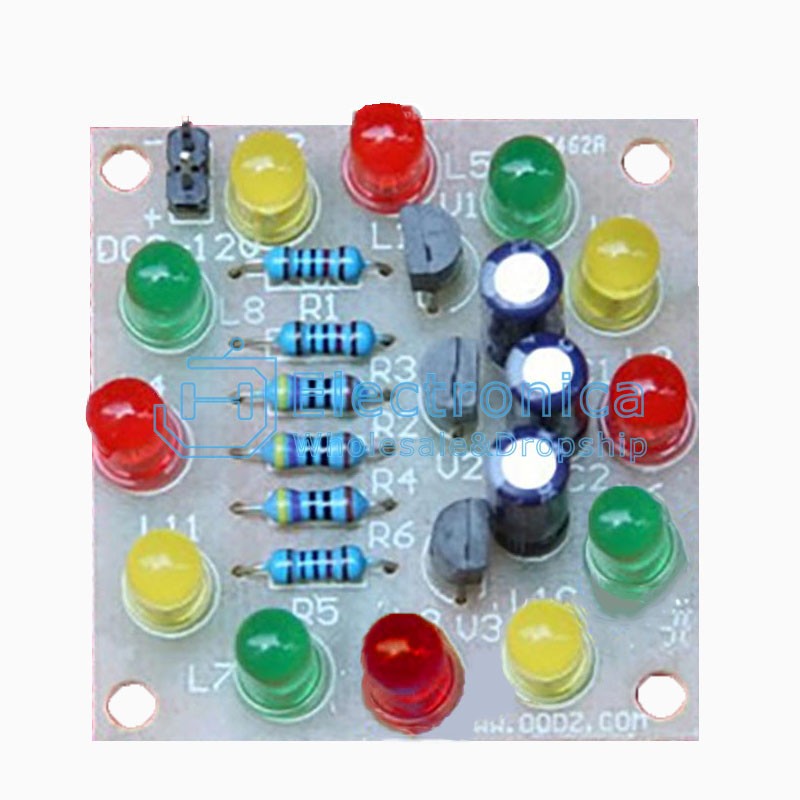

Colorful light(red,green,yellow)

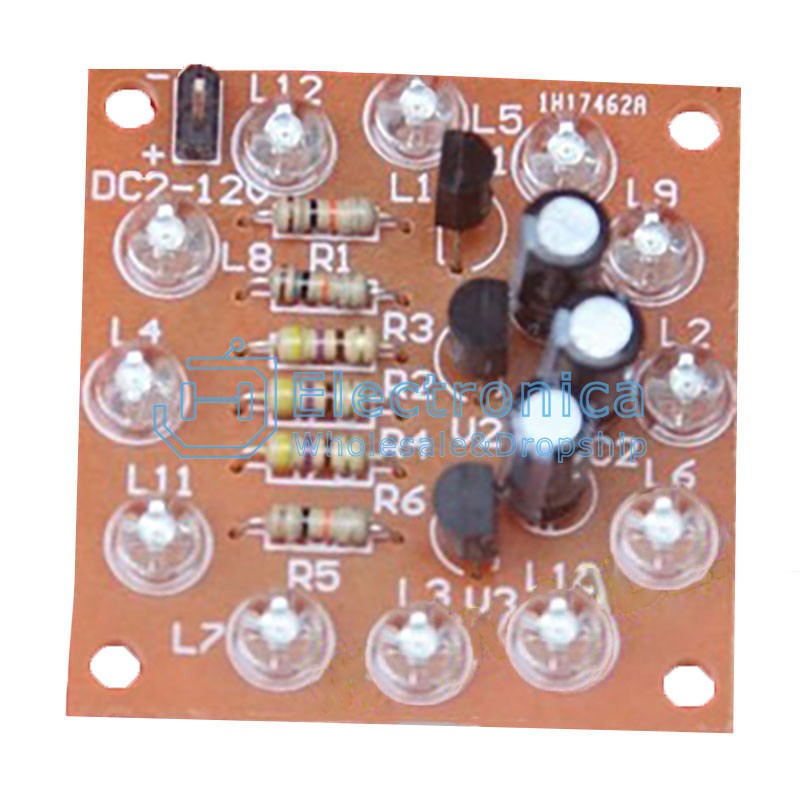

Rosin board random color

Quantity :

- +
