Description

Product Parameter:
PCB size:84×40mm
Power supply voltage:DC 5V

Function Description:

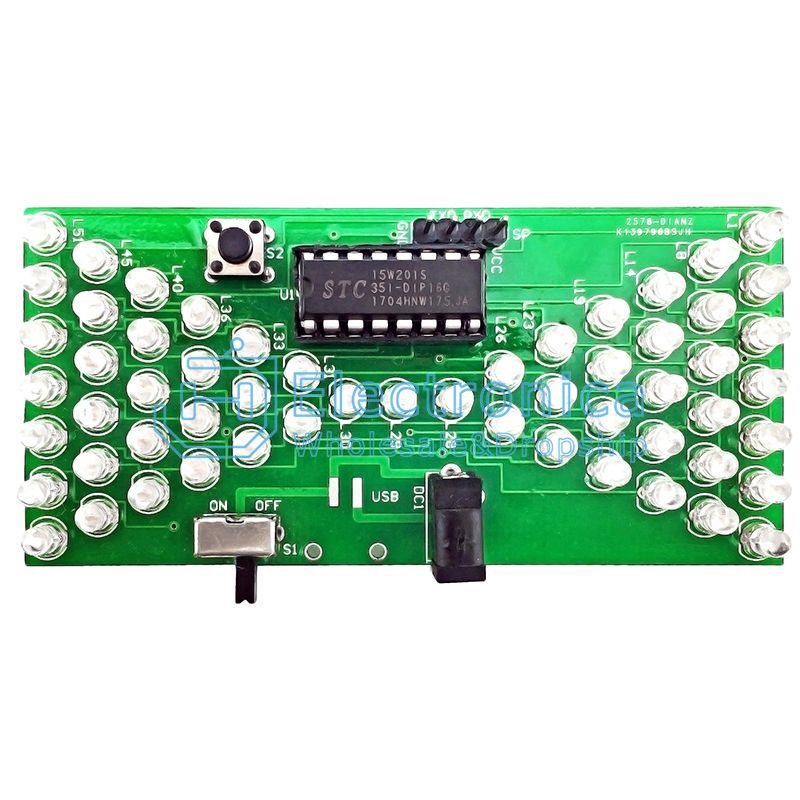

The electronic hourglass uses light-emitting diodes controlled by electronic circuits to represent sand particles and simulate the movement process of the hourglass. The electronic hourglass will be like an hourglass, with the upper sand particles (illuminated light-emitting diodes) falling one by one, and the lower sand particles piling up one by one. After the leakage is completed, press the restart switch once, and the hourglass will start leaking down again, one by one

Component List:
Light emitting diode(white hair blue 3MM) 57
Single chip microcomputer(STC15W201S) 1
Toggle switch(1P2t) 1
PCB(84*41MM) 1
DC seat(3*1.2) 1
Pin arrangement(4P) 1
Light touch switch(6*6) 1
Monolithic capacitor(334) 1

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

LED Lamp Electronic Hourglass DIY Kit

SKU : YXS720 Brand :

Price : $ 0.19~1.27

100 +: $0.19~1.27500 +: $0.19~1.271000 +: $0.19~1.27

Style1：

Style2：

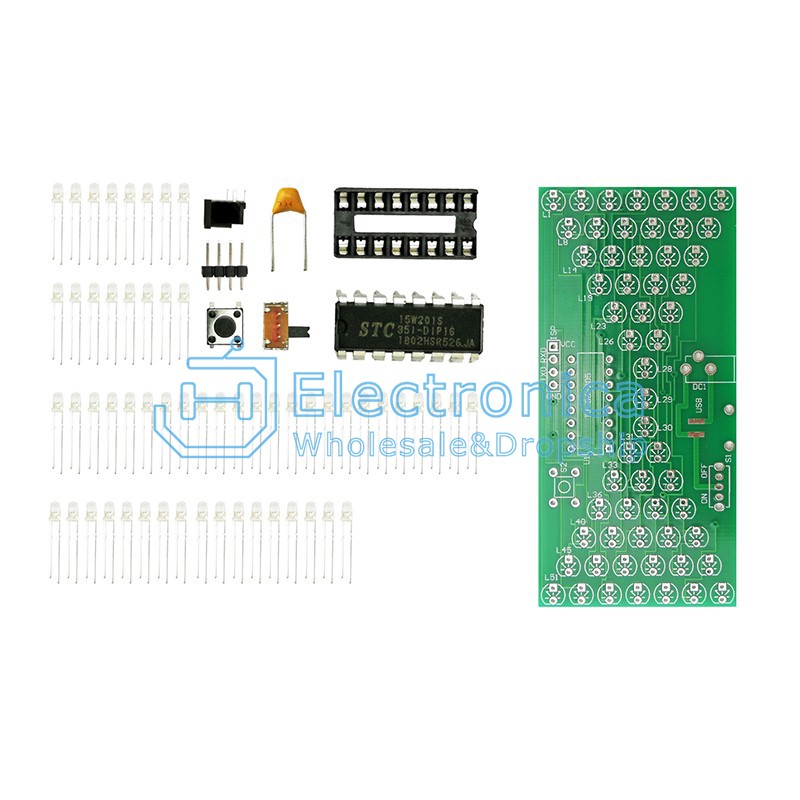

Kit

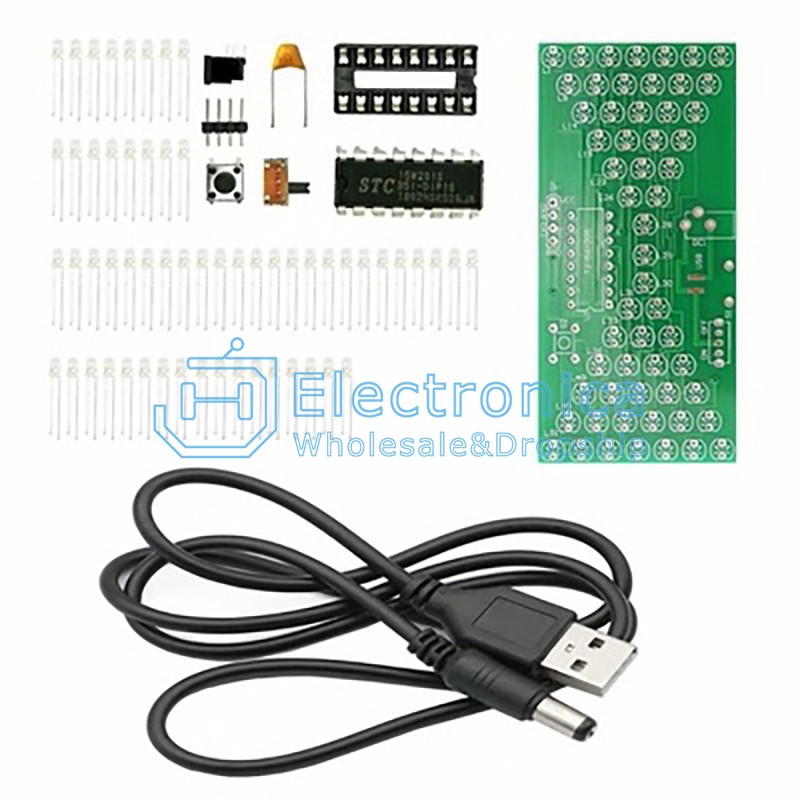

Kit+DC cable

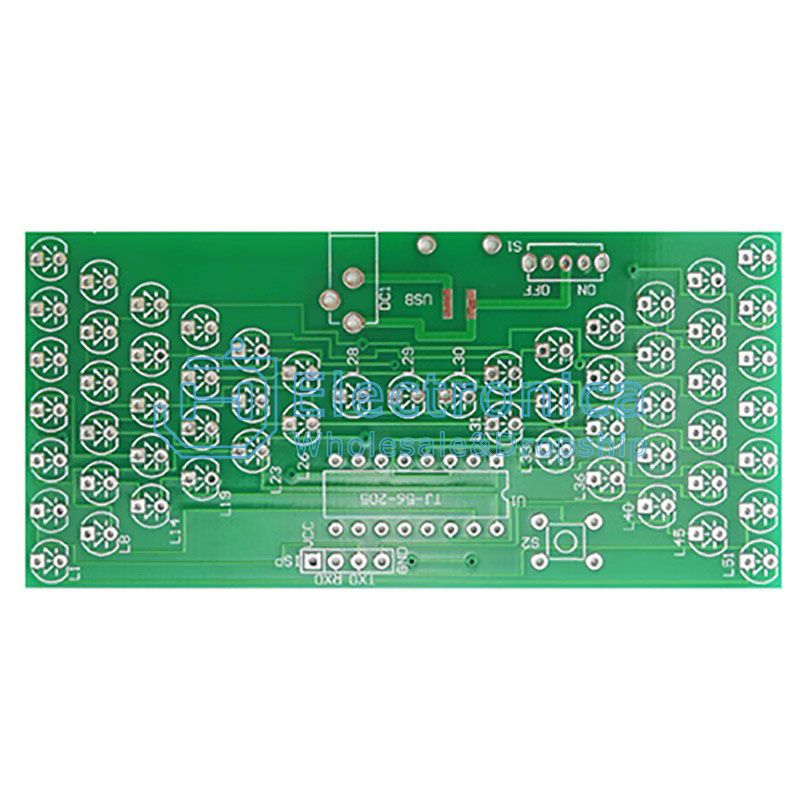

PCB Board

Quantity :

- +

ADD TO CART
