Description

Supply voltage:DC 9V
Operating current:25mA
Resistance measurement resolution:0.1Ω
Maximum measurement value:50MΩ
Display:128*64
Backlight color:yellow-green
Capacitance measurement range:25PF-100MF
Functions:
Added boot voltage detection function
Automatic detection of NPN and PNP transistors,N-channel and P-channel MOSFETs,diodes(including dual diodes),thyristors,transistors,resistors and capacitors and other components
Automatically test out the pins of the component and display them on the LCD
It can detect the amplification factor and base of transistors,MOSFET protection diodes,etc.,and determine the forward bias voltage of the emitter transistor
MOSFETs that measure gate threshold voltage and gate capacitance
Monitor using 12864 LCD(128*64 characters)
Higher test speed,expiration date component test:in 2 seconds(except in larger capacitors,large capacitance measurement takes a long time,measurement time of 1 minute is normal)
One-key operation,boot test,one-click done
Power consumption off mode:<20 nA
Automatic shutdown function,can avoid unnecessary waste,save battery energy,improve battery life.

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

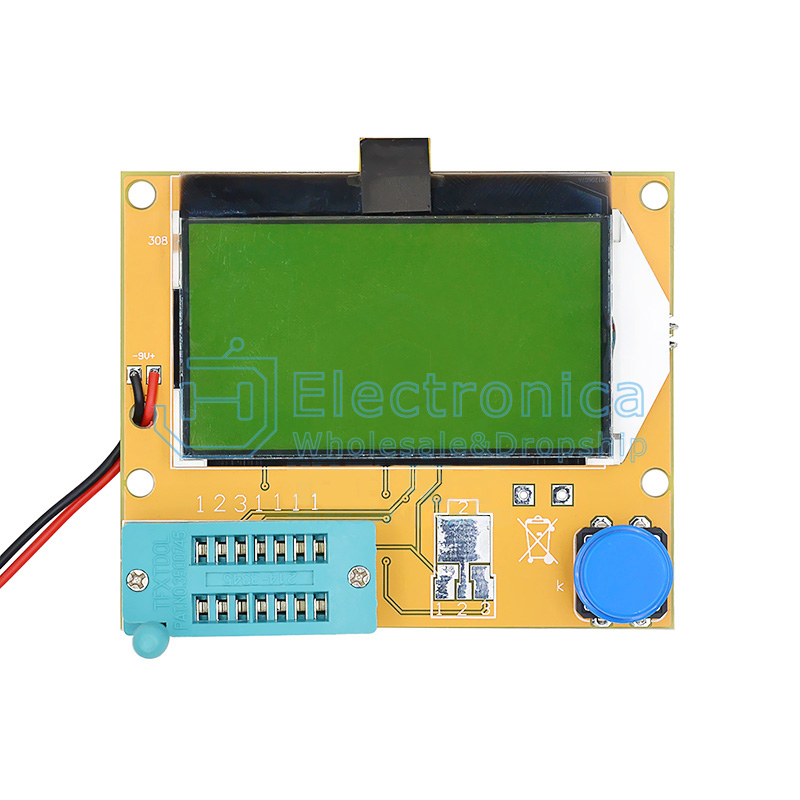

LCR-T4 Graphical Transistor Tester

SKU : YXS1357 Brand :

Price : $ 0.63~5.58

100 +: $0.63~5.58500 +: $0.63~5.581000 +: $0.63~5.58

Style：

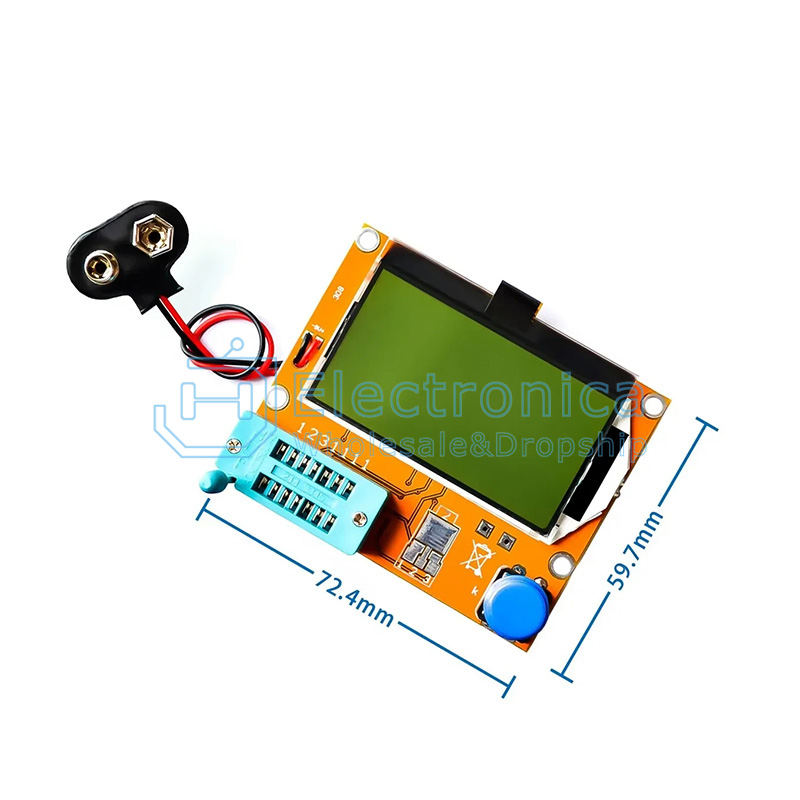

LCR-T4 tester(battery clasp)

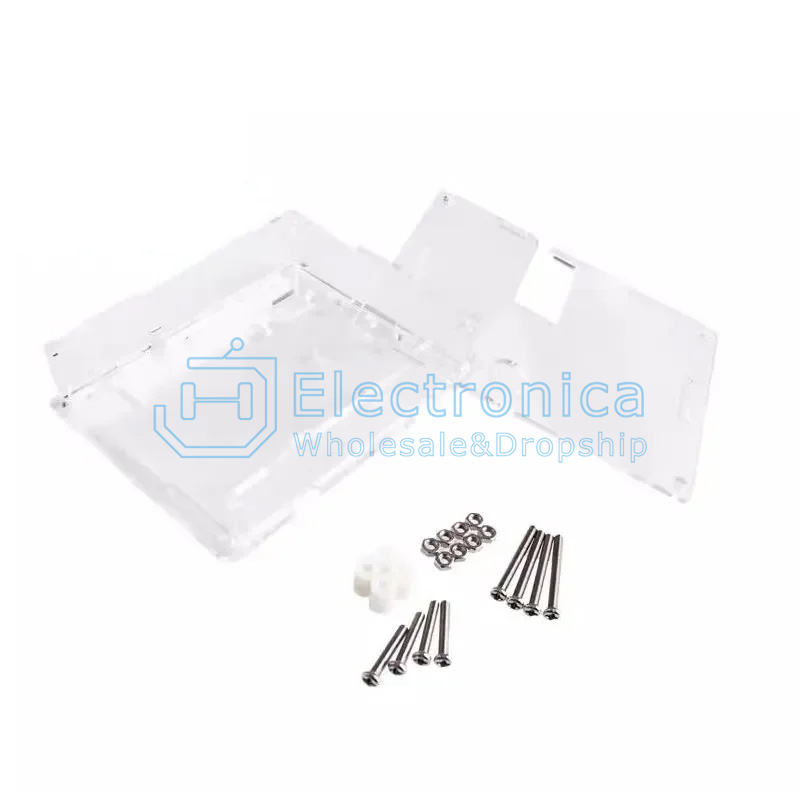

LCR-T4 tester shell

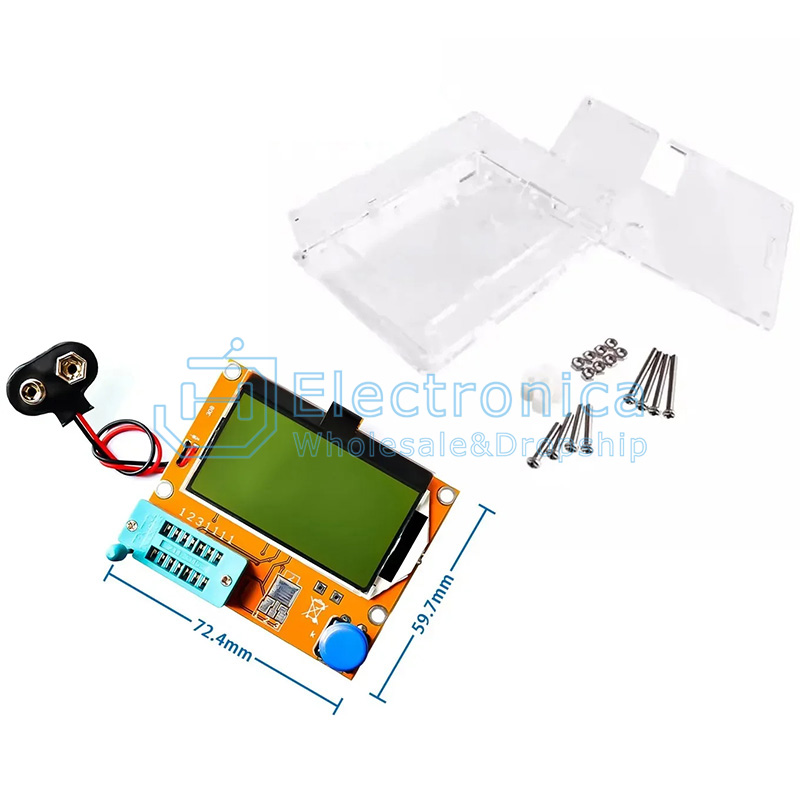

LCR-T4 tester(battery clasp)+shell

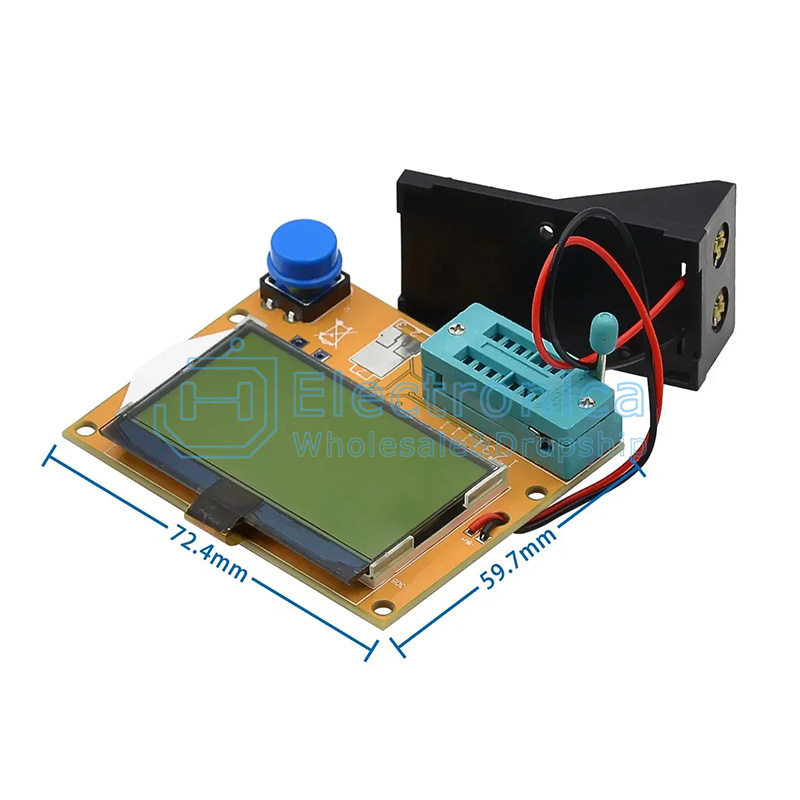

LCR-T4 tester(battery box)

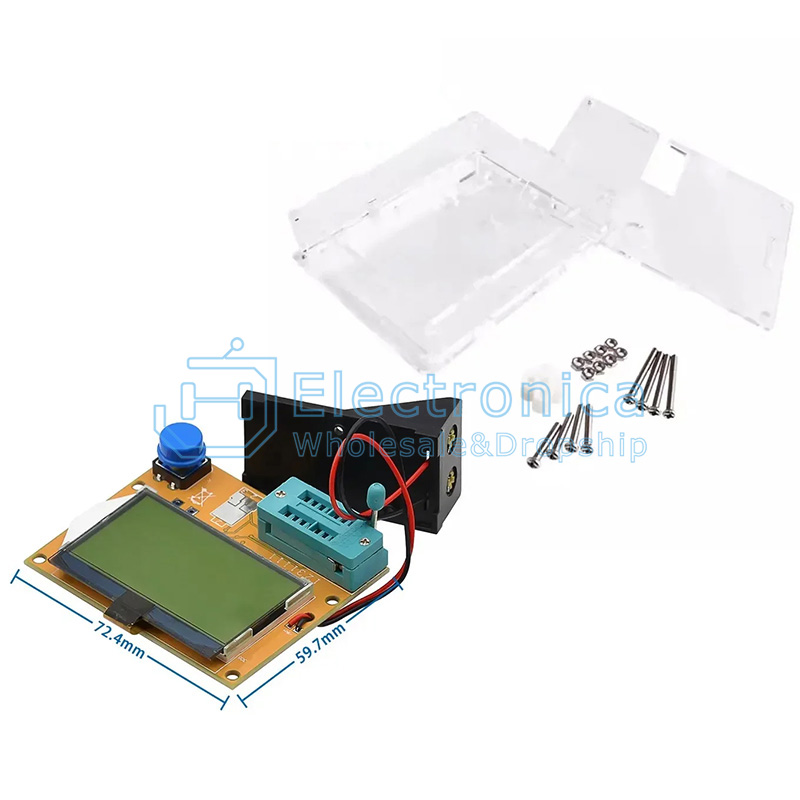

LCR-T4 tester(battery box)+shell
