Description

Features:
1.FT232RL main control chip,fast speed and good stability.
2.Support Windows XP/WIN7/WIN8/WIN10 32-bit/64-bit systems.
3.Stable speed up to 3Mbps(3 times of 921600).
4.Power supply VCC and signal level(including flow control pin CTS/RTS/DTR/RI/DCD) can be freely switched at 5V/3.3V/1.8V to adapt to different voltage systems.
5.Integrated power (blue),receiving (green),sending (red) three indicators.
6.Onboard 500mA self-recovery fuse,automatically disconnect when overcurrent/short circuit,effectively protect computer security.
7.Strong power supply capacity,maximum output 500mA current,can drive most of the single-chip microcomputer system board.
8.Integrated protection diode,signal line occasionally abnormal voltage will not damage the module.
9.Lead out CTS/RTS/DSR/RI/DCD signal pin,can be convenient for hardware flow control.
10.Small size and high integration,PCB is only 20*50mm,and only occupies the width of a USB interface,even if the USB port distance is very tight on the computer does not affect the insertion of other devices.

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

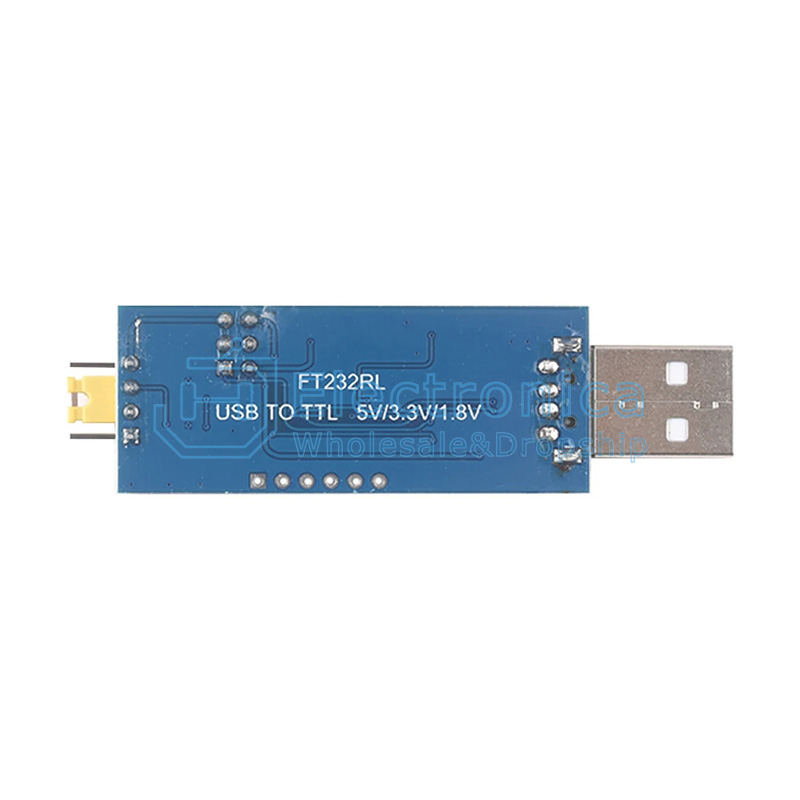

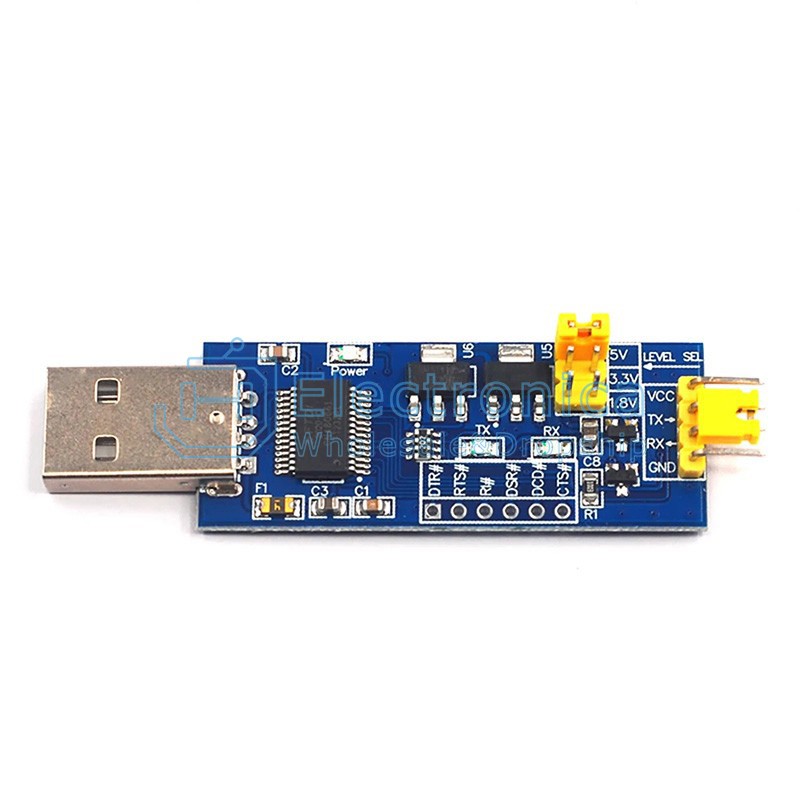

FT232RL USB to TTL Serial Port Module

SKU : YXC1066 Brand :

Price : $ 1.71

100 +: $1.71500 +: $1.711000 +: $1.71

Quantity :

- +

ADD TO CART
