Description

Product Parameters:
Supply voltage:DC4.5-5.5V
PCB size:8.9*8.9mm
Cae size:10*10*2.7mm

Product Overview:
This kit consists of 50 colorful fast flashing LEDs arranged in a five pointed star pattern. After inputting 5V power and turning on the switch, under the control of STC15W408AS microcontroller programming, which 10 ports of the microcontroller output a low level, the corresponding 2 LEDs will be lit. Each 2 LED can be programmed to light up at every moment, and then continuously lit and extinguished. The LED combination can present a colorful and beautiful flowing light animation effect

Component List:
Resistance 1K, color ring: brown black black brown brown 10
Colorful Flash LED 50
Singlechip STC15W408AS 1
Single chip microcomputer base 28P 1
DC002 power socket 1
Direct key switch 1
Double pass copper column M3*10 4
Screw M3*6 4
Power cable 1
PCB board 1

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

Five-Pointed Star LED DIY Kit

SKU : YXS731 Brand :

Price : $ 3.76~4.44

100 +: $3.76~4.44500 +: $3.76~4.441000 +: $3.76~4.44

style：

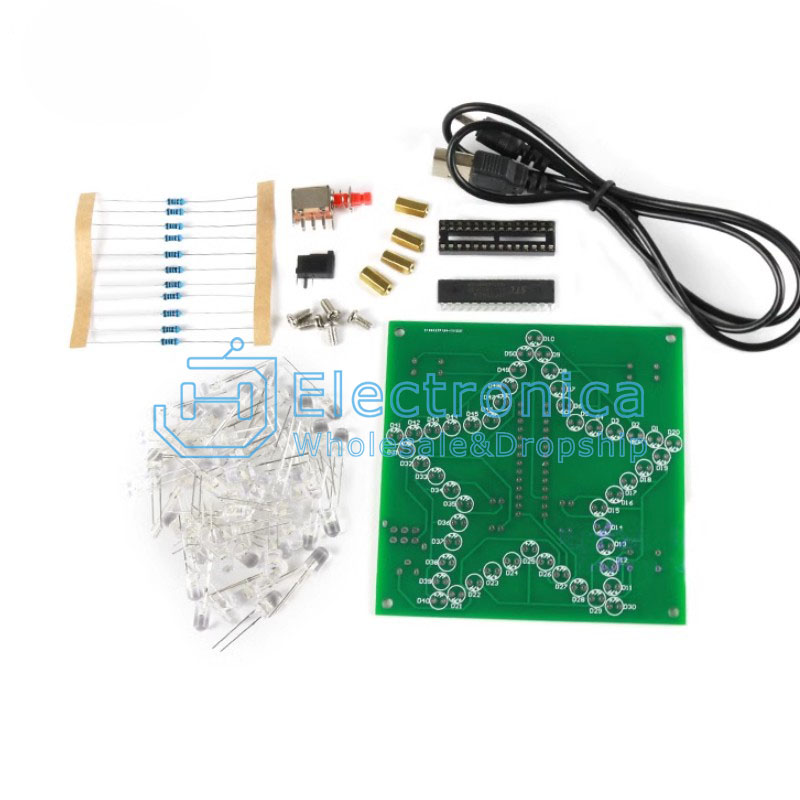

Kit without case
Kit with transparent case
