Description

Size:50×50mm
Chip:NE555+CD4017
Voltage:3.5-6V

Product Overview:
The lucky wheel is a tool that first predicts where the rotating disk will stop when it stops. It can also be used as number estimation games, electronic dice, lottery machines, etc. The electronic lucky turntable achieves the same function electronically. This kit configures 10 LEDs into a circle. When the button is pressed, each LED turns on light in turn. At the beginning, the flow speed is very fast, and it looks like all the LEDs are flashing together. The flow speed will become slower and slower, and finally stop at a certain LED and no longer move. If the LED that lights up in the end matches the player's prediction, it means "winning"

Component List:
NE555 1
CD4017 1
Triode S9014 1
6*6*5 buttons 1
Electrolytic capacitor luf 1
Electrolytic capacitor 47uf 1
1N4007 1
1/4W metal film resistor 10K 1
1/4W metal film resistor 470K 2
5mm LED red light 10
2P pin arrangement 1

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

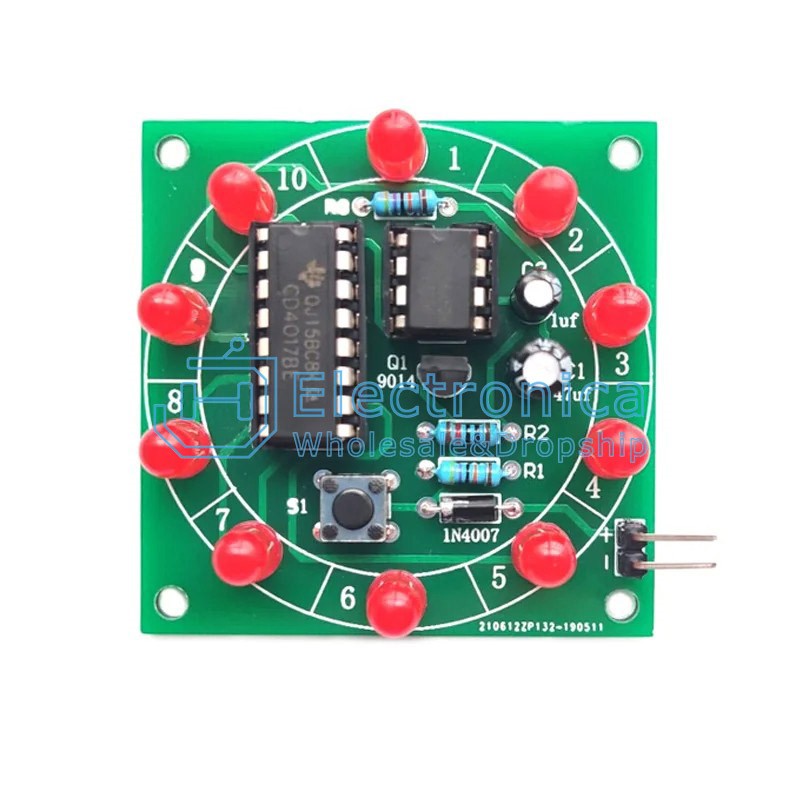

Electronic Lucky Turntable DIY Kit

SKU : YXS1258 Brand :

Price : $ 0.12~0.53

100 +: $0.12~0.53500 +: $0.12~0.531000 +: $0.12~0.53

Style：

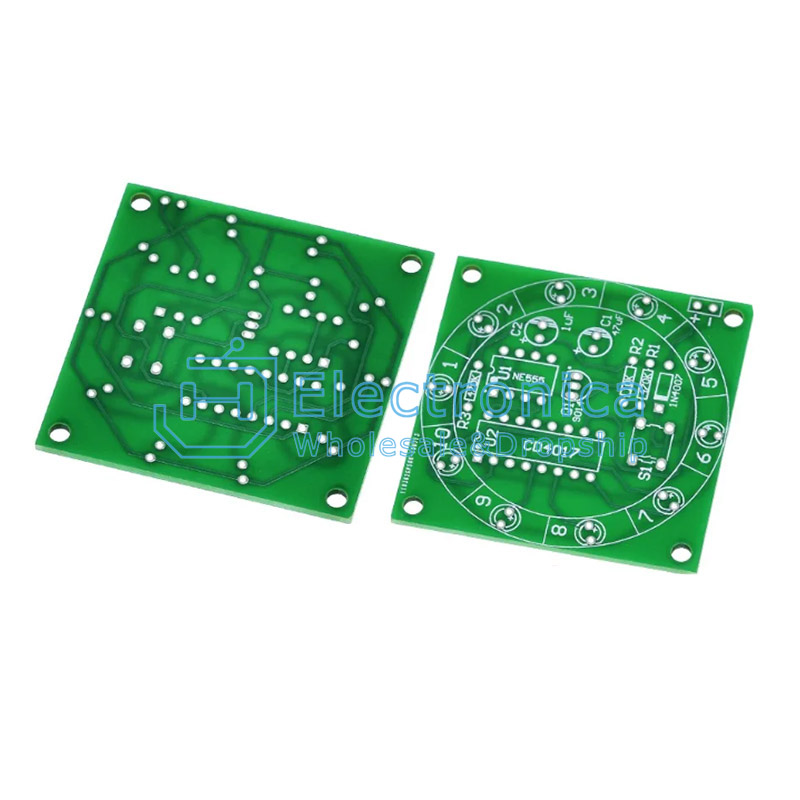

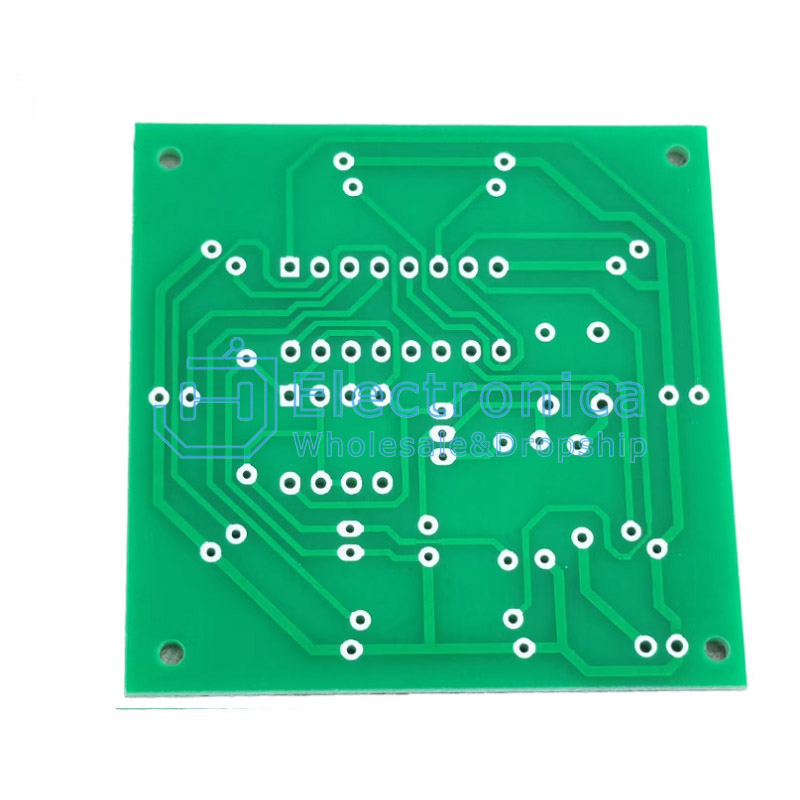

PCB board

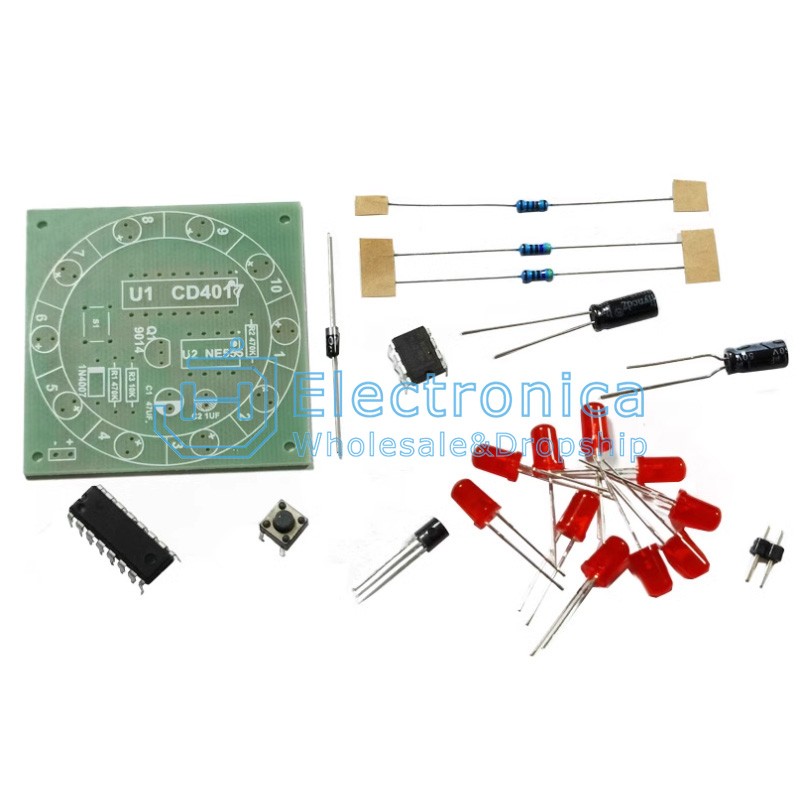

PCB board+components
PCB board+components+3*AA battery box
