Description
Working voltage:3V-4.5V
Output horn power:0.25W-2W 8 ohms

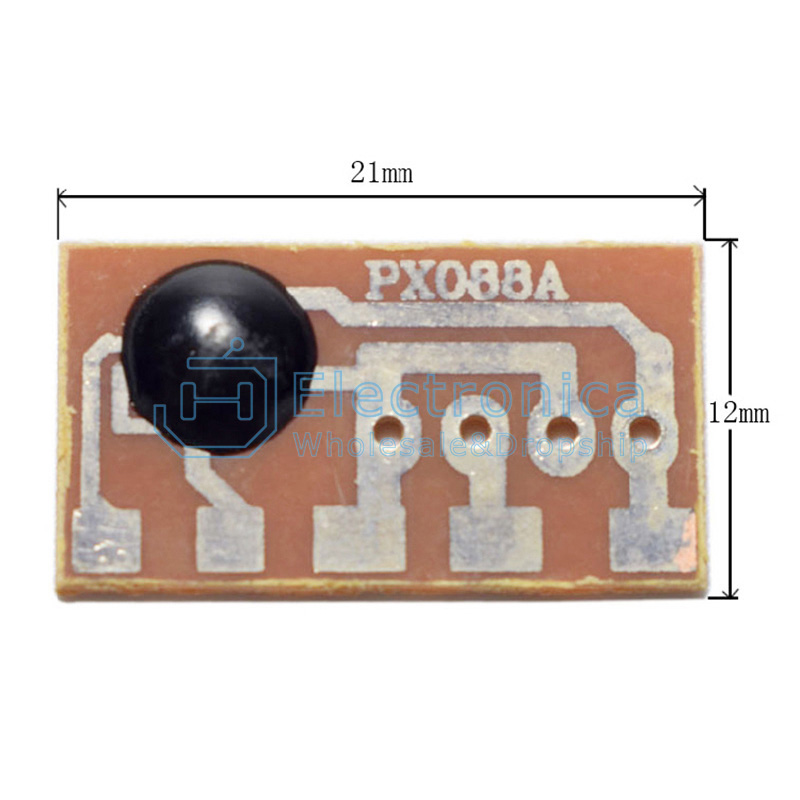

Size:21mm×12mm
Trigger mode:None (long sound/power on playback)
Battery type:button battery/dry battery/lithium battery
Product Introduction:

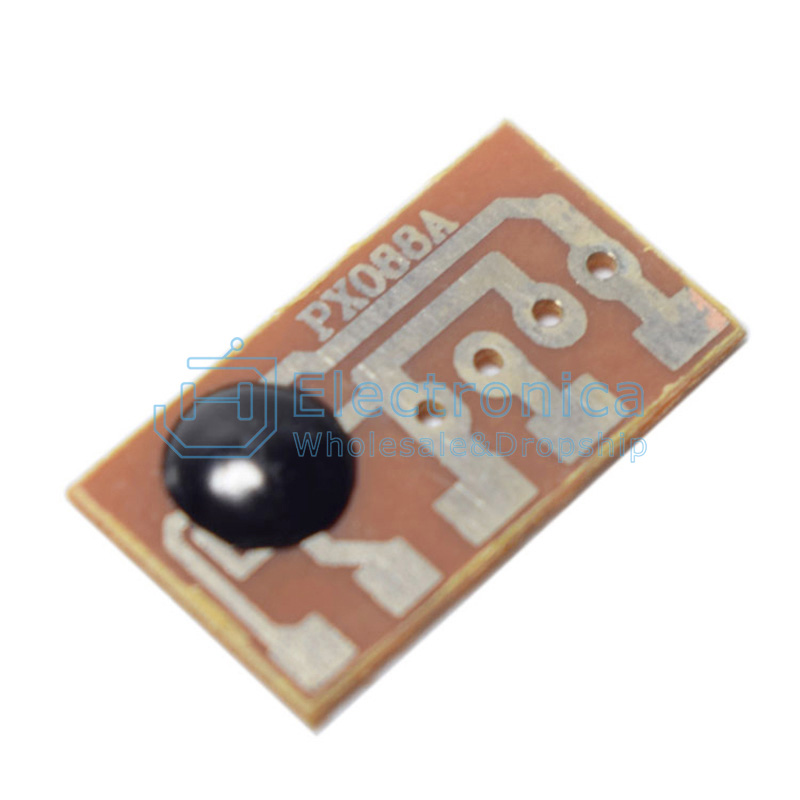

This is a pre recorded music chip module suitable for amateur projects. The circuit board needs to be soldered with S8050 transistors (amplifiers), capacitors, and speakers to achieve good output sound. Connect according to the circuit below. If you press the button, it will emit a 3-second bird push sound and repeat when the circuit is open. We also have a DIY project kit related to this music module (AK-190)
Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.
We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.
Music Chip Circuit Board DIY Kit
SKU : YXC1215 Brand :
Style：

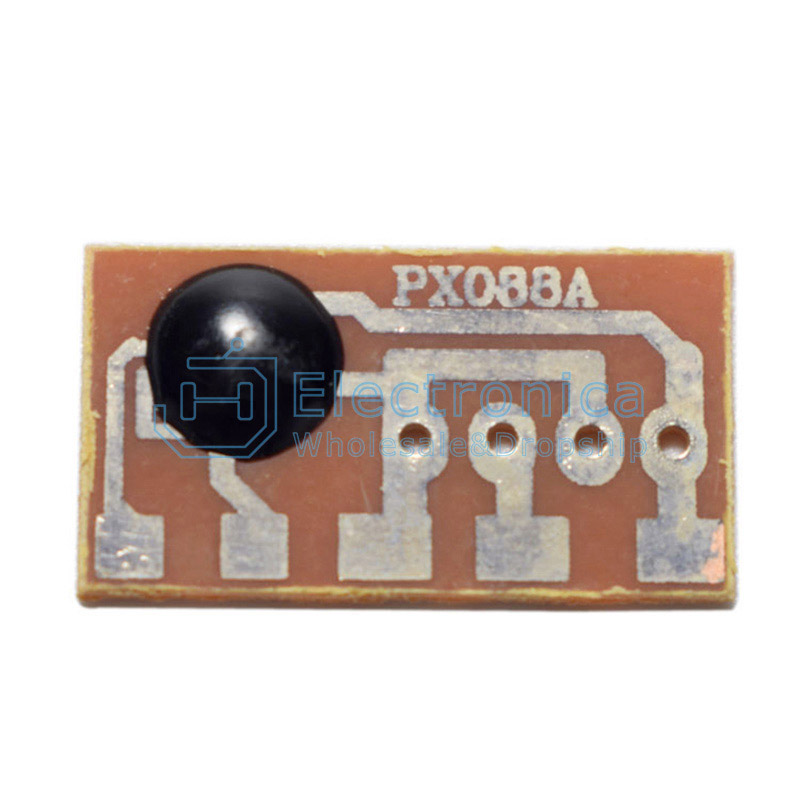

Single chip

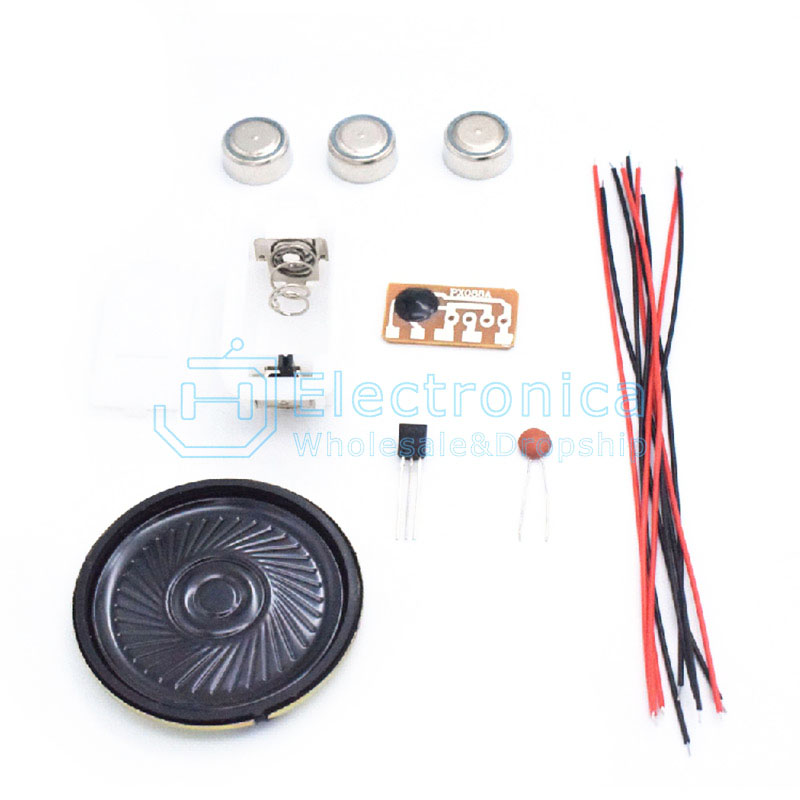

Unwelded kit

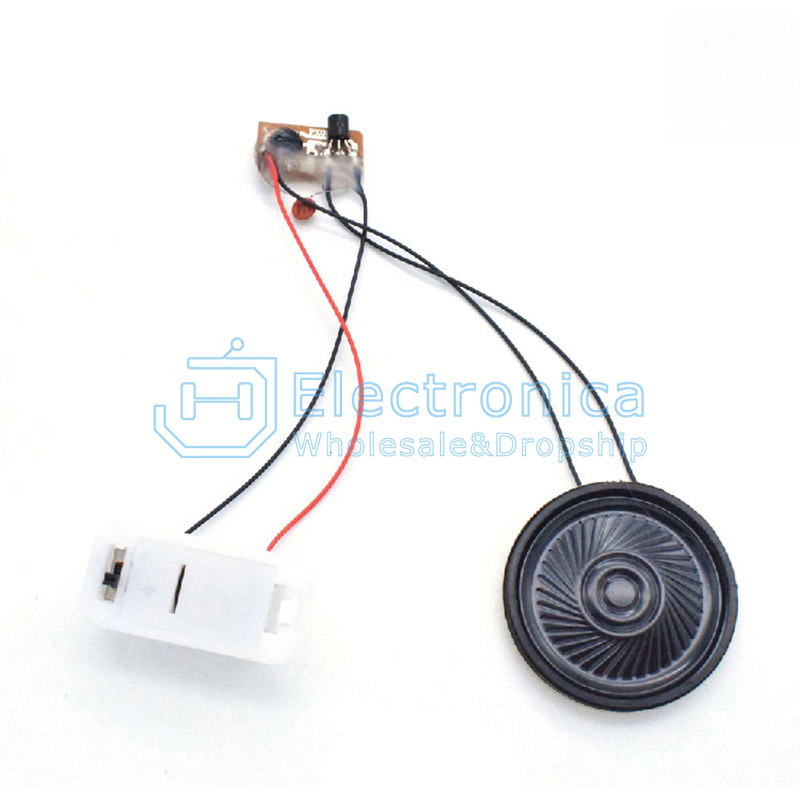

Welding kit
