Description

Product Parameters:
Working voltage:DC3.3-5.5V
Size:74.4*43.7*24mm
Speed:asjustable
LED color:red

Product Introduction:
The hourglass, also known as an hourglass, is a device that measures time and represents the passage of time. With the passage of time, the hourglass is no longer just a timekeeper, but also a symbol of love, friendship, and happiness. This kit simulates the sand flow state of the hourglass, using LEDs instead to simulate the operation of the hourglass

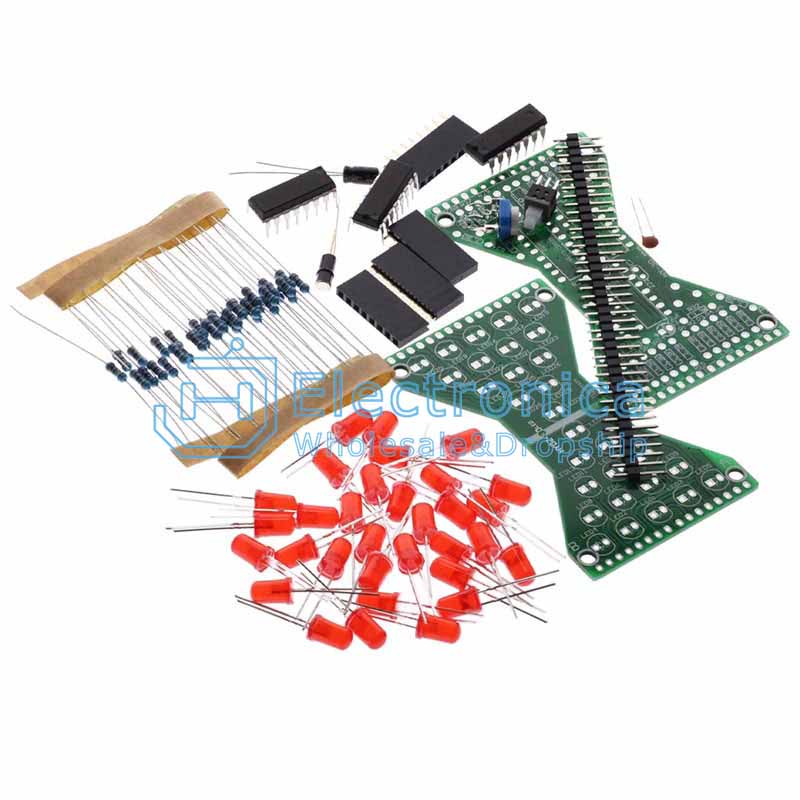

Component List:
Resistance 3.3K (R1-R30, R32, R33) 32
Resistance 1M (R31) 1
Electrolytic capacitor 22uf (C1) 1
Ceramic capacitor 222p (C2) 1
5MM LED (LED1-LED30) 30
Integrated circuit 4069 (U1) 1
PCB board 30-Main (PCB) 1
Integrated circuit 4015 (U2, U3) 2
Rolling switch 300 (SW1) 1
Self locking switch (S1) 1
Potentiometer 100K (VR1) 1
Pin 8P (CN1-CN4) 4
Pin base 8P (CN5-CN8) 4
PCB board 30-LED (PCB) 1

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

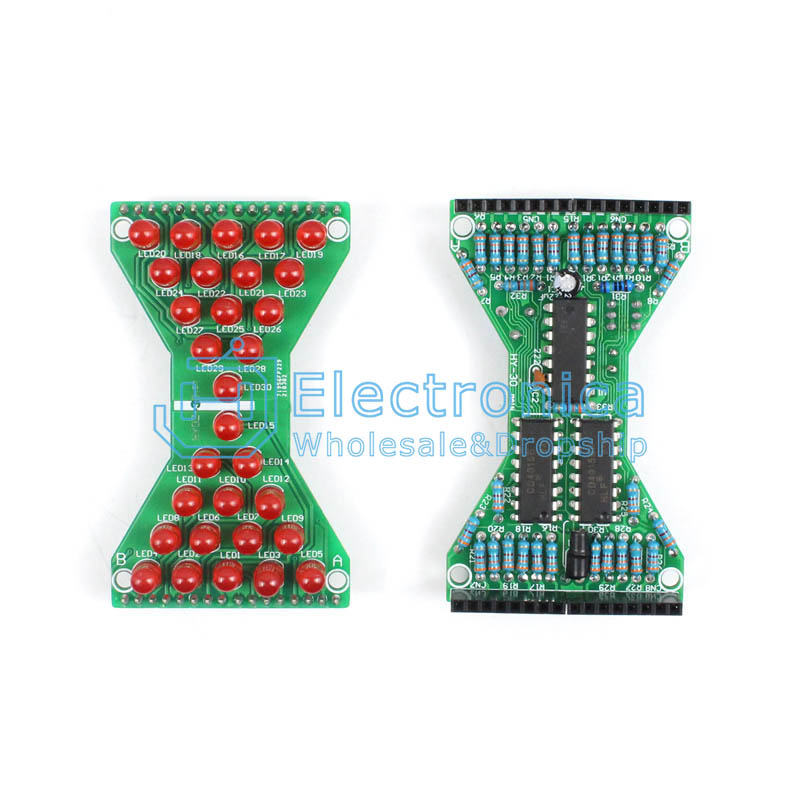

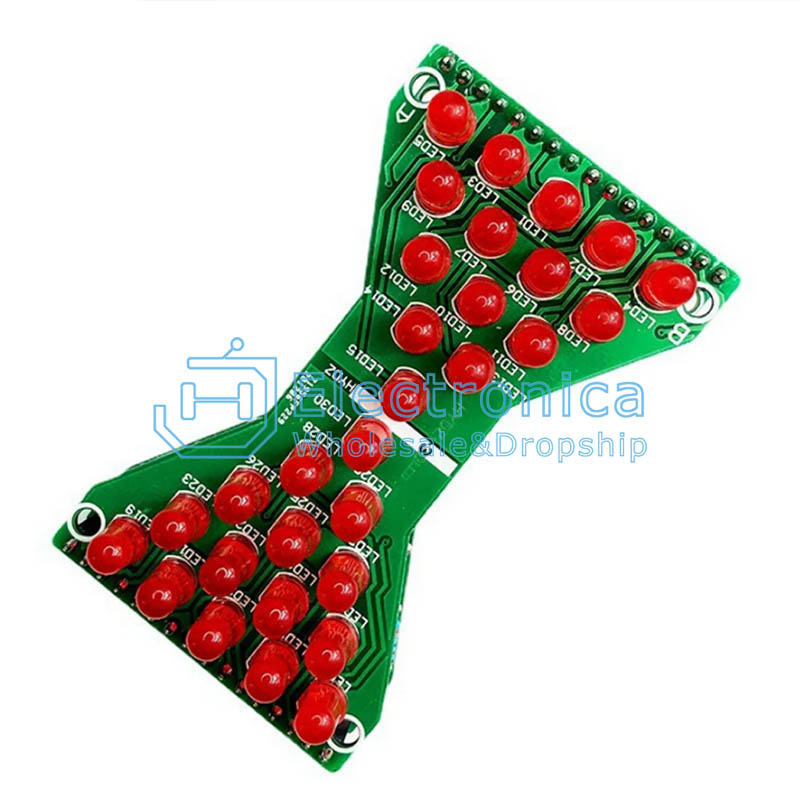

Electronic Hourglass DIY Kit

SKU : YXS734 Brand :

Price : $ 2.82

100 +: $2.82500 +: $2.821000 +: $2.82

style：

Kit
