Description
Product model: DC-044
Rated load: DC 12V 0.5AResistance voltage: AC500V 50Hz 1min
Contact resistance: ≤0.05Ω
Insulation resistance: ≥100mΩ
Operating temperature range: -30~+70 degree
Material: Plastic&metal

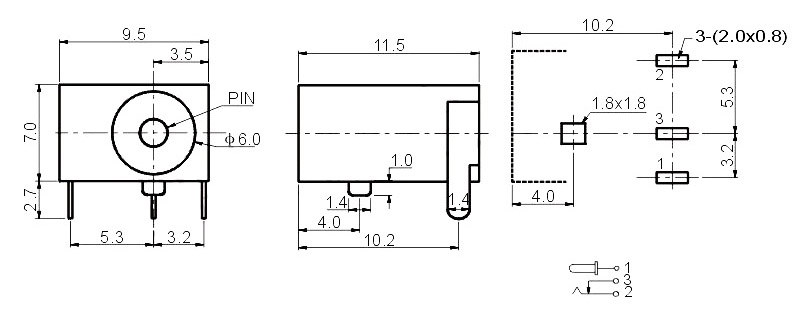

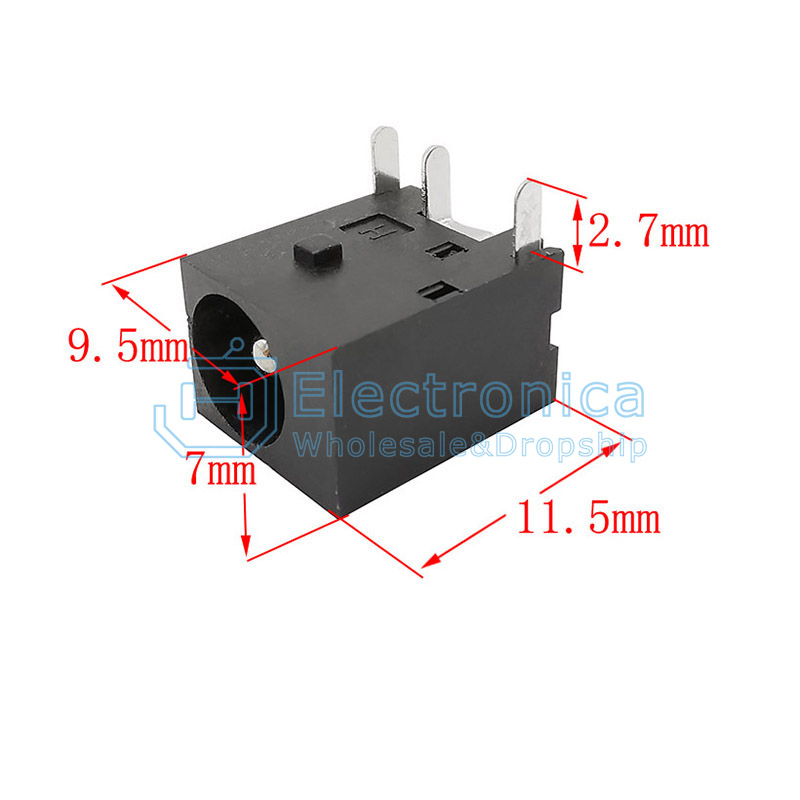

Dimensions: 11.5x9.5x7mm/0.45x0.37x0.28inch
Color: Black
Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment .
We can accept customized package to meet different requirements :
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag .
2.Some fragile products such as the display screen can be packed in bubble bag .
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

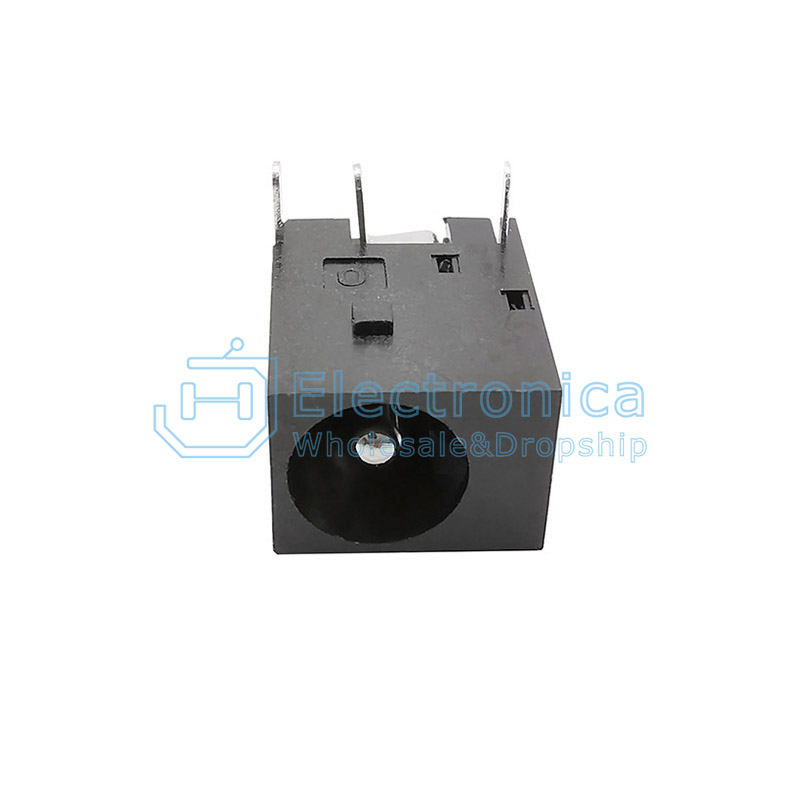

DC-044 5.5*2.1mm 3Pin DC Power Jack Socket
SKU : YXE506 Brand : JH Sourcing
