Description
Type: DC-002, DC-005, DC-021, DC-022
Connection size:
DC-005: 5.5*2.1mm
DC-002: 3.5*1.1mm
DC-021: 5.5*2.1mm
DC-022: 5.5*2.1mm
Power plug(large): 5.5*2.1mm
Power plug(yellow): 5.5*2.1mm
Power plug (small): 3.5*1.2mm
Operating temperature:-40~50℃
Rated load:DC 30V 0.5A
Contact resistance:≤0.03Ω
Insulation resistance:≥100MΩ DC250V
Withstand voltage:AC 500V(50Hz)/min
Insertion and unplugging:3-20N
Lifetime:5000 times
Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment .
We can accept customized package to meet different requirements :
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag .
2.Some fragile products such as the display screen can be packed in bubble bag .
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.
DC-002/5/21/22 Power Supply Metal Jack Socket 5.5-2.1/3.5-1.1/1.2 MM
SKU : YXK537 Brand : JH Stock
Style2：

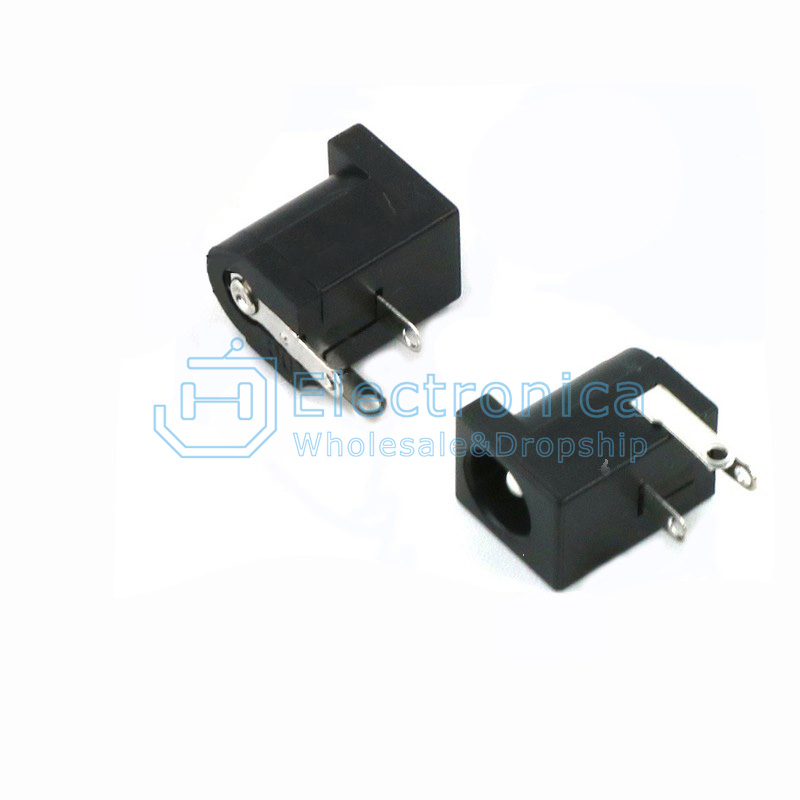

DC-005 5.5-2.1mm Round Needle

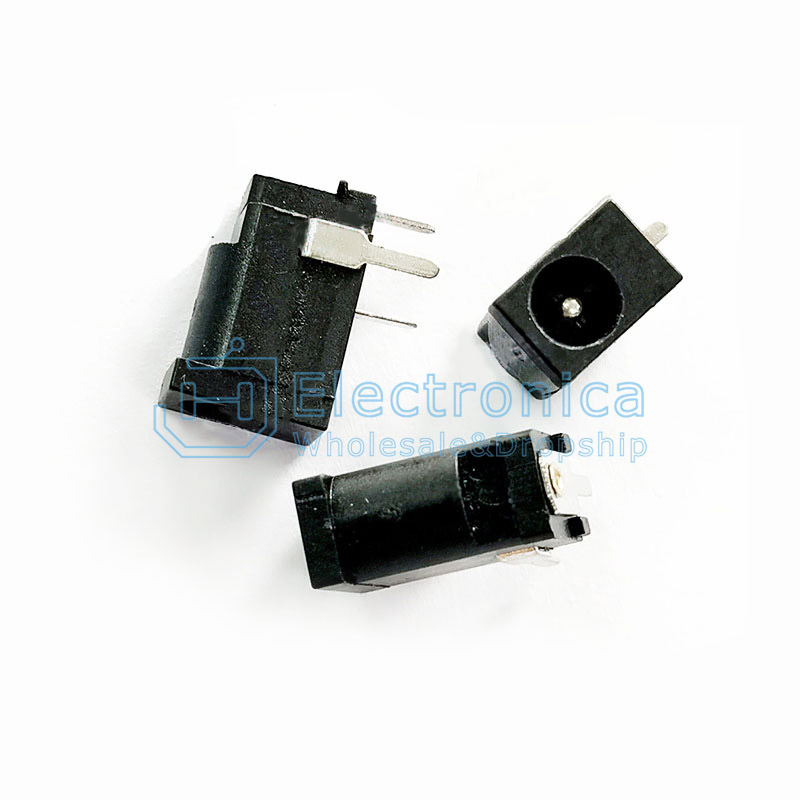

DC-002 3.5-1.1mm

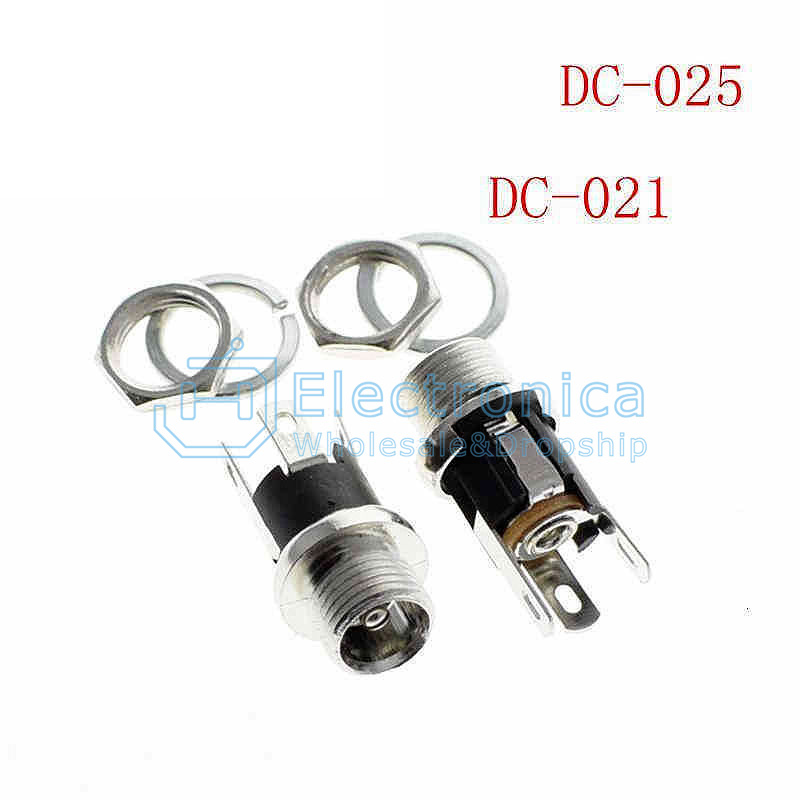

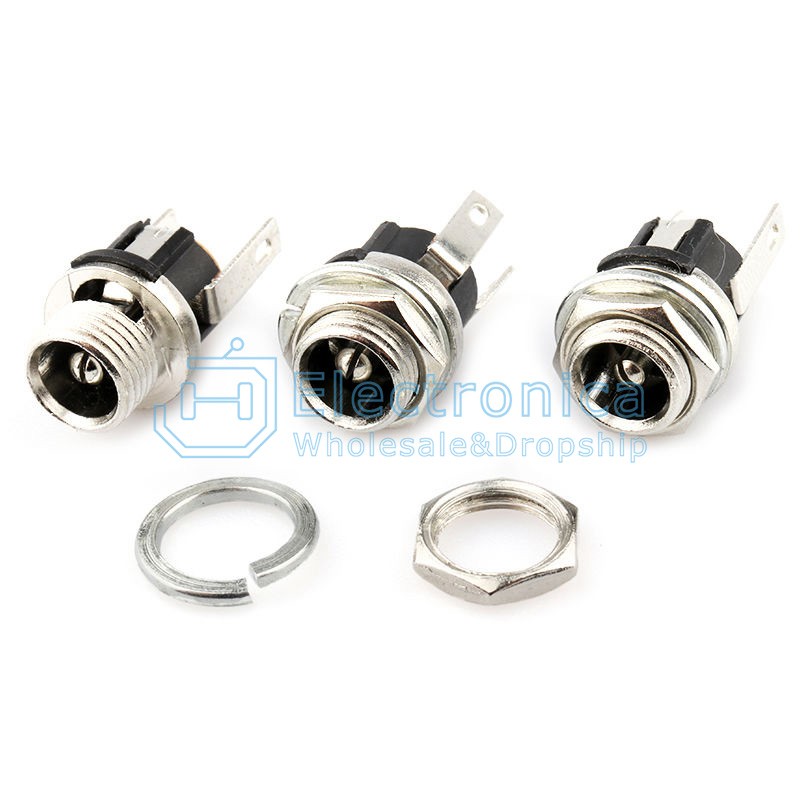

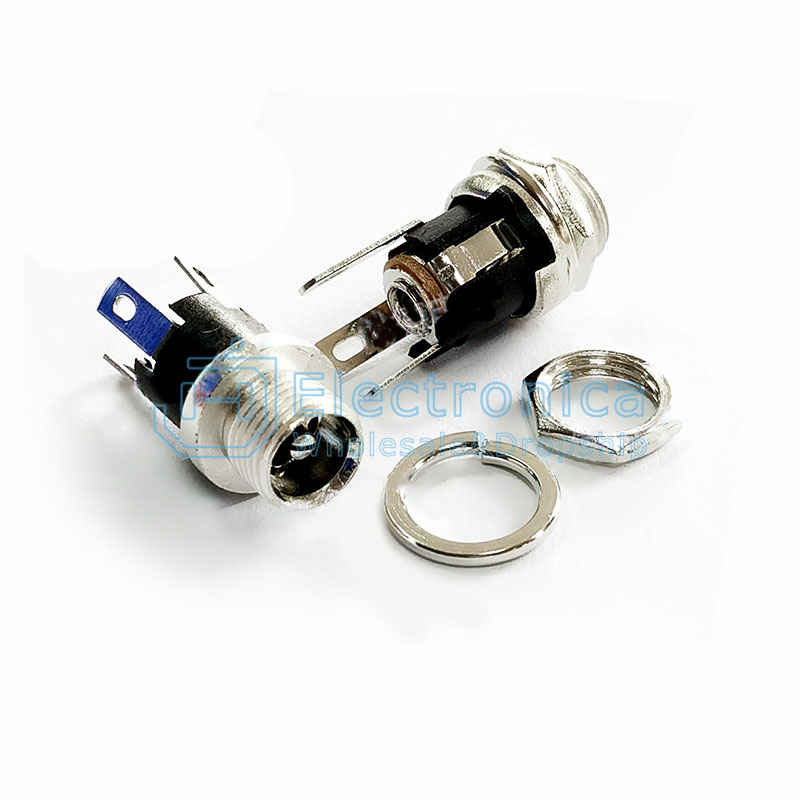

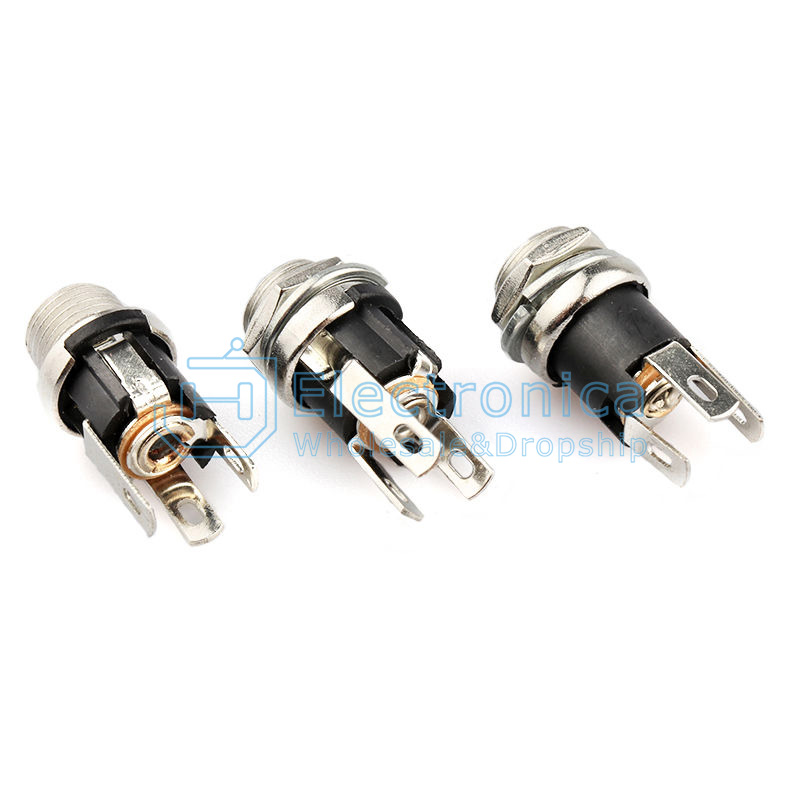

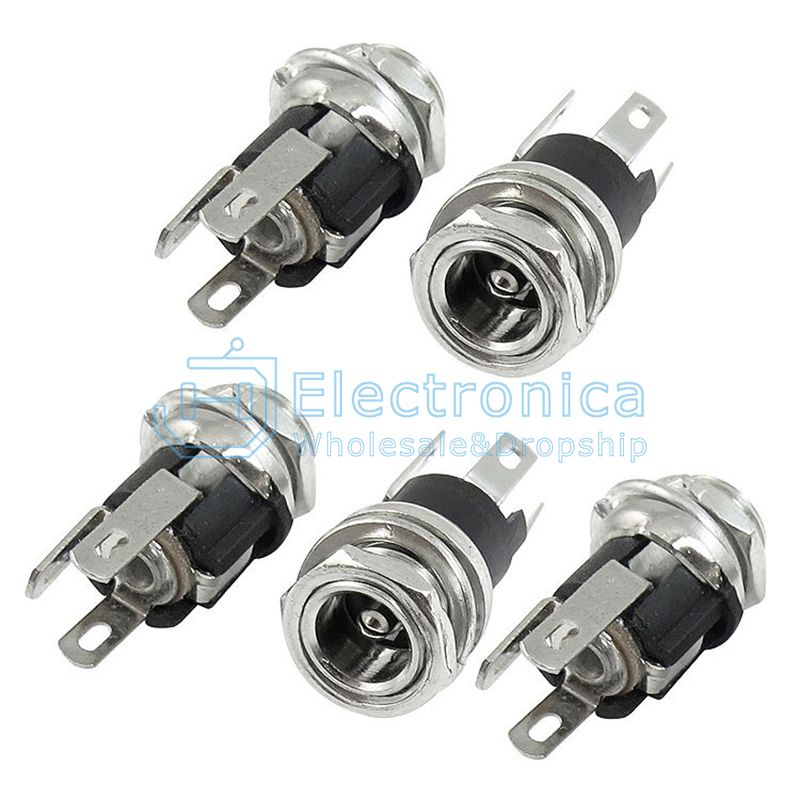

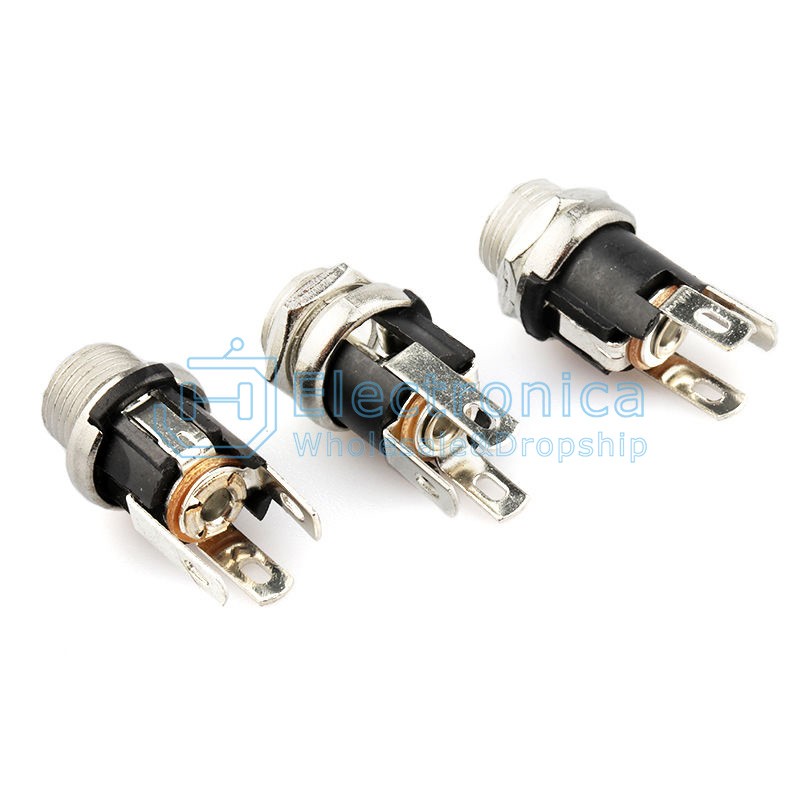

DC-021 5.5-2.1mm Metal

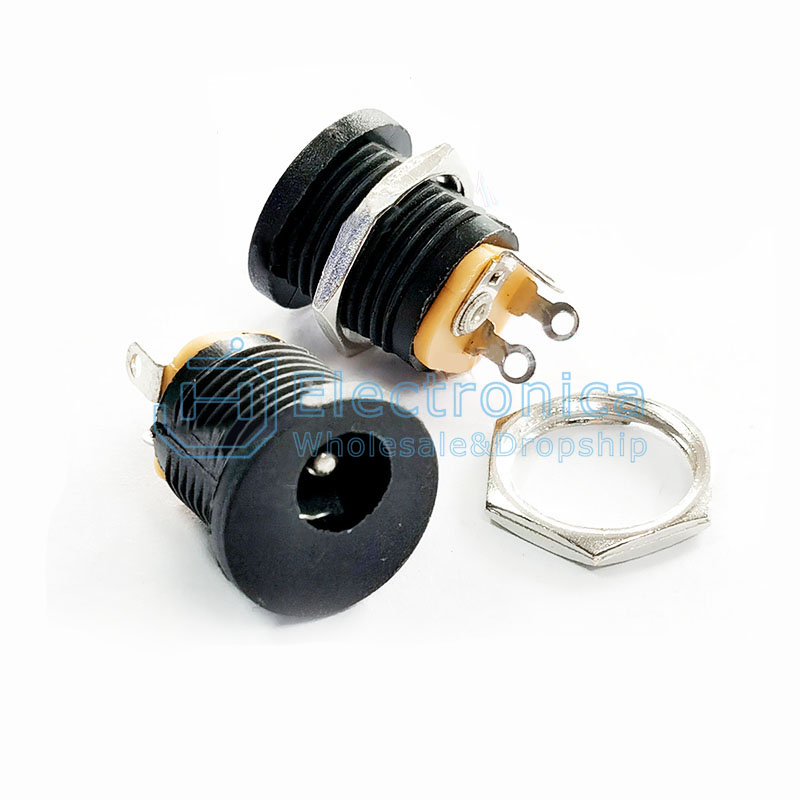

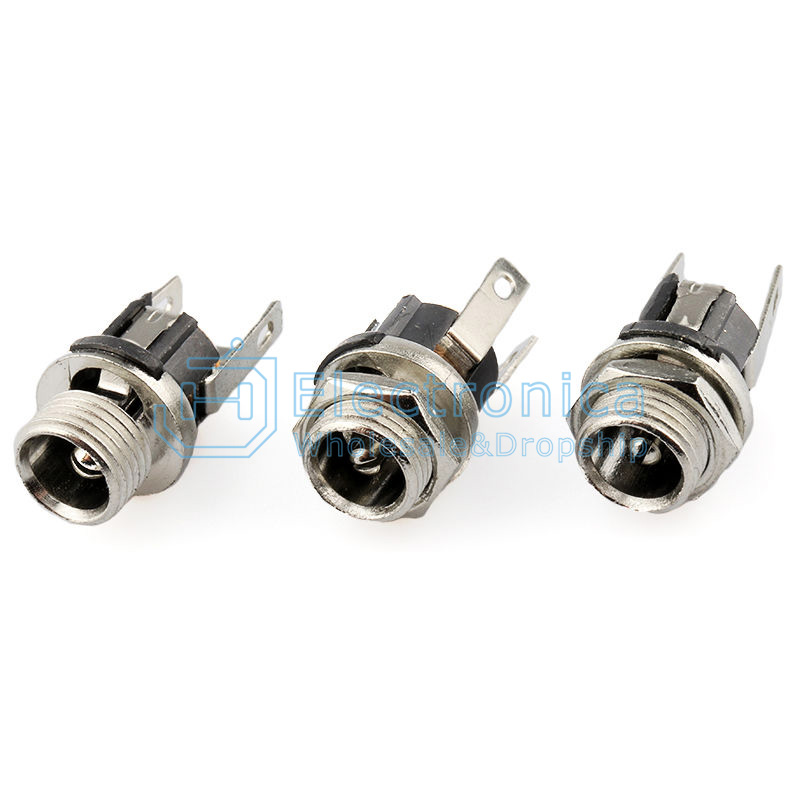

DC-022 5.5-2.1mm with Nut

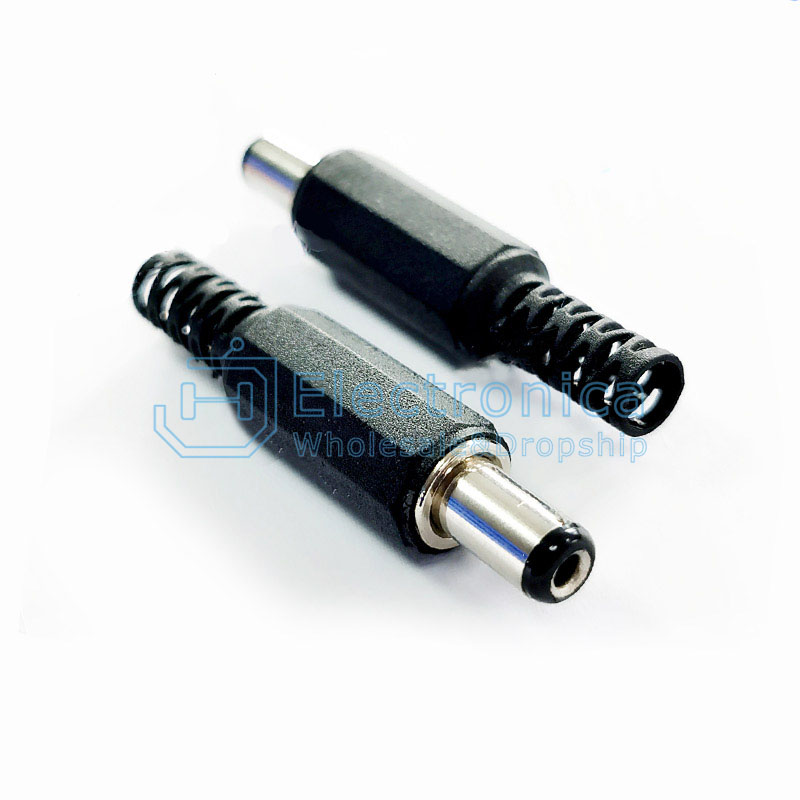

Power Plug (Large)-5.5-2.1mm

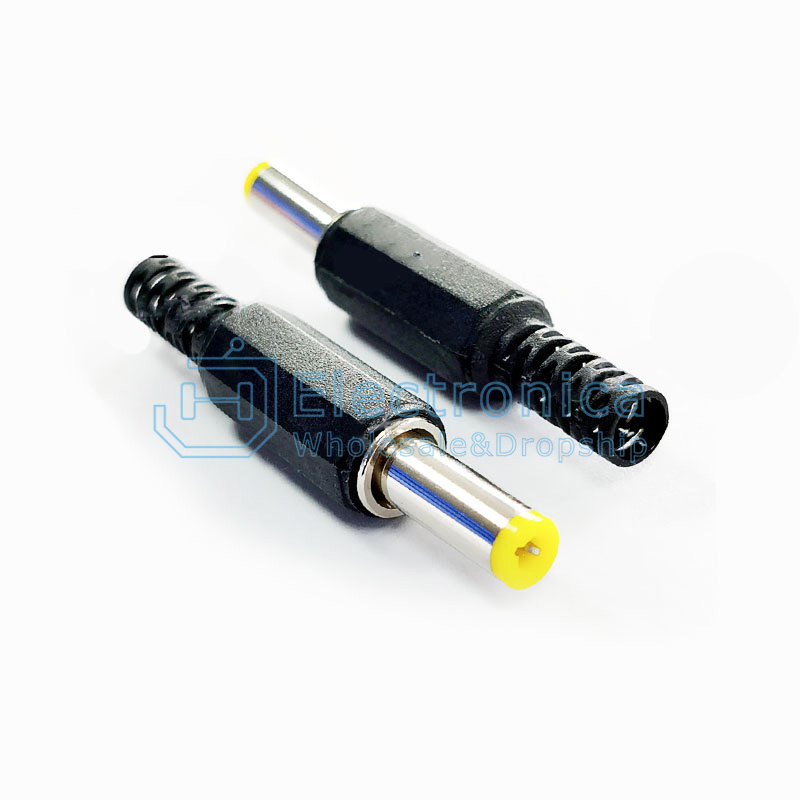

Power Plug (Yellow Head)-5.5-2.1mm

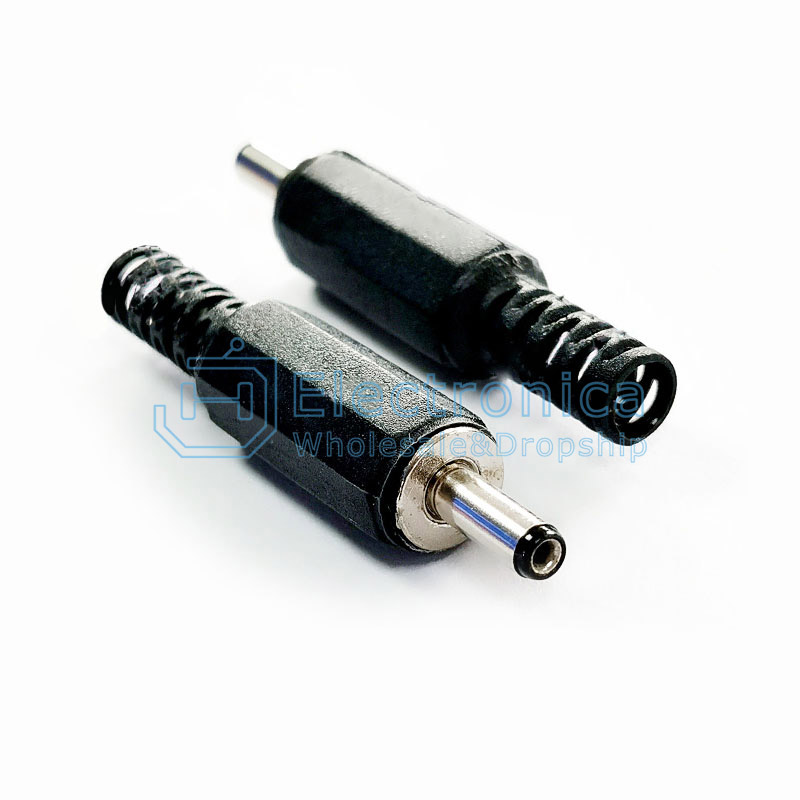

Power Plug (Small)-3.5-1.2mm
Style：
