Mini Laser Engraver
By Sarah - JH 10.25.2022
One of my customer purchased an Mini Laser Engraver from local market

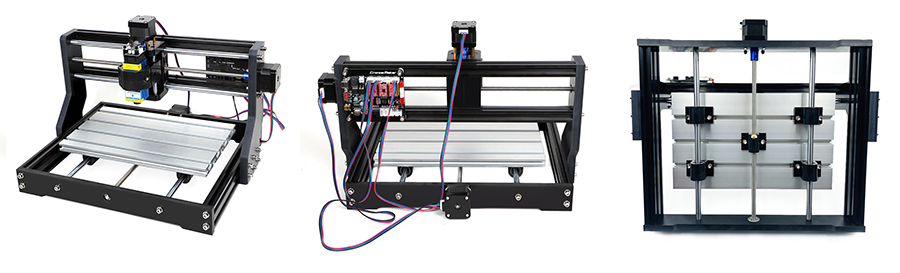

Share this product with everyone here: Mini Laser Engraver CNC 3018 PRO ER11

Style:Standard+2500mw+offline controller(DIY parts)

Carving Materials:plastic,wood,acrylic,PVC,pcb and other soft materials.
Material Shape:Materials with standard shapes.
Please note:cylinders, curved surfaces and heterosexual materials (materials with non-standard shapes) cannot be engraved.

Product parameters:
Control software:GRBL control
Frame size:420x355x280mm
Working range:300x180x40mm
Screw:T8 screw,lead 4mm
Stepper motor:42 stepper motor 1.3A0.25N.M.
Spindle:775 Spindle Motor(12-36V) 24V 10000r/min
Chuck specifications:ER11 3.175mm(can be equipped with 0-7mm)
Body material:aluminum+bakelite
Power supply:24V 5A(110V-220V)
Interface:USB
System requirements:Windows XP,win7,win8,win10(32/64) Linux
Machining instruction:CNC:G-CODE,TAB,NC,NCC file/laser G-CODE,JPG,Dxf file

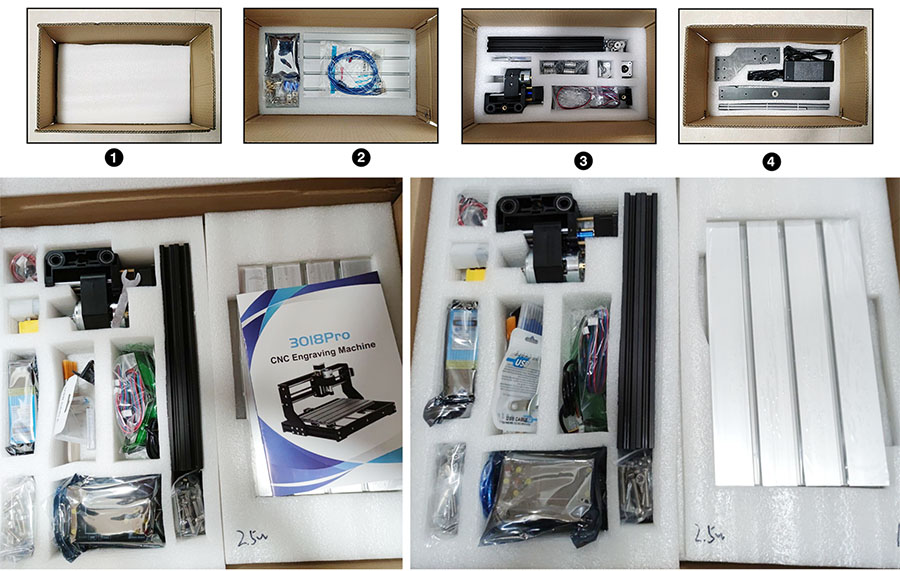

When we receive the goods, our warehouse will check them carefully
And take pictures for customer confirmation before shipping
