Description

5A Module
Input voltage:5V -36V
Output voltage:1.25-32V adjustable (input voltage must be greater than output voltage 1.5V)
Output current:5A maximum adjustable (3A or above requires enhanced heat dissipation, approximately constant current requires an input voltage of 2V or above)
Output power:maximum 75W
Working temperature:-20~+70 ℃
Operating frequency:180 kHz
Short circuit protection:Yes
Over temperature protection:Yes
Input reverse connection protection:No (the input end needs to be connected in series with a diode)

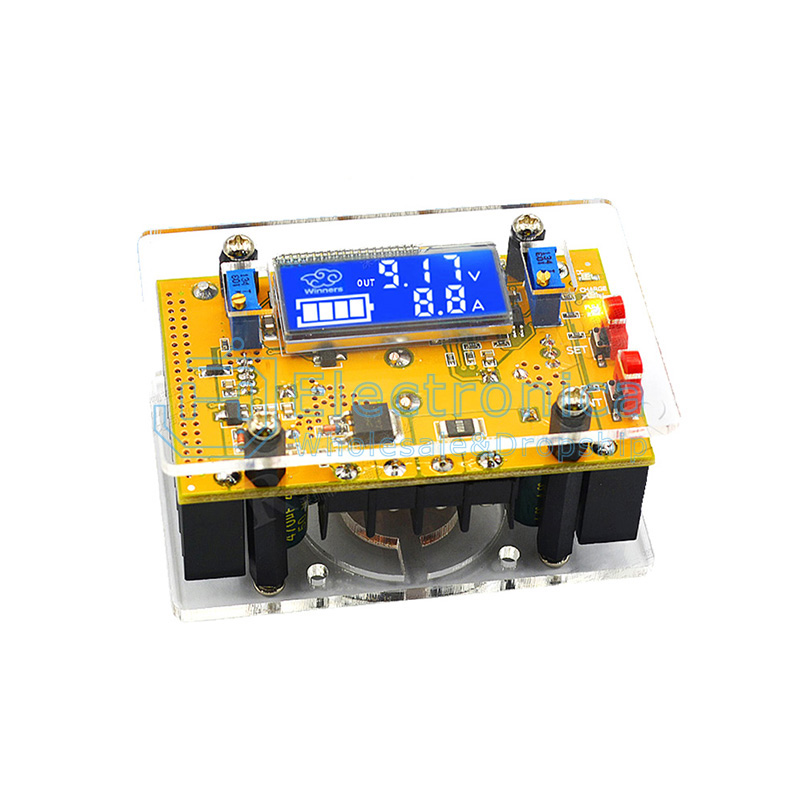

10A Module
Input voltage:7V -40V
Output voltage:1.5-35V continuously adjustable (can only be used for voltage reduction modules, input must be greater than output by more than 1.5V)
Output current:adjustable, maximum 10A (recommended for 8A use)
Output power:maximum 150 watts (recommended for use within 100 watts, please reduce power when the pressure difference is large)
Working temperature:-20~+75 ℃
Operating frequency:300 kHz
Conversion efficiency:up to 95%
Short circuit protection:Yes
Input reverse connection protection:No
Output backflow prevention:No
Installation method:8pc 3mm screws
Connection method:terminal or welding terminal, input as VIN, output as VOUT

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

5A/10A Adjustable Step Down Power Module

SKU : YXS1591 Brand :

Price : $ 6.32~9.90

100 +: $6.32~9.90500 +: $6.32~9.901000 +: $6.32~9.90

style：

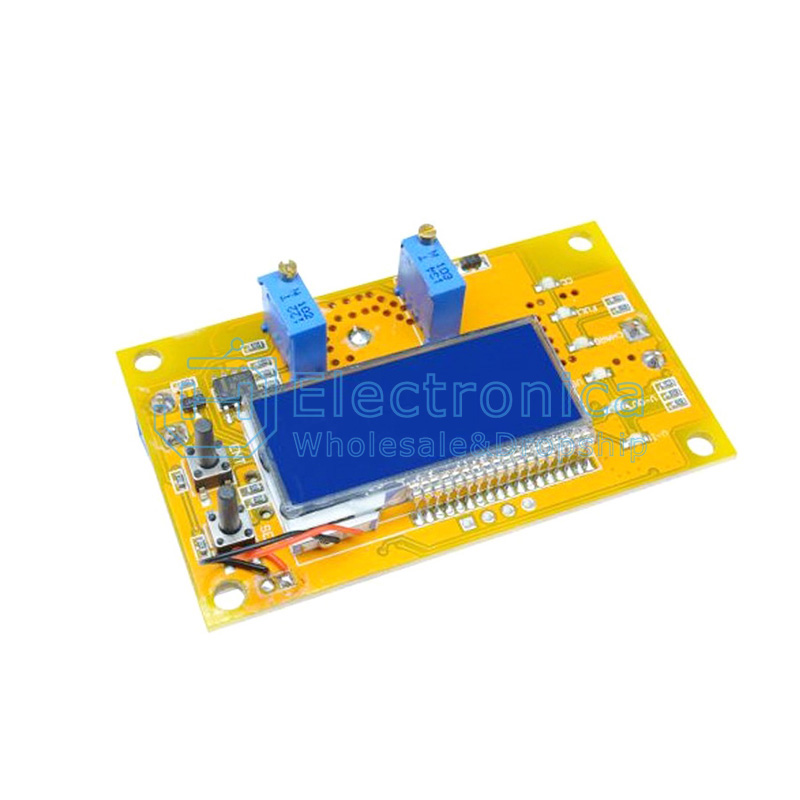

5A without shell

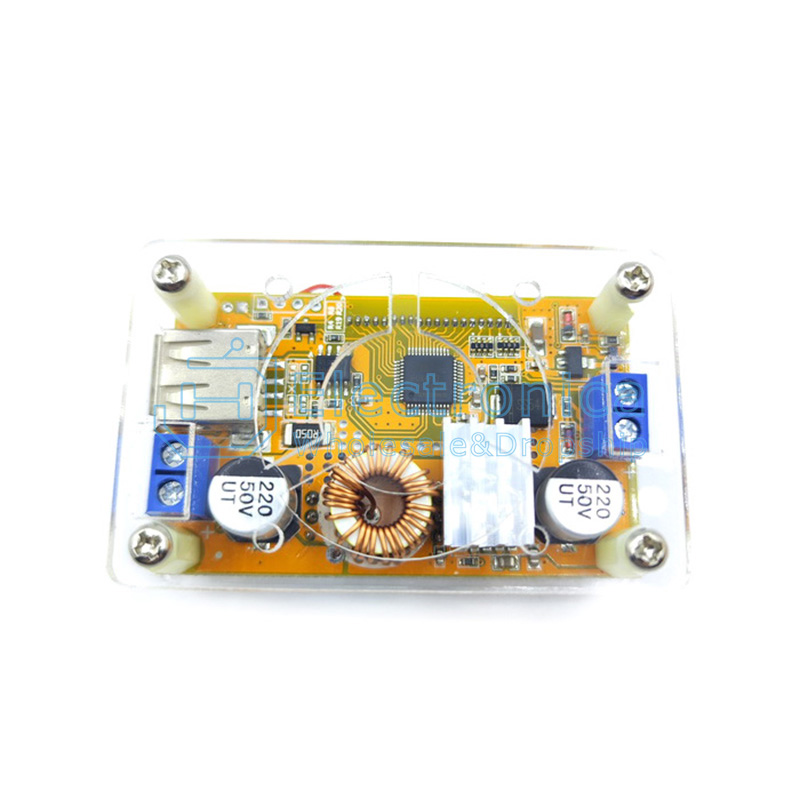

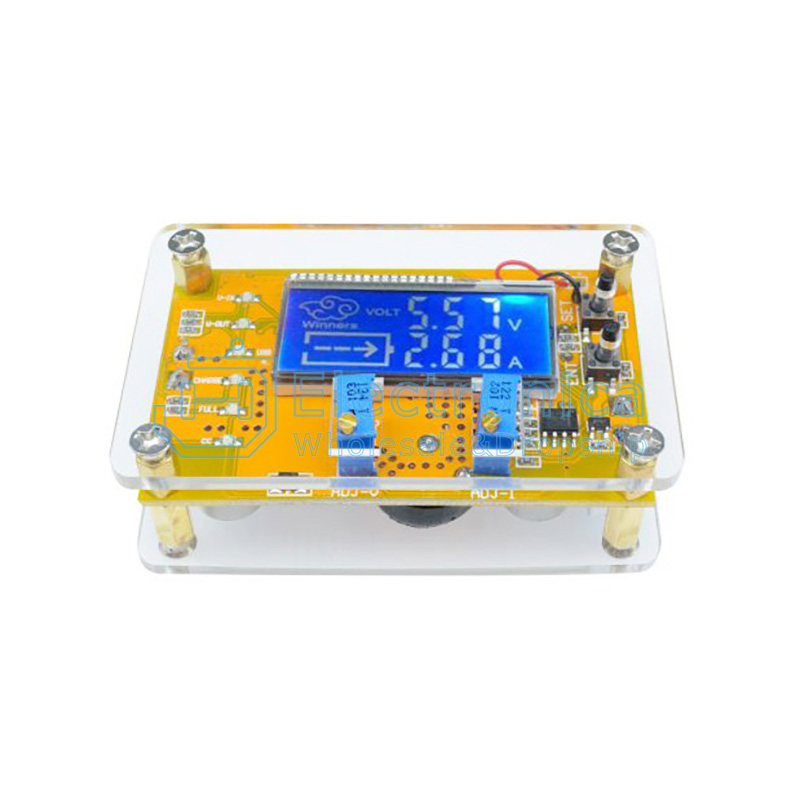

5A with shell

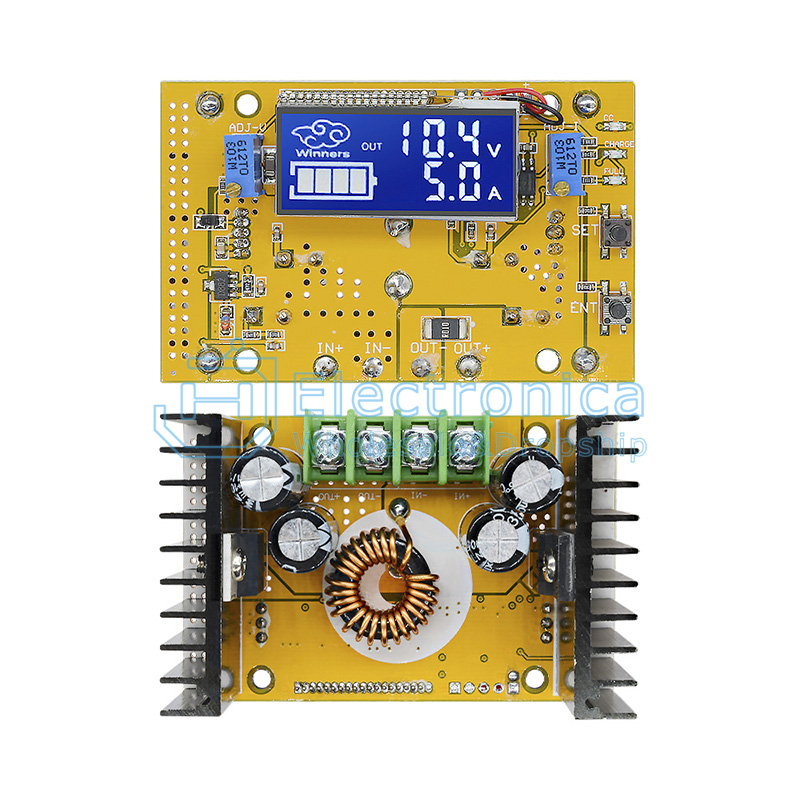

10A with shell

Quantity :

- +

ADD TO CART
