Description

Input voltage:5-36V
Output voltage:1.25-32V continuously adjustable
Output current:adjustable,5A(recommended for use within 4.5A)
Output power:75W(recommended to use within 50W,please reduce the power for large pressure difference)
Operating temperature:-40℃~+85℃
Working frequency:180KHz
Conversion efficiency:96%
Short circuit protection:yes
Overtemperature protection:yes(automatically turn off output after overtemperature)
Input reverse connection protection:none,(if necessary,input high current diode)
Installation method:4 screws(3mm)
Wiring mode:Wiring terminal or welding terminal,V-IN for input,V-OUT for output
Module size:68.2*38.8*15mm(L*W*H)

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

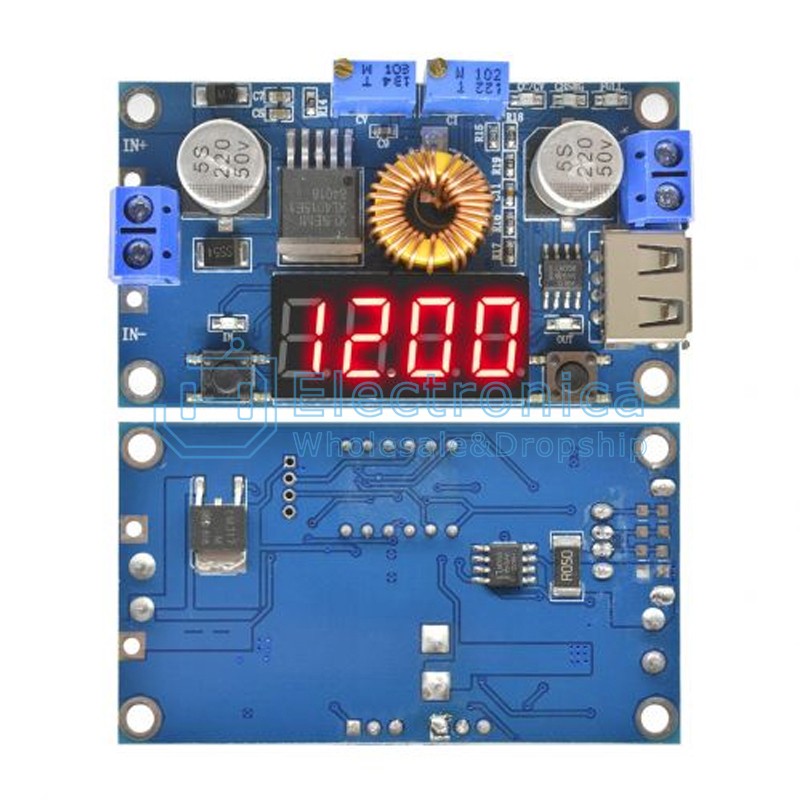

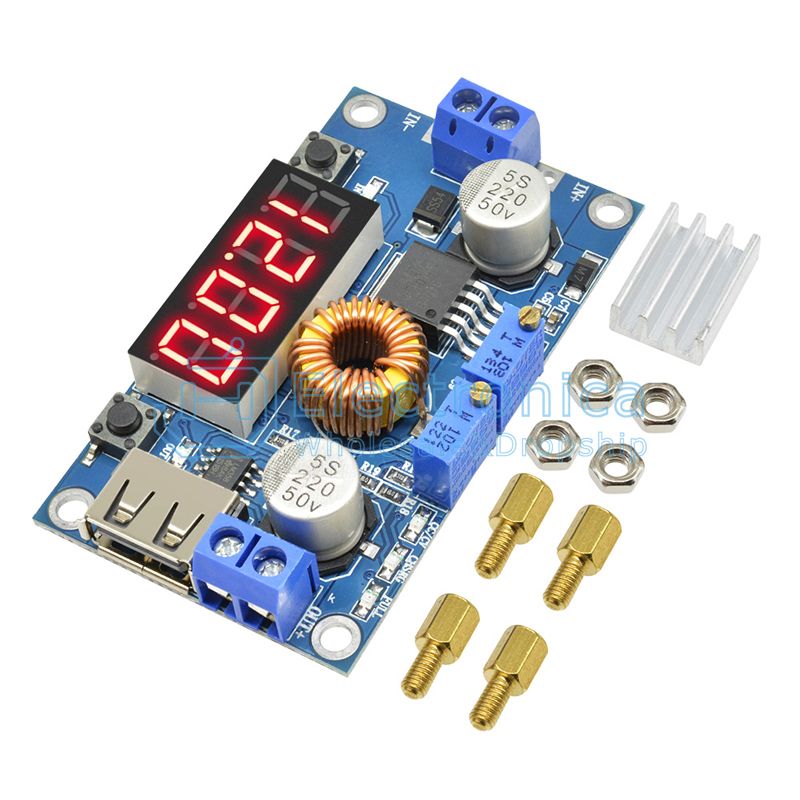

5A LED Step-down Power Supply Module

SKU : YXC907 Brand :

Price : $ 1.43

100 +: $1.43500 +: $1.431000 +: $1.43

Quantity :

- +

ADD TO CART
