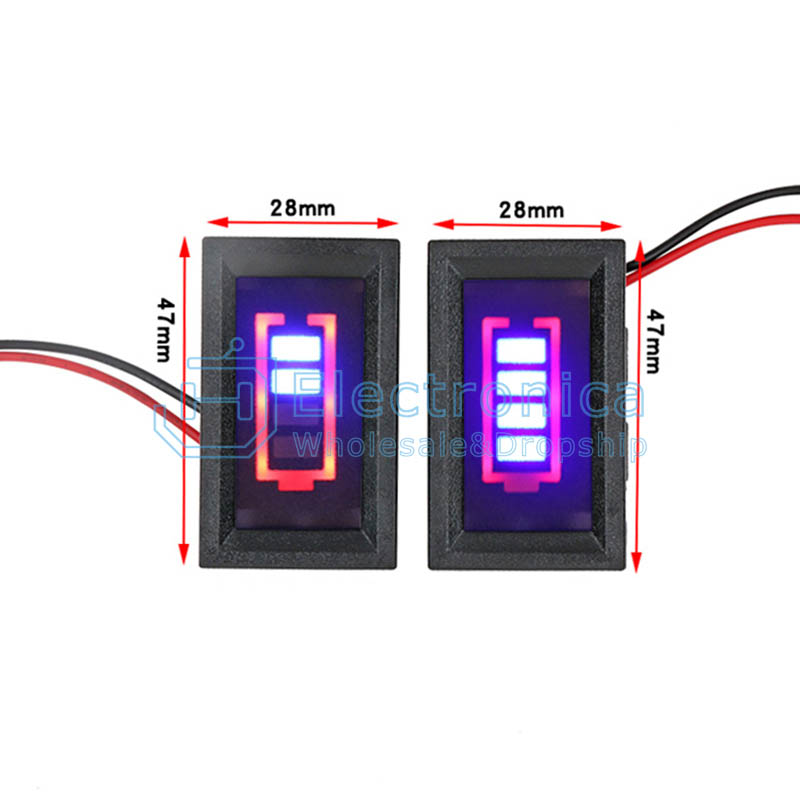

Size:48*29*21mm
Display color:Blue
Shell color:Black

Product Features:

1.Battery type power display,the display is more intuitive and more beautiful
2.the scope of use is wider,18650 and polymer lithium battery pack,lead-acid storage,electric vehicle battery,electric equipment can be used

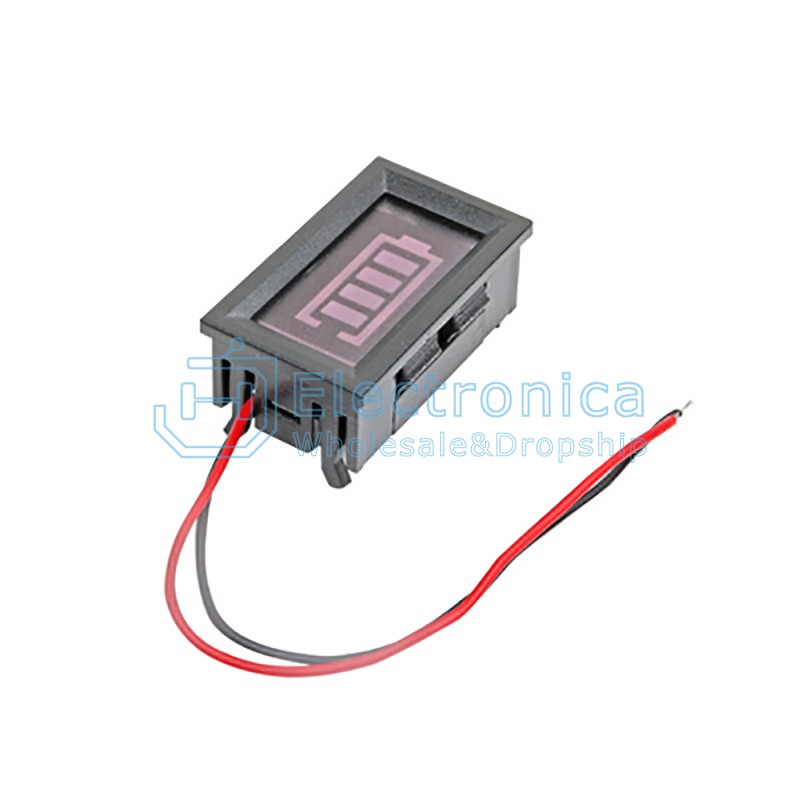

Lithium battery,lead-acid battery can be used power display board.
How to use:connect the positive and negative terminals of the display board and connect them to the positive and negative terminals of the battery under test,and the digital tube will display the real-time battery level.
Lithium battery display power parameters:
The battery voltage is greater than N×3.3V,and the bright power is 1 bar(note: N represents the number of battery cells)
The battery voltage is greater than N×3.5V,and the bright power is 2 tiles
The battery voltage is greater than N×3.7V,and the bright power is 3 tiles
The battery voltage is greater than N×3.9V,and the power is 4 tiles bright
The battery voltage is less than N×3.3V,and the 4-segment display is all off,indicating that the battery is below 3.3V,and it is time to charge the battery.

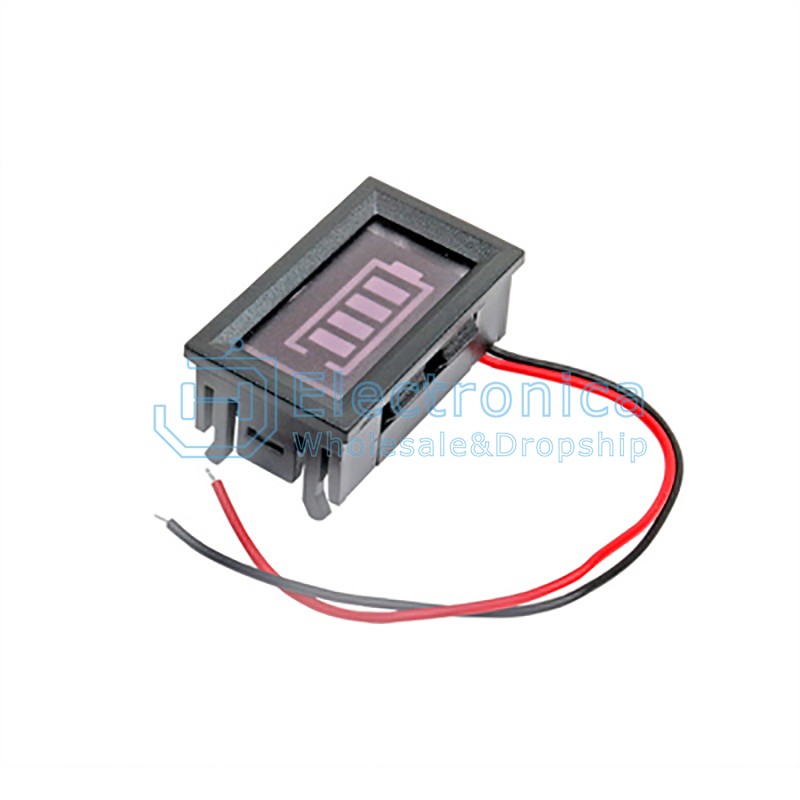

12V lead-acid voltage range:(can use 4 strings of lithium iron phosphate batteries)
The battery voltage is greater than 11.2V,and the power is 1 grid bright
The battery voltage is greater than 12V,and the bright power is 2 tiles
The battery voltage is greater than 12.5V,and the bright power is 3 tiles
The battery voltage is greater than 13.3V,and the power is 4 tiles bright
Digital tube color:red outer frame,blue inner display,full battery full 4 grids
