Description

MATERIAL
Pitch: 5.0/5.08mm
Poles:2P-24P
Screw: M2.5,Steel,Zinc plated
Contact:phosphor bronze Ni plated
Wire cage: Brass,Ni plated or Steel,Zinc plated
ELECTRICAL
Rated voltage: 300V
Rated current: IEC:15A UL:10A
Withstanding voltage:AC2500V/1Min
Wire range: 28-12 AWG
MECHANICAL
Temperature range:-40℃ -+105℃
MAX soldering: + 250℃ for 5 secretary
Strip length: 7-8mm

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

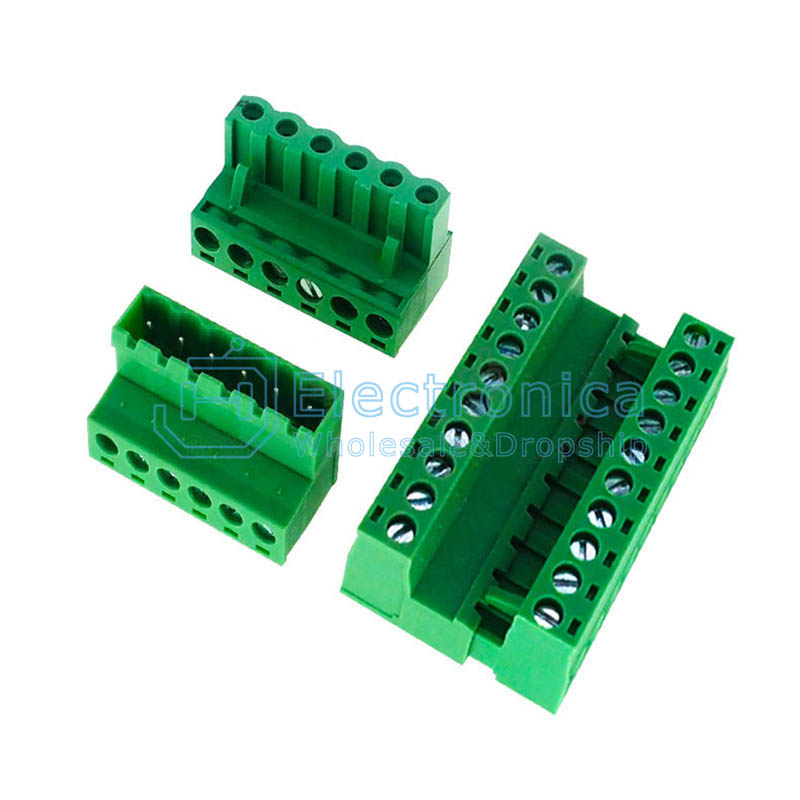

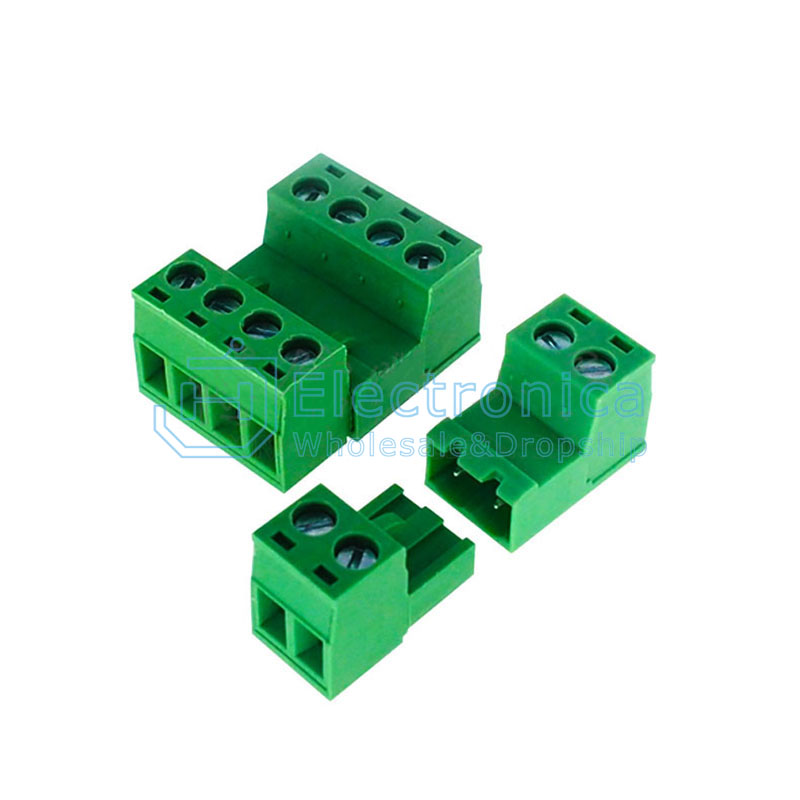

2EDG 2EDGRK 5.08mm 2/3/4/5/6/7/8/10P Solderless Pluggable Terminal Block

SKU : YXE847 Brand : JH Sourcing

Price : $ 0.23~0.77

100 +: $0.23~0.77500 +: $0.23~0.771000 +: $0.23~0.77
