Description

Pitch:5.08/7.62mm
Poles:1P- xxP
Pin header:Brass,Tin plated
Clips:Stainless Steel
Housing:PA66.UL94V-0
Rated voltage:250V
Rated current:10A
Withstanding voltage:AC2000V/1Min
Wire range:22-14 AWG
Temperature range:-40℃-+105℃
MAX soldering:+250℃ for 5 sec.
Strip length:10mm

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods

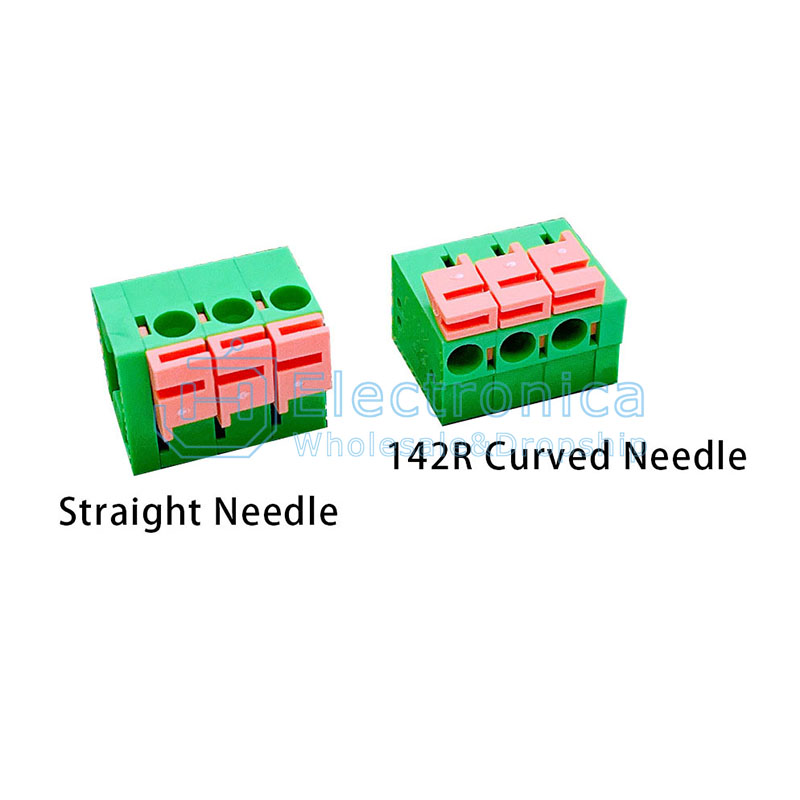

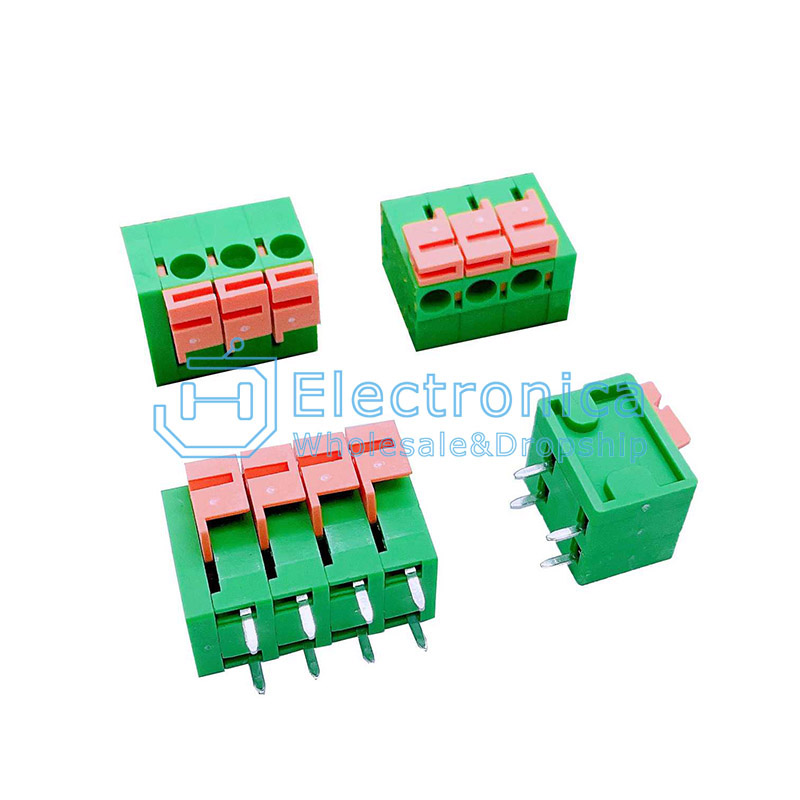

KF142V/142R-5.08MM 2P-10P Straight/Curved Needle Push Terminals

SKU : YXS318 Brand : JH Sourcing

Price : $ 0.20~0.82

100 +: $0.20~0.82500 +: $0.20~0.821000 +: $0.20~0.82
