Description
Interface Mode:SPI
Display Color:Full Color
Module Power Supply(V):3
Operating Temperature(℃):-20-70
Storage Temperature (℃):-30-80
Link Method:COG
Driver IC:ST7789V

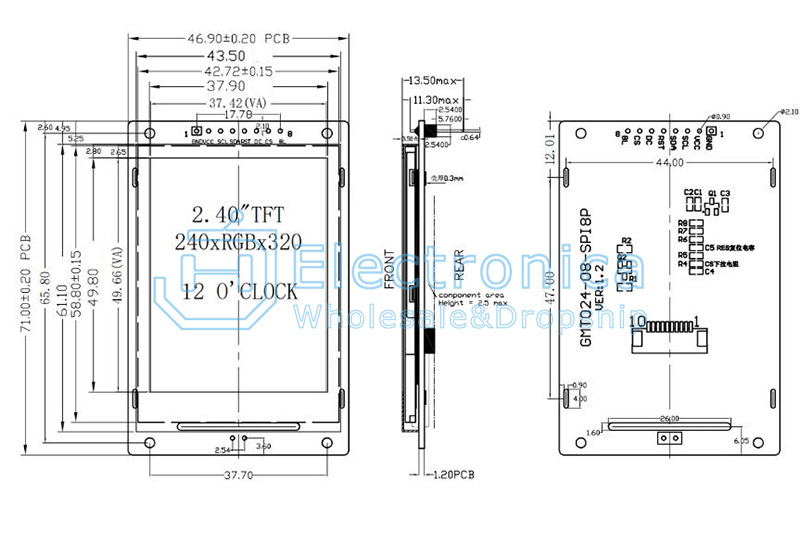

Module Size(MM):46.90*71.00*13.50
Visible Area(MM):42.72*58.80
Effective Area(MM):37.42*49.66
Point Distance(MM):0.17*0.17
Point Size(MM):0.15*0.15
2.4 Inch 240*320 ST7789 TFT LCD Screen Display Module
SKU : YXS2168 Brand :
Style：

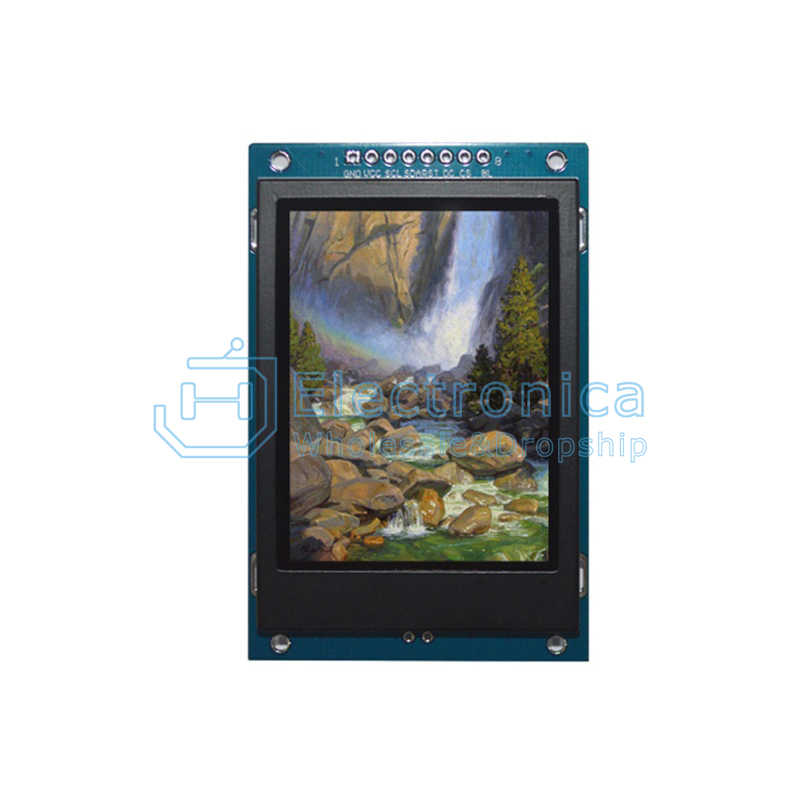

With Welding Pins

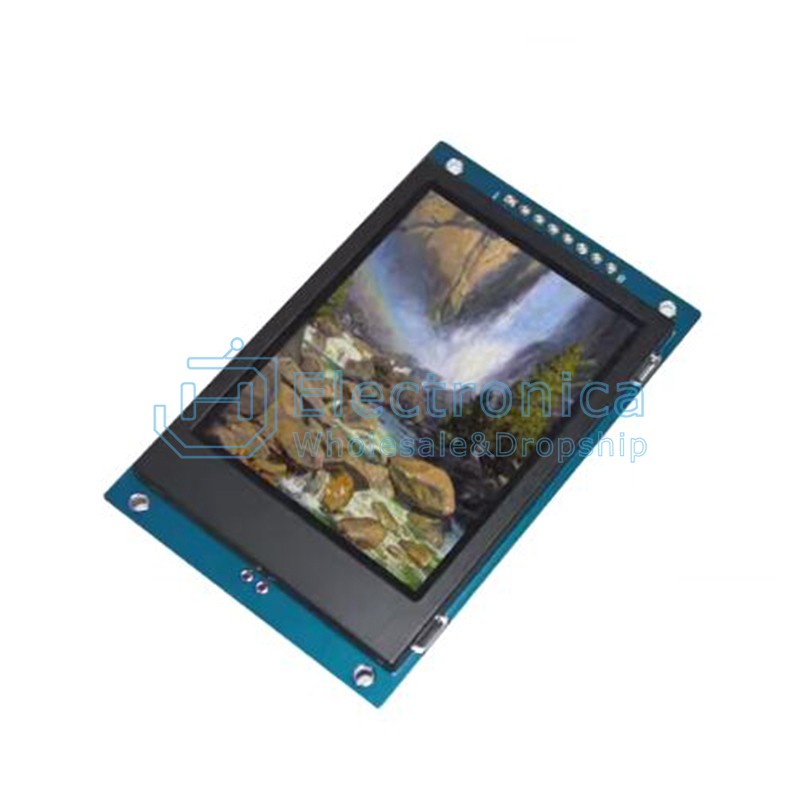

Without Welding Pins
