Product Introduction:
Can be used for scientific analysis instruments, measuring instruments to provide a constant temperature source, medical instruments, etc., to stabilize the working temperature of optoelectronic components; Low temperature protection for instruments and facilities such as artificial satellites, space vehicles, and aircraft, as well as instruments and meters; Vacuum heating and baking field; Heating of car oil pan, defrosting film for rearview mirror, snow and defrosting heating elements for antenna or radar; Heating and insulation in healthcare and beauty equipment industries

Product Parameters:
Product voltage: 0.1-380V (depending on customized parameters)
Surface temperature:-40~180℃, can work for a long time
Product shape:can be produced in any shape and can be customized
Product thickness:about 0.3mm (supports customization)
Lead length:default 150mm (customizable longer)
Whole surface temperature difference:≤ 3℃
Current usage:Both AC and DC can be used, without distinguishing between positive and negative poles
Insulation resistance:≥5M Ω
Product power:can be customized for any power in production
High voltage test:1500V/1min 5mA without breakdown
Service life:70℃ temperature controlled dry burning ≥8000 hours
Power density:≤1W/c ㎡

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

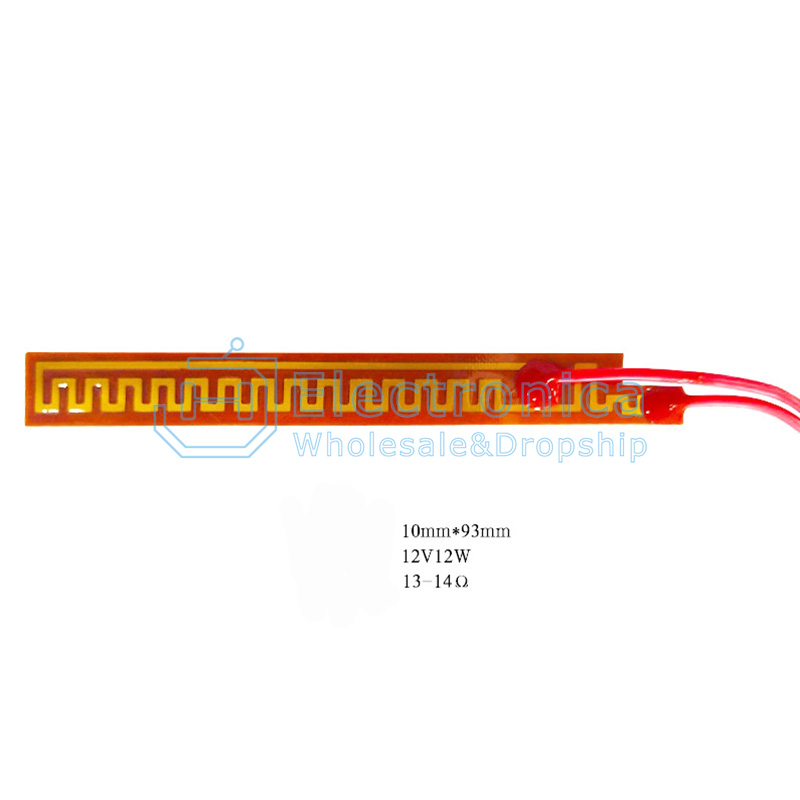

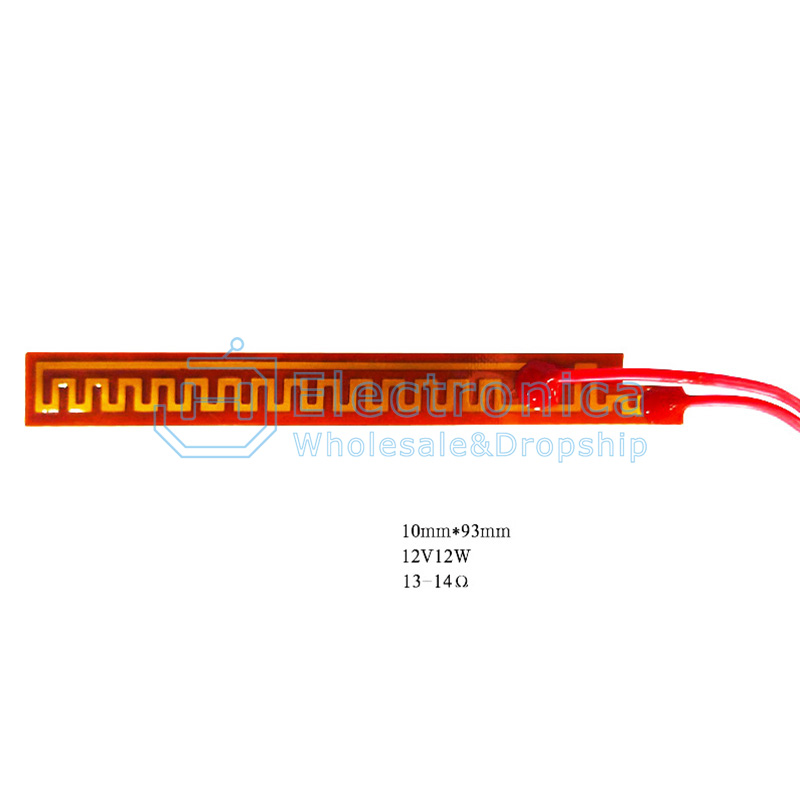

12V12W Polyimide Heating Film

SKU : YXS1420 Brand :

Price : $ 1.37

100 +: $1.37500 +: $1.371000 +: $1.37

Style：

10*93mm/12V12W
