Description

XS8JK-2P/3P/4P

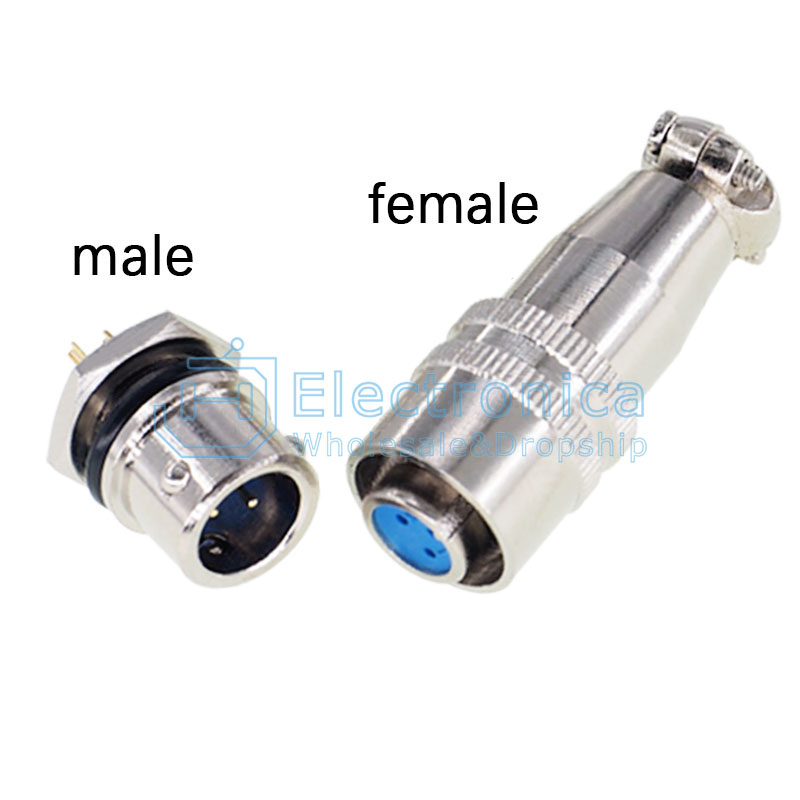

Product name:Aviation plug XS-2, 3, 4 cores
Connection method:push-pull steel ball locking
Temperature range:-55℃~+85℃
Relative humidity:93% at +40°C
Insulation resistance:≥1000MΩ
Rated current:2 cores-3A 3 cores-3A 4 cores-3A
Rated voltage:250V
Service life:1000 times of plugging and unplugging
Hole diameter:8mm
Product weight:2 cores-16g, 3 cores-16.2g, 4 cores-16g

XS9JK-2P/3P/4P/5P
Rated current:6A
Contact resistance:≤0.005Ω
Insulator:Engineering Plastics
Rated voltage:250V
Insulation resistance:≥1000MΩ
Test voltage:AC1500V/1min
Connection method:push-pull
Ambient temperature:-55°-85°
Life:1000 times

XS10JK-2P/3P/4P/5P
Rated current:6A
Contact resistance:≤0.005Ω
Insulator:Engineering Plastics
Rated voltage:250V
Insulation resistance:≥1000MΩ
Test voltage:AC1500V/1min
Connection method:push-pull
Ambient temperature :-55°-85°
Life:1000 times

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag .
2.Some fragile products such as the display screen can be packed in bubble bag .
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

XS8/9/10/12JK 2/3/4/5/6Pin Self-locking Aviation Connector

SKU : YXE519 Brand : JH Sourcing

Price : $ 0.22~0.58

100 +: $0.22~0.58500 +: $0.22~0.581000 +: $0.22~0.58

Style2：

Style1：

Quantity :

- +

ADD TO CART
