Description

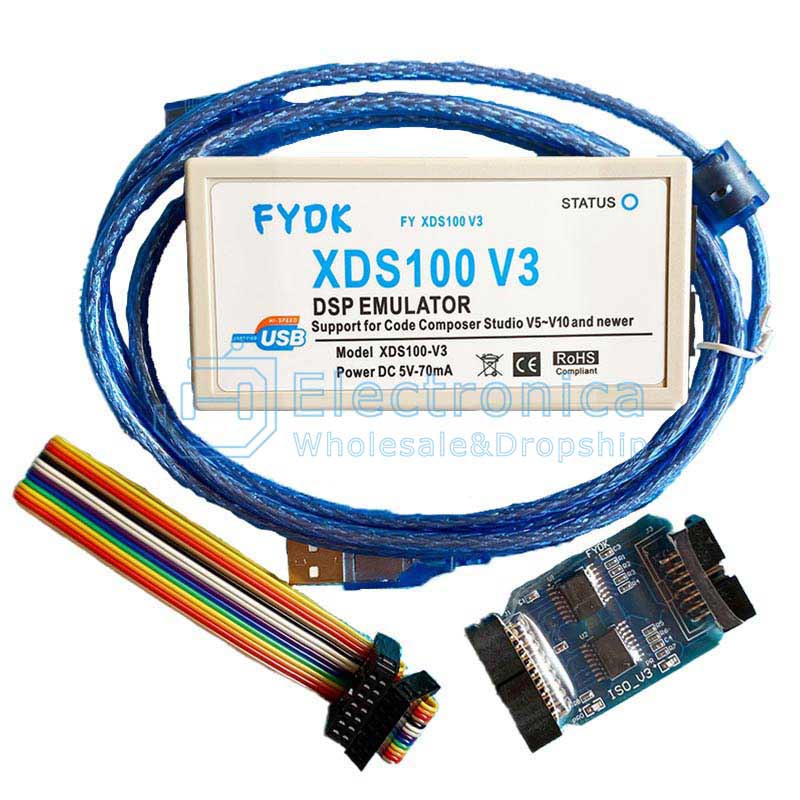

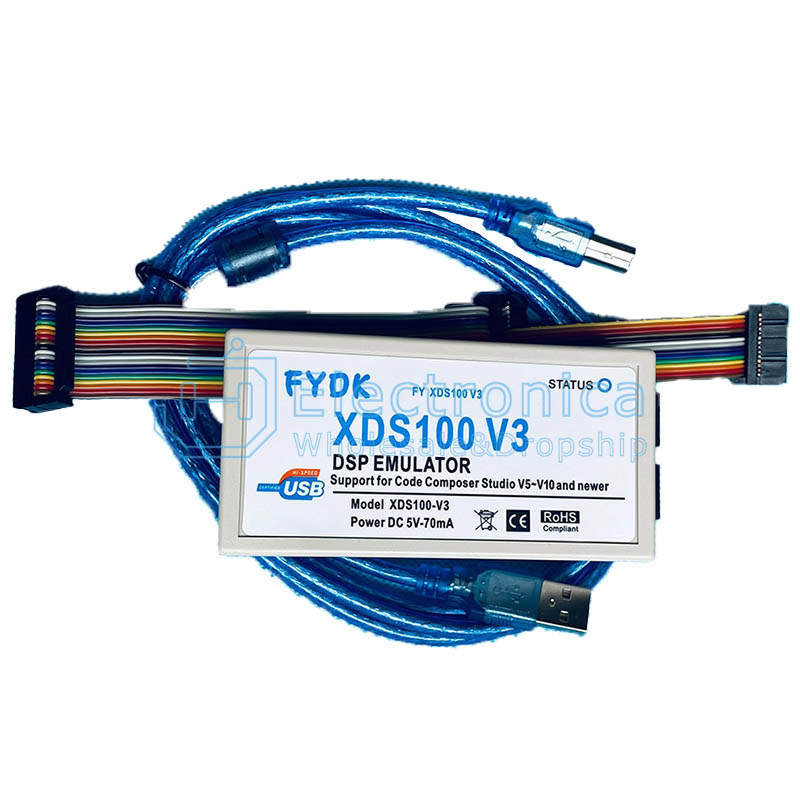

The XDS100v3 emulator is the third version of XDS100 JTAG simulation technology, supporting various chip debugging for TI
Supports USB2.0 high-speed interface, with a theoretical speed of 480M/s, and simulates and debugs through a 14P/20P interface
Support for Code Composer Studio (CCS) V5/V6/V7/V8/V9/V10 and higher versions
Can be used for operating systems such as WinXP/Win7/WIN8/WIN10
Functional characteristics:
USB2.0 high-speed interface, up to 480Mbit/s
USB side self recovery insurance protection to protect your computer
JTAG side electrostatic chip protection, anti-static resistance of 15KV, stable and reliable
Support power outage detection
Support for adaptive clock
Support JTAG reset, wait and then reset startup mode
Supports power-on reset startup mode
Supports multiple FTDU device drivers
Supports adjustable TCLK clock
Support 1.8V~5V JTAG voltage standard
Supports TI standard 14PINJTAG interface
Support TI standard 20PINJTAG interface
Supports 2-wire CJTAG interface, simplifying connection to target board
Drive free, with automatic recognition by inserting a simulator
Supports high-speed USB code download
FLASH online simulation supporting DSP
Faster simulation and download speed
Supports CCS V5.2 and above, and the new version of CCSV10 supports both
Supports IAR for ARM V6.4 and above
Support for Fast Programmer 2 burning software
Support for Uniflash independent burning software
Supports SmartRFStudio configuration software, supports TMS320C28xx,TMS320C54xx,TMS320C55xx,TMS320C674x,TMS320C64x+,TMS320C66x,ARM9,ARM CortexM0/M3/M4/A8/A9/A15/R4/R5,TMS470LSxx,TMS570LSxx,Davinci,Zigbee(32bit),ect
Supported operating systems include:WinXPWin7in8/Win10/Linux,ect
Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.
We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.
XDS100-V2 DSP Emulator
SKU : YXC1083 Brand :
