Description

Temperature Measuring Range: -50°C ~ 110°C
Control temperature range: -50 ~ 110°C
Temperature measuring difference: ±0.5°C
Resolution: 0.1°C
Accuracy: ± 1°C (-50 - 70 °C)
Sensor Type: NTC (10K/3435)
Power Supply: DC12V; DC 24V; AC 220V
Power consumption: < 2W
Relay contact Current: Rated 5A
Data retention: Yes
Working temperature: 0- 50°C
Storage temperature: -10 - 60°C
Size: 78 x 71 x 29 mm (L*W*H)
Probe cable length: 1m
Probe Size: φ4mm*20mm

Features:
With a large and clear LCD display,better readability
Wide temperature measurement range
High performance and durable housing
Heating and cooling cannot be done at the same time
Temperature calibration function
Delay protection function
Lock function after short circuit of factory parameters
The upper and lower limits of the temperature can be set
It can be used for domestic refrigerators,water tanks,refrigerators,industrial chillers,bolier,steamers,industrial equipment and other temperature control systems
Equipped with temperature sensor probe

Package Type:

All goods will pack into cartons and wrapped full of waterproof tape before shipment .

We can accept customized package to meet different requirements :
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag .
2.Some fragile products such as the display screen can be packed in bubble bag .
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

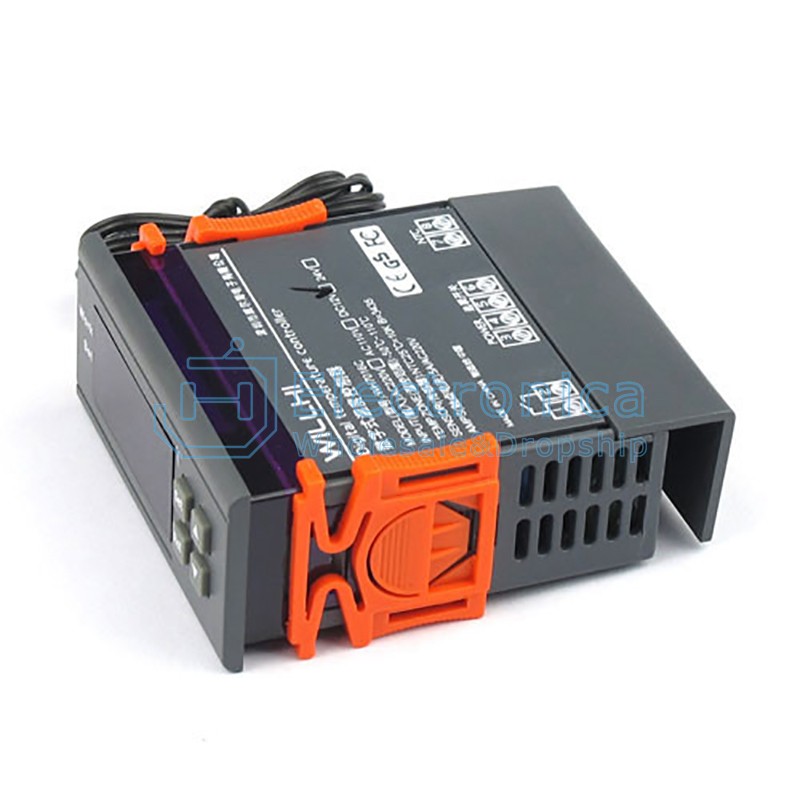

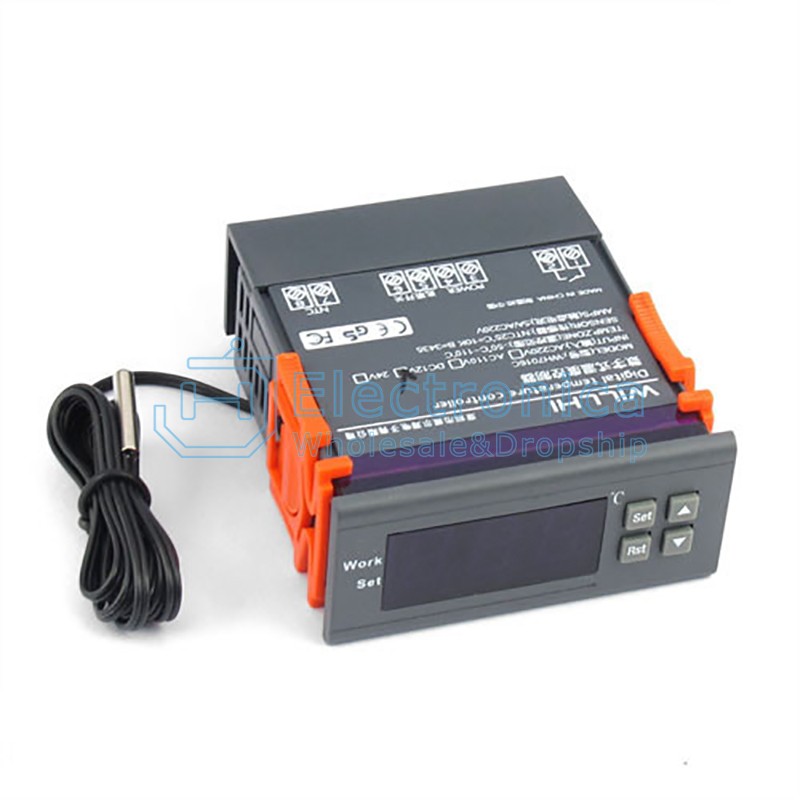

WH7016C Digital LCD Thermostat Regulator Temperature Controller With NTC Sensor

SKU : YXB545 Brand : JH Sourcing

Price : $ 8.22~8.53

100 +: $8.22~8.53500 +: $8.22~8.531000 +: $8.22~8.53
