1.80MHz high-speed SPI interface
2.Built-in hardware TCPIP protocol stack, users hardly need to master complex network protocol knowledge
3.Support up to 8 Socket connections
4.Support TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE protocols
5.Integrated data link layer,physical layer
6.Support power-down wake-up
7.Support high-speed serial peripheral interface(SPI mode 0~3)
8.Internal 32K bytes transceiver buffer
9.Embedded 10BaseT/100BaseTX Ethernet physical layer (PHY)
10.Support auto-negotiation (10/100-Based full duplex/half duplex)
11.Does not support IP fragmentation
12.3.3V working voltage,I/O signal port 5V withstand voltage
13. LED status display(full duplex/half duplex,network connection,network speed,activity status)
14.Ultra-small pin package, easy for embedded applications
15.Provide application routines for C
16. Power supply mode: 3.3V external power supply, current should be greater than 200mA

17. Control interface form: 3.3V TTL level, _SPI interface, 2*single row pin

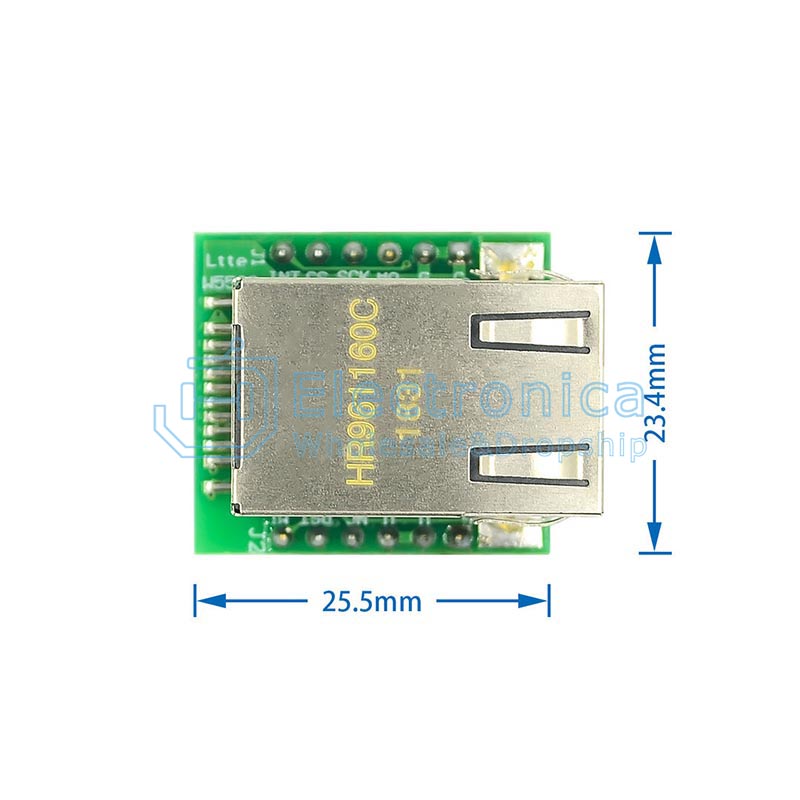

18.PCB size (MM): 23* 25 mm
19. Mechanical size (length * width * height): 28.5* 23* 24 mm

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment .

We can accept customized package to meet different requirements :
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag .
2.Some fragile products such as the display screen can be packed in bubble bag .
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.
