Description
Temperature range :-50-110℃
Temperature control mode: ON / OFF
Resolution: When temperature is 0.1℃, the resolution is -9.9~99.9, other temperature segment is 1℃
Control accuracy: 0.1 ℃
Hysteresis accuracy: 0.1℃
Refresh rate: 0.5S
High temperature protection: 0-110℃
Supply voltage: AC 110V-220V
Static current: ≤ 35MA, attract current ≤ 65MA
Output voltage: AC 110V-220V
Output power: 10A relay
Measurement input: NTC (10K 0.5%) Waterproof Sensor
Environmental requirements: -10 ~ 60 ℃ ,Humidity 20% -85%
Note: Transformer power module is 300MA
Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment .
We can accept customized package to meet different requirements :
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag .
2.Some fragile products such as the display screen can be packed in bubble bag .
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

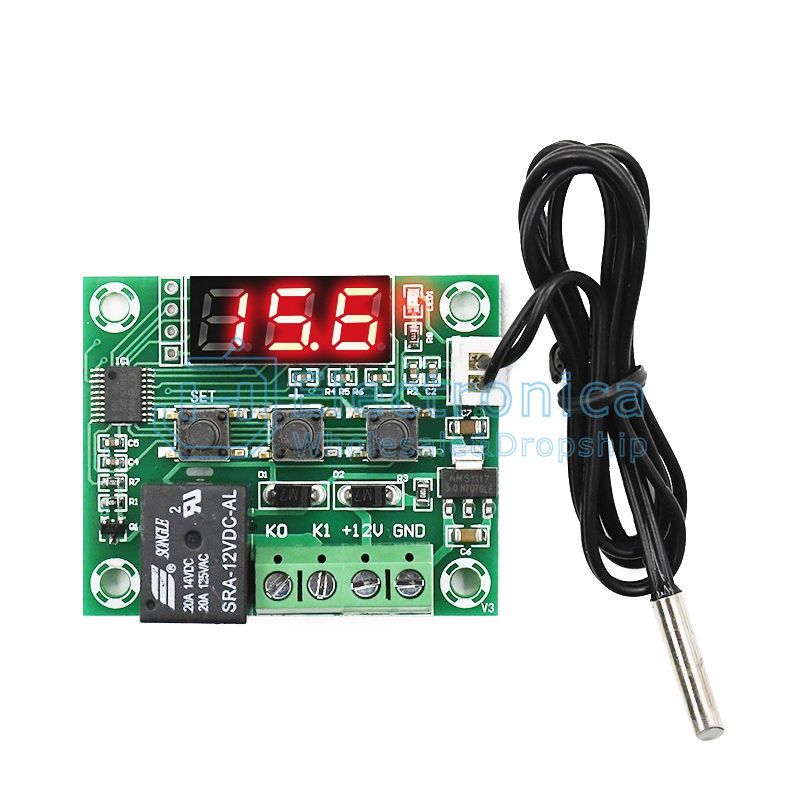

W1209 Digital Temperature Controller
SKU : YXB533 Brand : JH Sourcing
