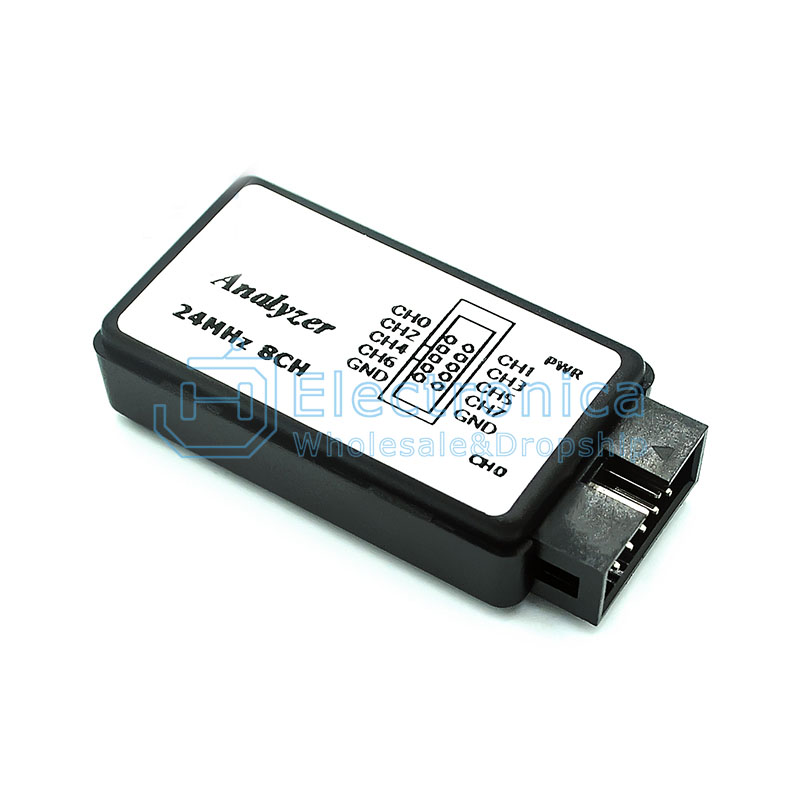

1. 8 channels input;
2. Logical light indication: a small light indicate CHO electrical level;
3. Input feature: 5PF, 100K Ohm;

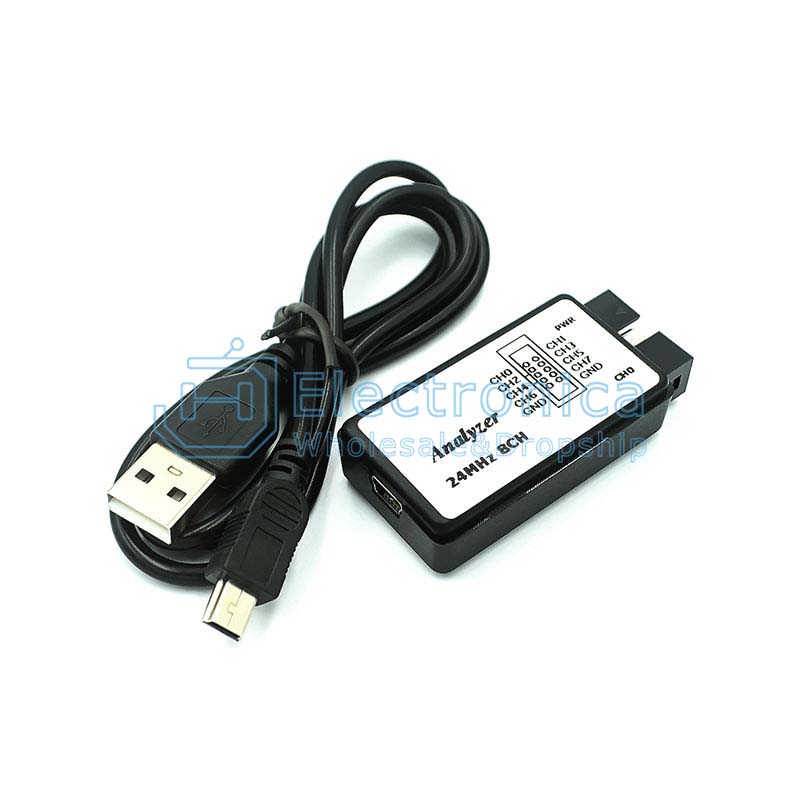

4. USB power supply;
5. Sampling rate can be set as below:
24MHz, 16MHz, 12MHz, 8MHz, 4MHz, 2MHz, 1MHz, 500KHz, 250KHz, 200KHz, 100KHz, 50KHz, 25KHz;
6. Data upload real time,the max of depth of collection is 10T, far from practical need;
7. Support WIN7(32&64), 2K, XP, LINUX

Voltage range:
Input voltage range:-0.5V to 5.25V
Input Low Voltage:-0.5V to 0.8V
Input high voltage:2.0V to 5.25V
Suitable for 5V,3.3V,2.5V,2.0V systems.1.8V can be used but not recommended.
Input impedance:1Mohm 10pF(typical,approximate)
Crystal:±20ppm,24MHz
Error/accuracy:pulse width measurement:±42ns(24MHz)
