Description

3840
Resonant Frequency (KHZ):25±5
Rated Voltage (Vrms):3
Operating Voltage (rms):1~10
Max. Current Consumption at Rated Voltage (mA):5
Capacitance at 1000Hz (Pf):110000±30%
Min Sound Output at 10cm at Rated Voltage (dB):85
Operating Temperature:-20~60℃
Storage Temperature:-30~70℃
Housing Material:ABS(Black)
Environmental Protection Regulation:ROHS
4140
Resonant Frequency (KHZ):25.0±5.0
Rated Voltage (Vp-p):5.0
Operating Voltage(Vp-p):3~16
Max. Current Consumption at Rated Voltage (mA):2.0
Capacitance at 1000Hz (Pf):10000.0±30%
Min Sound Output at 10cm at Rated Voltage (dB):≥85
Operating Temperature:-20~70℃
Storage Temperature:-30~80℃
Housing Material:ABS(Black)
5140
Resonant Frequency (KHZ):25.0±5.0
Rated Voltage (Vp-p):5.0
Operating Voltage(Vp-p):1~30
Max. Current Consumption at Rated Voltage (mA):2.0
Capacitance at 1000Hz (Pf):100000±30%
Min Sound Output at 10cm at Rated Voltage (dB):85
Operating Temperature:-20~70℃
Storage Temperature:-30~80℃
Housing Material:ABS(Black)
Environmental Protection Regulation:ROHS

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

Ultrasonic Buzzer with Eared

SKU : YXC1406 Brand :

Price : $ 0.27~0.60

100 +: $0.27~0.60500 +: $0.27~0.601000 +: $0.27~0.60

Style：

3840 adhesive film
3840 paper film

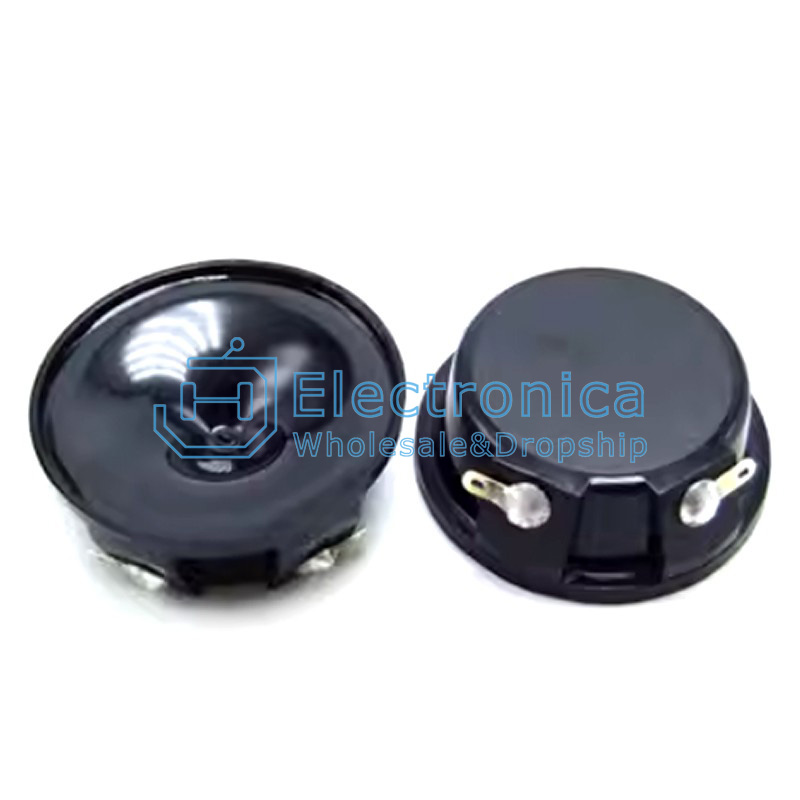

4140 adhesive film

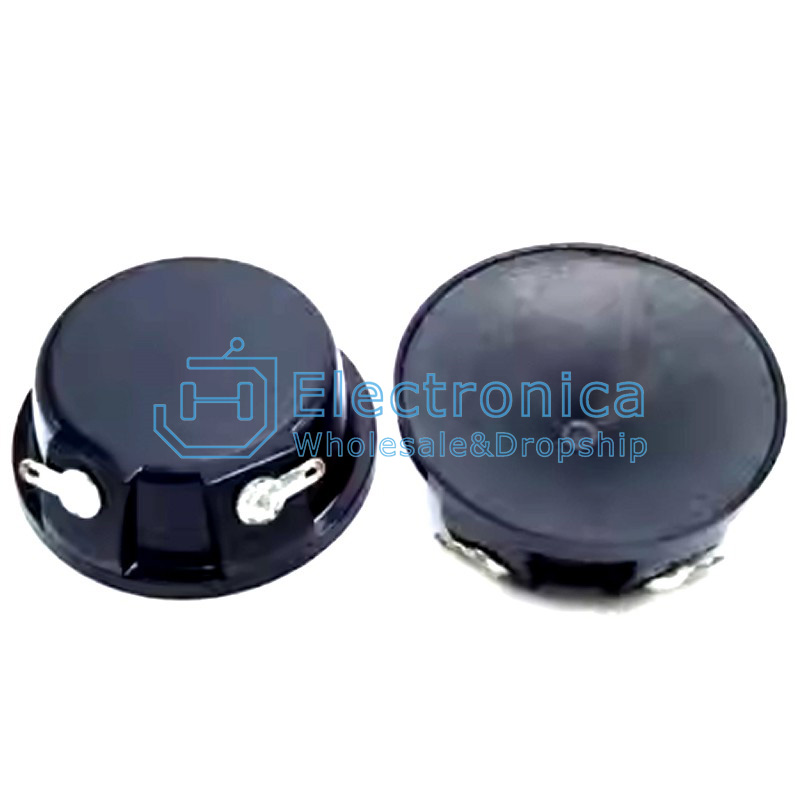

4140 paper film

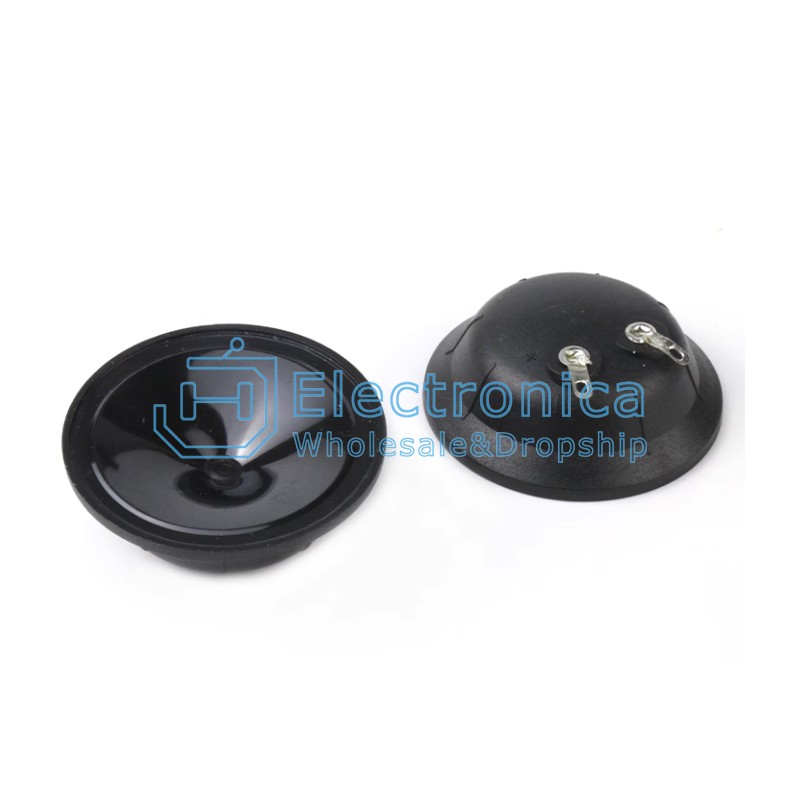

5140 adhesive film

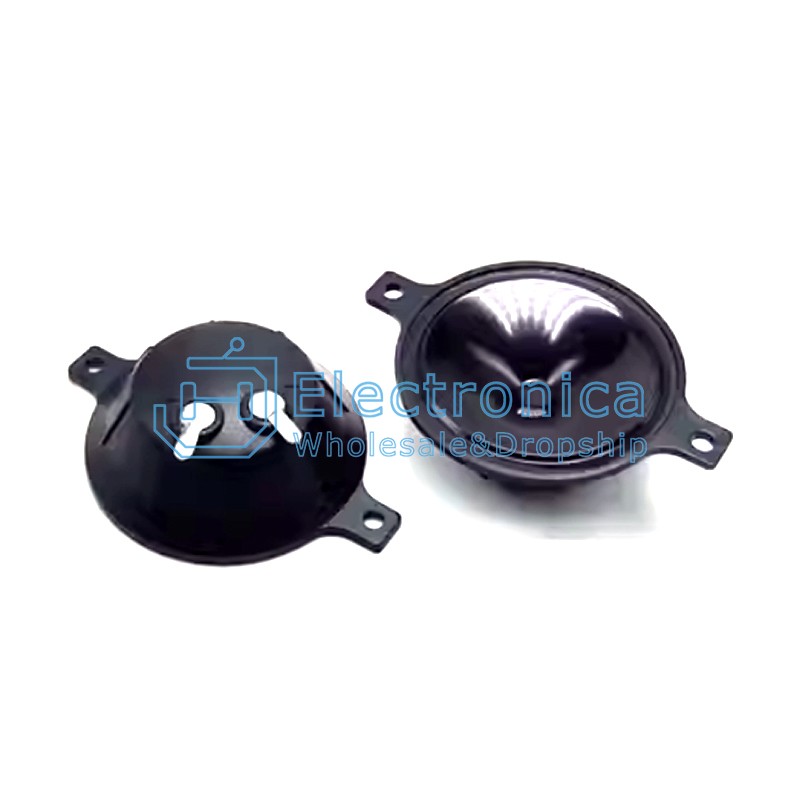

5140 adhesive film with eared
