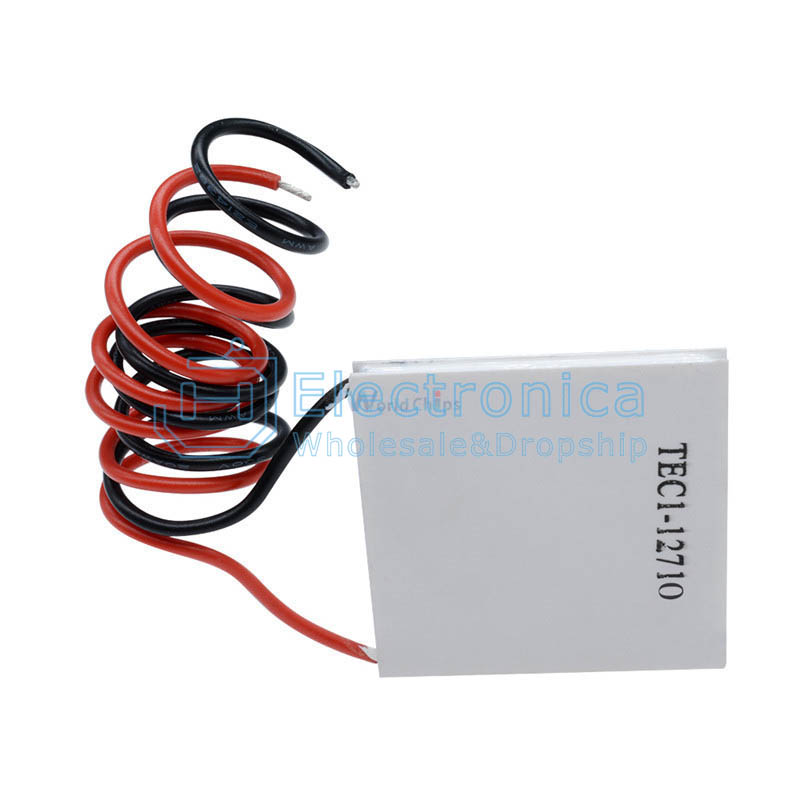

Dimensions:40*40*3.4mm
Wire specification:lead length 300±5mm RV standard wire single end 5mm tin-plated
Internal resistance:1.2~1.5Ω(ambient temperature 23±1℃,1kHZ Ac test)
Large temperature difference:△Tmax(Qc=0) above 60℃.
Working current: Imax=10A(when 15Vmax voltage starts)
Rated voltage:DC12V(Vmax: 15.5V)
Cooling power:Qcmax 92W
Assembly pressure:85N/cm2
Working environment:temperature range -55℃～83℃(too high ambient temperature will directly affect the cooling efficiency)
Encapsulation process:standard 704 silicone rubber seal all around
Storage conditions:-40~60℃

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment .

We can accept customized package to meet different requirements :
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag .
2.Some fragile products such as the display screen can be packed in bubble bag .
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.
