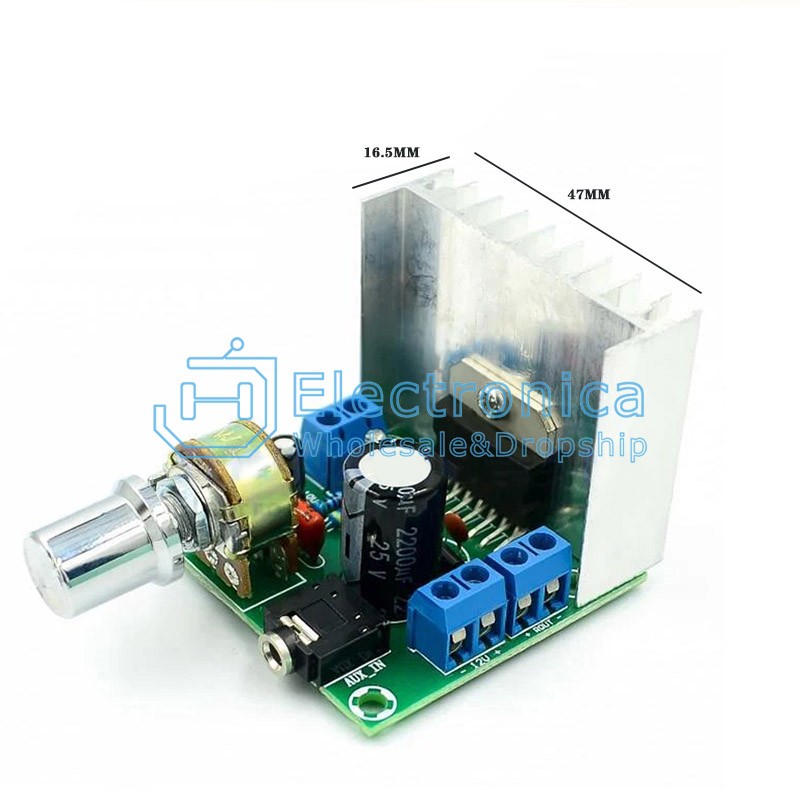

Board size:4.8×4.8cm

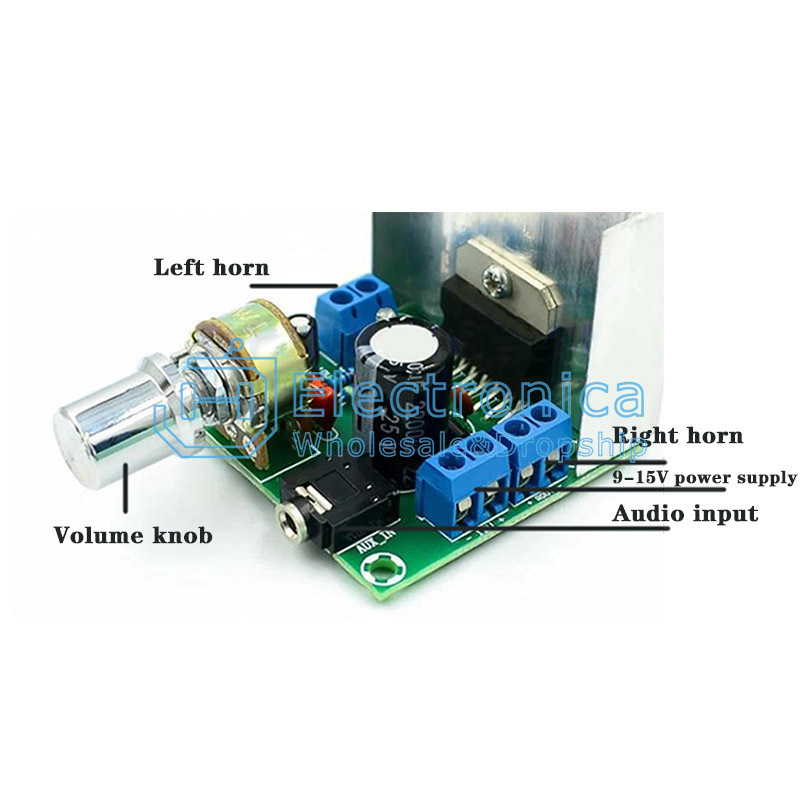

Supply voltage:DC 9-15V,AC 9-12V,recommended DC voltage 12V,current 2A or more
Power:15W+15W
Output impedance:4-8Ω
The working efficiency of this power amplifier board is as high as 90%,very power saving,with 12V motorcycle battery power supply can play continuously for more than 5 hours,while with power indicator and power reverse protection,power polarity is reversed without burning chip.

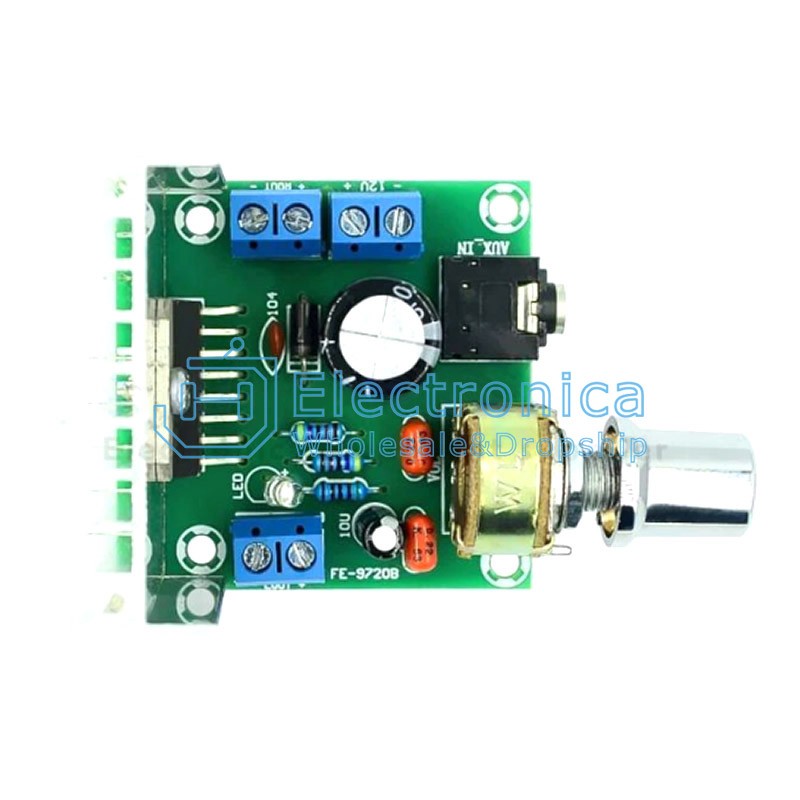

Package included:
PCB board*1pc
Heatsink*1pc
M3*6 screw*1pc
TDA7297*1pc
50K double potentiometer*1pc
Potentiometer cap*1pc
3.5 Audio block*1pc
KF301-2P terminal block*3pcs
10UF/25V electrolytic capacitor*1pc
3300UF/25V electrolytic capacitor*1pc
224 monolithic capacitor*2pcs
104 monolithic capacitor*1pc
1N4007*1pc
47K resistance*2pcs
4.7K resistor*1pc
3mm blue LED*1pc
